Miss one piece, and the whole opening can fail an accessibility review even if the door itself looks compliant on paper. That's a costly mistake to catch during final inspection or, worse, after a complaint.
This guide is for architects, distributors, contractors, and facility managers who need accurate specifications before doors ship, not after. We'll cover core measurements, hardware and operation, existing-building considerations, and a practical specification workflow. Always confirm final project details against the current official standards and your authority having jurisdiction (AHJ).
Key Takeaways
- Clear opening, clearance, thresholds, hardware, force, and closing speed determine compliance, not door width alone.
- Nominal door size is not the same as required clear opening; review the full frame-and-door assembly.
- Automatic operators help accessibility but are not required for every covered doorway.
- Rely on the 2010 ADA Standards, U.S. Access Board guidance, and your AHJ instead of informal checklists.
What Are the ADA Requirements for Doors?
The ADA Standards for Accessible Design govern doors in public accommodations and commercial facilities. Depending on the building, you may also layer in the Fair Housing Act, Section 504, or locally adopted building codes.
This article is educational, not legal or code advice. Always cite the current 2010 ADA Standards, specifically Chapter 4, for exact requirement language before publication or fabrication.
What applies to your project depends on several factors:
- Whether the work is new construction, an alteration, or an existing facility
- The entrance and door type (swinging, sliding, folding)
- Whether the opening sits along a required accessible route

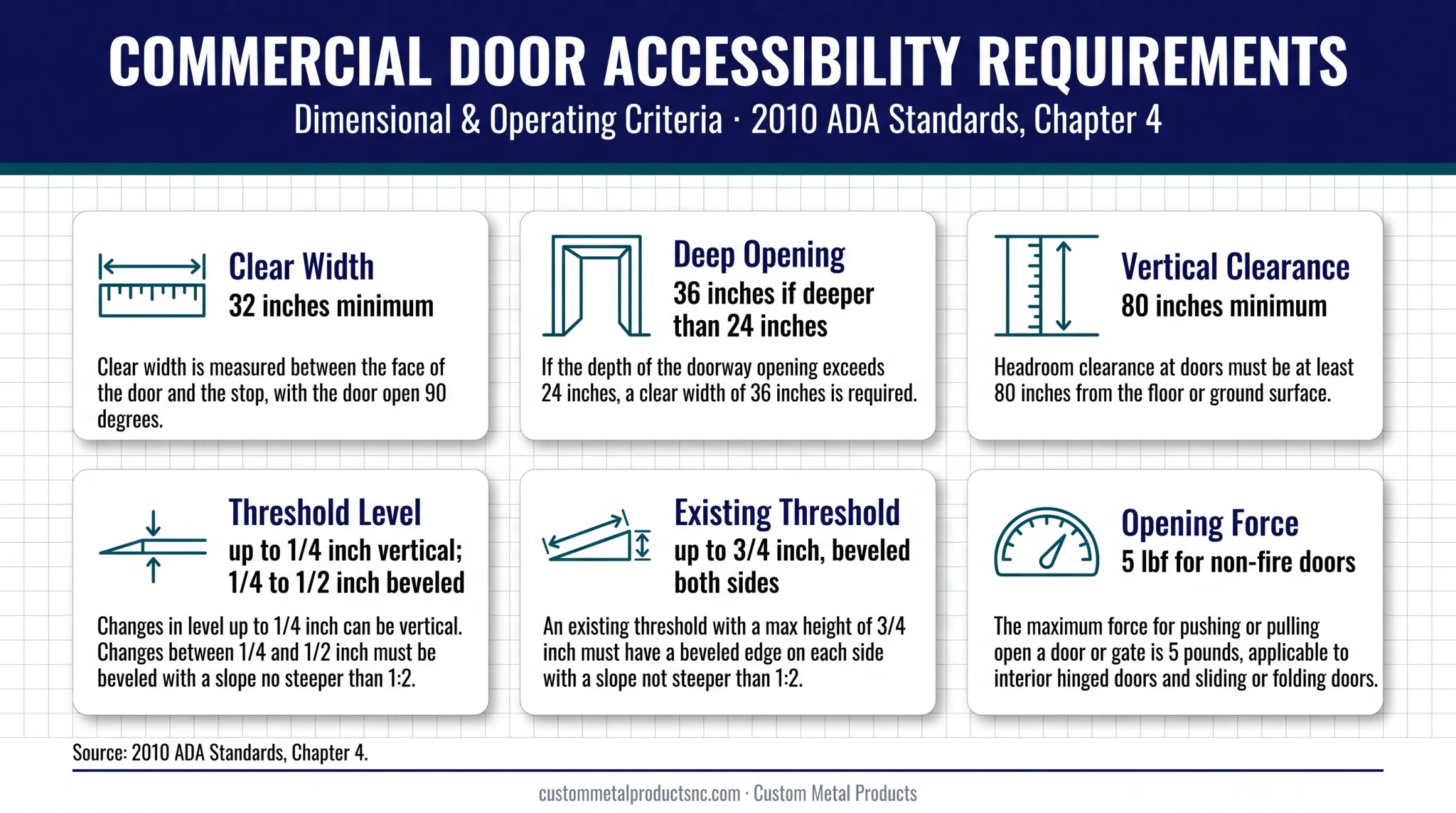

Clear Opening Width
Clear width is measured with the door open 90 degrees, from the face of the door to the stop — not the nominal slab or frame dimension listed in a door schedule. The minimum is 32 inches, and openings deeper than 24 inches require 36 inches of clear width. For double-leaf doors, at least one active leaf must meet this minimum.
Door Height and Threshold
Vertical clearance along the accessible route must be at least 80 inches. Thresholds are limited too: changes in level up to 1/4 inch can be vertical, while anything between 1/4 and 1/2 inch needs a bevel.
Existing or altered thresholds have a narrow exception allowing up to 3/4 inch if beveled on both sides. Verify the exact figures against the current standard before you finalize a spec. These details get missed often.
Maneuvering Clearance
A wheelchair user needs level space to approach the door, reach the hardware, pull or push it open, and clear the swing.
Requirements differ by approach side (pull vs. push) and by front, hinge-side, or latch-side approach. The dimensional tables in Access Board Chapter 4 vary by configuration, so pull the diagram for your specific approach type instead of estimating from memory.
Operating Requirements
Hardware must be operable with one hand, without tight grasping, pinching, or twisting the wrist. Beyond that:
- Force to activate hardware (locks, latches, pulls) is capped at 5 lbf
- Force to push or pull open non-fire interior hinged, sliding, or folding doors is also capped at 5 lbf
- Fire-rated doors follow the minimum force allowed by the applicable authority — there's no blanket numeric ADA cap for those assemblies
Door weight, seals, weather stripping, and closer adjustment all affect whether a finished opening actually hits that 5 lbf target in the field.
The Doorway as Part of an Accessible Route
A technically compliant door can still fail if the surrounding route doesn't cooperate. Inspect the full opening for:
- Level changes at or near the threshold
- Slick or uneven flooring
- Loose mats in the approach path
- Projecting hardware or trim near the swing path
Route conditions and the door work as one accessible opening, not separate checklist items.
How Door Components Affect Accessibility
The door slab, frame, threshold, hardware, closer, and protective accessories all have to be coordinated as one assembly. A compliant door slab paired with the wrong hardware set, or a frame that wasn't reinforced for it, won't pass.
Door Hardware
Lever-operated mechanisms, push-type hardware, and U-shaped pulls generally satisfy the one-hand, no-twist requirement. Round knobs don't, regardless of how well the rest of the opening performs.
Mounting height matters too:
- Operable hardware belongs 34–48 inches above the finished floor
- Locks, exit devices, pulls, and panic hardware all need to be coordinated to that same range
- Adjacent walls or trim shouldn't obstruct reach to the hardware
Reinforcement has to match the hardware:
- Full-mortise hinges and pivots: typically 7-gauge
- Lock faces and flush bolts: 14-gauge
- Other surface-mounted hardware: 16-gauge
Fully templated mortised hardware usually ships with factory reinforcement. Surface-mounted or non-templated hardware still needs reinforcing plates, with drilling and tapping handled separately.
Closing Speed and Opening Force
Two different timing tests apply, and they're easy to mix up:
- Door closers must take at least 5 seconds to move from 90 degrees open to 12 degrees from the latch
- Spring hinges must take at least 1.5 seconds from 70 degrees open to closed
Field conditions push against these numbers constantly. Door weight, hinge friction, weatherstripping, and frame alignment can throw off a closer that tested fine at the factory. Wind and stack-effect air pressure add more variables on site. Test the finished, installed assembly, not just the spec sheet.

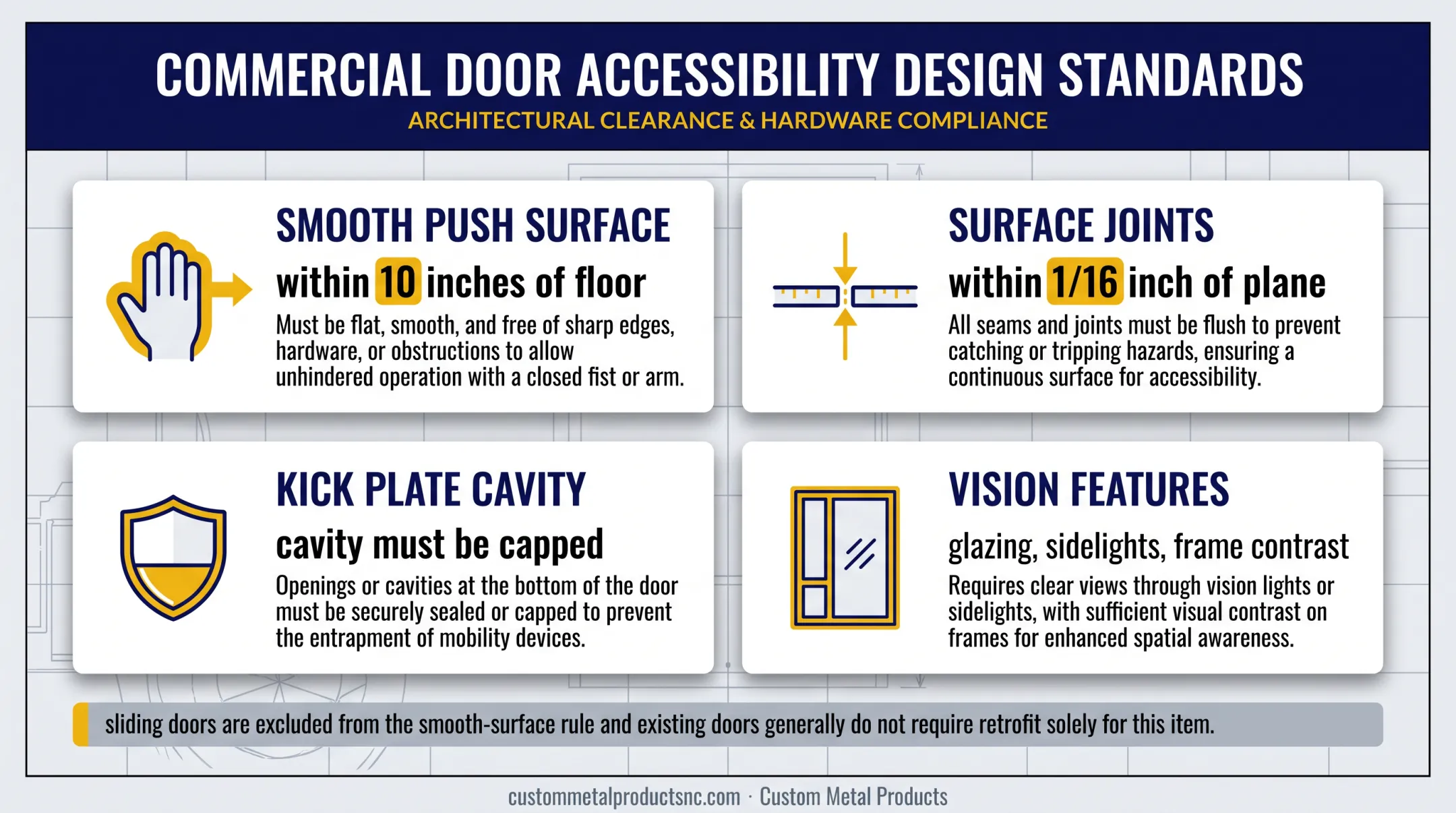

Smooth Surfaces, Projections, and Vision Features
Beyond closers and hardware, the face of the door matters for cane and wheelchair clearance. Swinging doors need a smooth push-side surface within 10 inches of the floor, with joints kept within 1/16 inch of plane.
Kick plates are fine, but any cavity behind one has to be capped. An open cavity behind a plate is a common miss. Sliding doors are excluded from this rule, and existing doors without a smooth surface generally don't need retrofitting solely for this item.
Glazing, sidelights, and contrast around the frame also affect how safely someone navigates the opening. Treat those as design best practices on top of the code minimums, not substitutes for them.
Door Types and Automatic Operators
Swinging, sliding, and folding doors each carry their own clear-width, maneuvering-clearance, and threshold conditions (sliding and folding doors, for example, use a different maneuvering table than swinging doors). Verify each door type against its own applicable section rather than assuming the numbers carry over.
Automatic operators can meaningfully improve accessibility, but they don't replace the underlying requirements. Clear width, threshold height, maneuvering space, sensor placement, and safe opening/closing behavior all still need verification on an automatic door.
Applying ADA Door Requirements to New and Existing Buildings
New construction and alterations are held to a different standard than existing facilities left untouched.
New Construction and Alterations
New and altered work generally has to incorporate accessibility to the extent the current standards require. It's not an optional add-on. Door schedules, hardware sets, accessible routes, and fire-rated assemblies all need to be coordinated before fabrication, not adjusted after doors arrive.
One caution: alterations can't reduce existing accessibility. If your scope touches an already-accessible opening, review it with your code official before changing anything.
Existing Facilities and Barrier Removal
Existing facilities carry a "readily achievable" barrier-removal duty under Title III, meaning barriers should come out where doing so isn't unusually difficult or costly. According to DOJ's Title III primer, priority order runs:
- Entry from sidewalks, parking, and transit
- Access to goods and services
- Restrooms
- Other remaining barriers
Common retrofit issues include:
- High thresholds
- Tight maneuvering space
- Excessive opening force
- Outdated hardware
A threshold ramp, hardware adjustment, or replacement frame can solve some of these. The right fix still depends on level changes, drainage, structure, and local code.
Older Buildings and "Grandfathering"
An older building isn't automatically exempt. The 1991 Standards safe harbor applies element by element, not building-wide.
A doorway that met the 1991 Standards and hasn't been altered since March 15, 2012, may not need updating solely for a changed 2010 spec. Every other element in that same building is still evaluated on its own. Verify current applicability with DOJ guidance rather than assuming an entire structure is covered.
Commercial and Institutional Applications
Offices, retail, schools, healthcare, hospitality, and industrial facilities with public or employee access all fall under this guidance, but not identically. These opening types often need separate review based on use and occupancy classification:
- Entrance selection
- Tenant spaces
- Secure doors
- Egress doors
- Service entrances

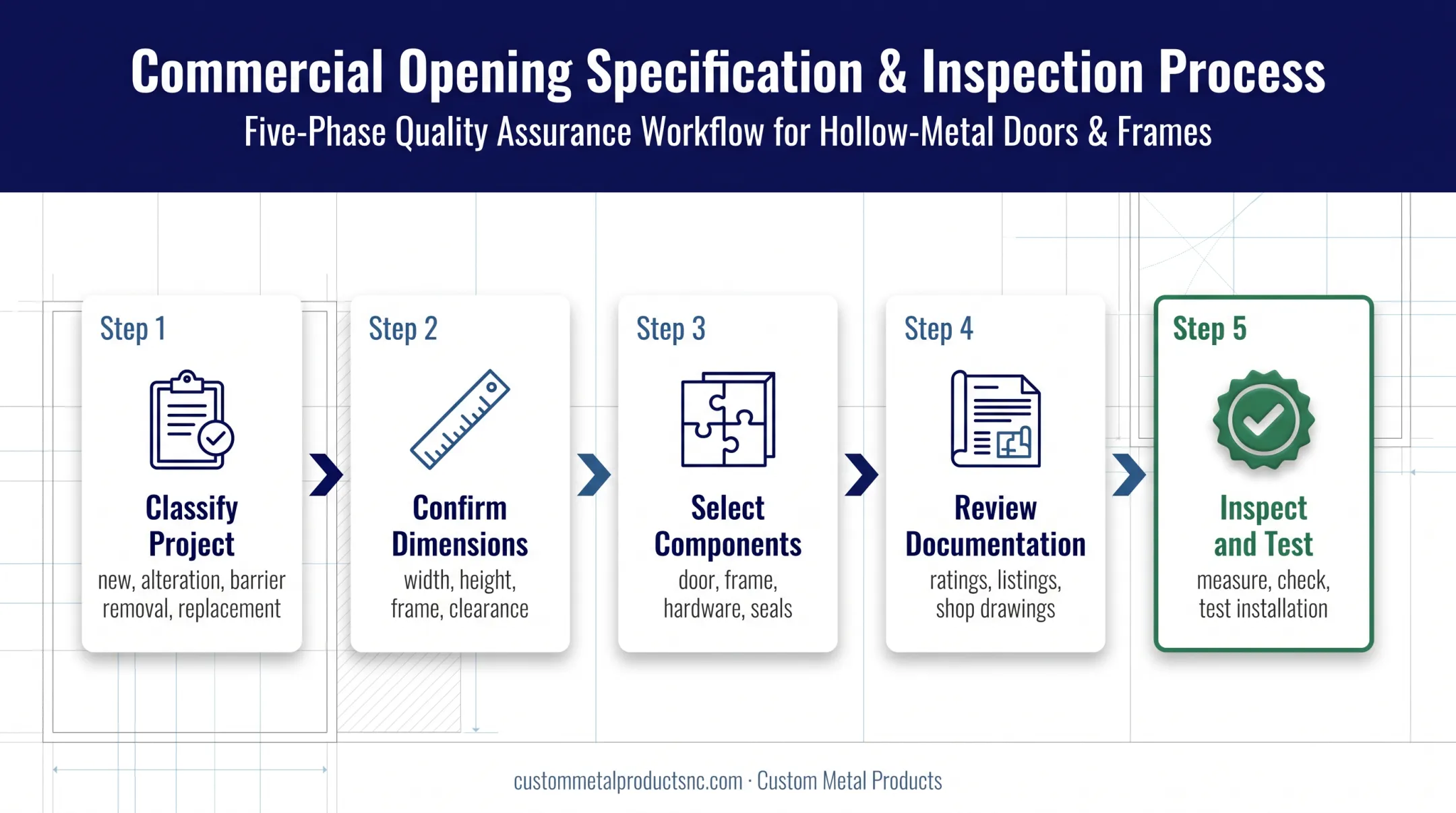

How to Specify and Verify an ADA-Compliant Door
Reducing specification errors before ordering saves rework, delays, and failed inspections. Here's a practical workflow.
- Classify the project. Identify new construction, alteration, barrier removal, or replacement. Document occupancy, accessible-route requirements, fire-rating needs, and your AHJ.
- Confirm opening dimensions. Record required clear width and height, frame profile, wall thickness, threshold condition, swing direction, and both pull-side and push-side maneuvering clearances.
- Select compatible components. Coordinate the door, frame, hinges, closer, latch/lock, exit device, pull, kick plate, glazing, and seals. Verify hardware preparations and reinforcement match the intended hardware.
- Review performance documentation. Request manufacturer data, fire-rating labels, hardware listings, shop drawings, and installation instructions. A manufacturer's "ADA-ready" label isn't a substitute for project-level verification.
- Inspect and test after installation. Measure clear opening and threshold, confirm hardware height, check maneuvering space and floor slope, and test opening force and closing behavior before final inspection.
Coordination like this is exactly where distributors, contractors, and architects lean on a manufacturer for detail-level support. Custom Metal Products works with project teams on door and frame configurations, hardware preparations, and project-specific fabrication, including custom and stock welded frames and UL-labeled fire-rated hollow metal doors and frames.
Quick-ship programs help when timelines are tight. Still, a manufacturer's product alone doesn't guarantee compliance; the full opening needs the verification steps above.
Fire-rated openings follow the same verification path, with a few extra checks. The architect determines and schedules which doors need labels, and should be notified before fabrication if a specified rated door or frame can't qualify due to design or hardware conflicts. Frames are tagged as directed in architectural drawings, and edge clearances between doors and frames are held to 3/16 inch at heads and jambs so the assembly performs as tested.
Conclusion
An ADA-compliant door is a coordinated opening — measured, specified, installed, and tested as part of an accessible route, not just a single component checked off a list.
Use current official ADA resources, and loop in your design professional, code official, AHJ, or accessibility specialist whenever requirements overlap or an existing building adds a wrinkle.
If your next project needs custom hollow metal doors and frames matched to specific dimensions, hardware, fire-rating, and schedule requirements, talk to the team at Custom Metal Products.
Frequently Asked Questions
How much does an ADA-compliant door cost?
Cost depends on material, size, frame type, hardware, closer or automatic operator, fire-rating, site conditions, retrofit scope, and quantity. Get a project-specific quote rather than relying on a generic price range.
How long does an ADA door have to stay open?
There's no single "hold-open" time; the standards regulate closing speed instead. Door closers need at least 5 seconds from 90 degrees to 12 degrees from latch; spring hinges need at least 1.5 seconds from 70 degrees to closed.
What door width is required for ADA-compliant doors?
The minimum clear opening is 32 inches, measured with the door open 90 degrees from the face of the door to the stop. Don't substitute the nominal slab or frame width listed on a door schedule for this measurement.
What are the ADA requirements for doors?
Requirements cover clear width and height, maneuvering clearance, thresholds, hardware operation, opening force, closing speed, smooth push-side surfaces, and the surrounding accessible route. See the current 2010 ADA Standards for exact figures.
What are the ADA requirements for 2026?
Verify current federal requirements through ADA.gov and the U.S. Access Board before you specify. As of this writing, no finalized replacement to the 2010 Standards' door provisions has been confirmed. Distinguish enforceable federal rules from any proposed changes or local code additions.
What are two types of door pulls that can be considered accessible?
U-shaped pulls and lever-operated hardware are both commonly accepted options. Either way, the installed hardware still has to be operable with one hand, without tight grasping, pinching, or wrist twisting.
