Introduction
A fire door label looks small. Its consequences are not. Many architects, distributors, and inspectors glance at that stamped or embossed mark and move on, treating it as a simple product sticker.
That label is the only visible proof that a door and frame were tested, listed, and manufactured to a documented fire-protection standard. Under the 2024 International Building Code, fire door assemblies must carry labels from an approved agency, permanently applied, and compliant with NFPA 80.
Miss that detail, or misread it, and an opening that looks fine on a walk-through can fail inspection, void a warranty, or perform poorly in a fire.
This article covers what fire-rated door labels identify, how hourly ratings are expressed and limited, how door and frame ratings work with the surrounding wall and hardware, and what to do when a label is missing, damaged, or unclear.
Key Takeaways
- A fire door label confirms a tested, listed assembly and names only the manufacturer, certifier, and rating.
- Door and frame ratings must match the wall, hardware, and glazing; one labeled part does not certify the opening.
- Rating terms and label formats vary by code edition, listing agency, and manufacturer.
- Never remove, paint over, or guess at a damaged label; contact the manufacturer, listing agency, or AHJ.
What Fire-Rated Door Labels and Ratings Represent
A fire-rated door label is a manufacturer-applied mark showing the product came out of a factory covered by an approved listing or certification program. It is documented evidence—not a warranty or a marketing claim—that a specific door or frame configuration was built and tested to a recognized standard, typically under UL or another agency running ongoing factory inspections.
What the label shows:
- Certification mark from the listing agency (UL, Intertek/Warnock Hersey, or similar)
- Manufacturer identity or a traceable code
- Fire-protection rating, expressed in hours or minutes
- Frame or door type and, where required, a temperature-rise classification
- Serial number or permanent issue number for traceability
Skip the word "fireproof." No door is fireproof. What the label documents is a fire-protection rating, meaning the assembly resisted fire exposure under laboratory test conditions for a defined period. That's a precise, testable claim, and it's the terminology that belongs in specifications and inspection reports.
Location matters too. On hollow metal doors, labels typically sit on the hinge edge or top edge. On frames, check the rabbet, usually between the top and middle hinge. Custom Metal Products labels each door and frame per the architectural drawings and NAAMM/HMMA UL procedures for its UL-labeled fire-rated hollow metal openings.
A label that's illegible doesn't do its job. NFPA guidance notes that embossed lettering may stay legible under a coat of paint, but painting over a label isn't recommended, and printed or non-embossed marks generally shouldn't be painted at all. If a label is scratched, corroded, or painted past recognition, treat it as a question mark, not a rating.
Factors That Influence Label Meaning in Real-World Applications
Two doors can look identical and carry completely different ratings, because a label certifies one tested configuration. It doesn't account for what happens after installation.
Several things shift what a label actually permits:
- Product and hardware match — the listing covers a specific door, frame, hinge, closer, and latch combination, not whatever hardware a contractor prefers.
- Wall assembly and opening location — a rated door in the wrong wall type fails code, regardless of hour rating.
- Field modifications — cutting a new lite, adding hardware, or drilling outside the original listing can void the assembly. Some factory-prepared alterations are allowed; most others need written authorization from the listing agency.
- Environmental wear — corrosion, impact damage, and repeated repainting hurt label legibility and the door's tested performance.
Confirm the rating by matching listing documentation to the installed condition—not by glancing at the label alone.
Range of Fire-Door Ratings
Fire-protection ratings aren't a menu where you pick the biggest number for extra margin. The correct rating comes from the opening's code classification, the wall it sits in, and the listing covering that specific door and frame combination.
Nominal Fire-Protection Ratings
US fire door ratings are expressed two ways: in minutes for shorter durations, in hours for longer ones. Representative hollow metal door categories include 3-hour, 1-1/2-hour, 1-hour, 3/4-hour, and 1/3-hour assemblies.
That last category is marked "NHS" for No Hose Stream, meaning it skipped the hose-stream portion of the standard fire test.
Take a 20-minute door as an example. Specified 20-minute assemblies in rated corridor and smoke-barrier walls can be tested to NFPA 252 or UL 10C without the hose-stream requirement under the applicable IBC provisions.
That doesn't mean every smoke-partition door needs this rating; smoke partitions often don't require a fire-protection rating at all. Permitted use always traces back to the adopted code table, not a generic assumption.
The door's fire-protection rating, the wall's fire-resistance rating, and the complete opening's rating are three separate numbers. A 90-minute door can sit in a 2-hour wall under the applicable table, but the wall rating never automatically becomes the door's rating, or vice versa.
Allowable Tolerance and Boundary Limits
A label documents one tested configuration. It doesn't authorize open-ended changes to size, lite dimensions, hardware, frame type, or wall construction.
Manufacturer listing data shows how tight these limits get:
- Contra-swing frames are capped at a 1-1/2 hour rating.
- Double-egress door pairs, at 1-3/4 inches thick, can reach up to 3 hours, but only with a frame specifically listed for double-egress use.
- Labeled glazing in transom, sidelight, and window assemblies is capped at 4,608 square inches, 96 inches wide, and 48 inches tall across all rating levels.
Always verify the applicable IBC provisions, NFPA 80 requirements, and the manufacturer's own listing documentation for the specific product and application. A rating isn't a blanket performance guarantee under every exposure condition; it holds only within the tested and listed boundaries.
Safe Operating Margin
Code and listing requirements build a boundary around the entire opening, not just the door slab. That boundary covers hardware, glazing, clearances, and closing and latching behavior.

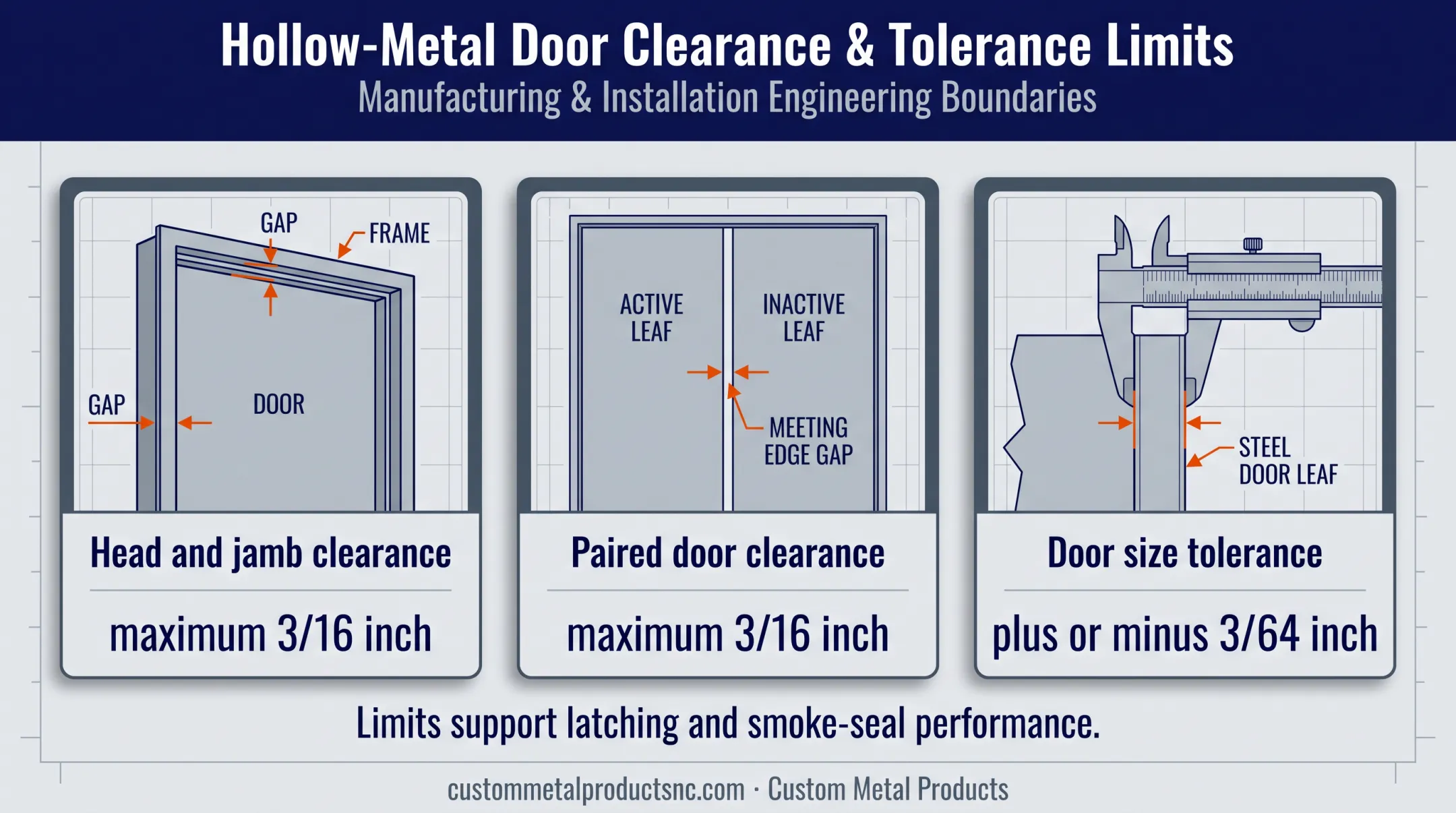

Door-to-frame clearances at heads and jambs, and between paired doors, generally can't exceed 3/16 inch. Manufacturing tolerances run tight too, typically ±3/64 inch on door width and height. These numbers exist because gaps that are too wide interfere with latching and smoke seals, undermining the performance the rating certifies.
Treating a nominal rating as interchangeable with a higher or lower one causes problems during plan review, inspection, and replacement alike. If a project condition looks unusual, confirm it with the design professional, manufacturer, listing agency, or AHJ before fabrication starts, not after the door ships.
Key Technical Properties of Fire-Rated Door Labels and Ratings
Not every label is equally useful in the field. What makes one worth trusting comes down to three field-critical properties: legibility and correct location, traceability back to the listed configuration, and compatibility with the complete opening.
Property 1: Label Legibility and Location
Labels need to sit where the listing permits and stay visible enough for an inspector to actually read them. On hollow metal products, that's usually the hinge edge of the door or the frame rabbet.
Not all labels behave the same way when painted:
- Embossed metal labels (stamped in or welded on as a plate) may stay legible under a thin coat of paint
- Printed or non-embossed labels generally shouldn't be painted at all
Check the specific product's requirements before signing off on a painted door.
Property 2: Traceability and Certification Information
Serial numbers, permanent issue numbers, and certification marks exist so a door or frame can be traced back to its original listed configuration. This matters most when a replacement, modification, or damage claim comes up years later.
Good practice during submittal review, installation, and inspection:
- Photograph every label before doors go into service.
- Record the certification mark, manufacturer ID, and rating in closeout documents.
- Keep this record with the project file, not scattered across individual inboxes.

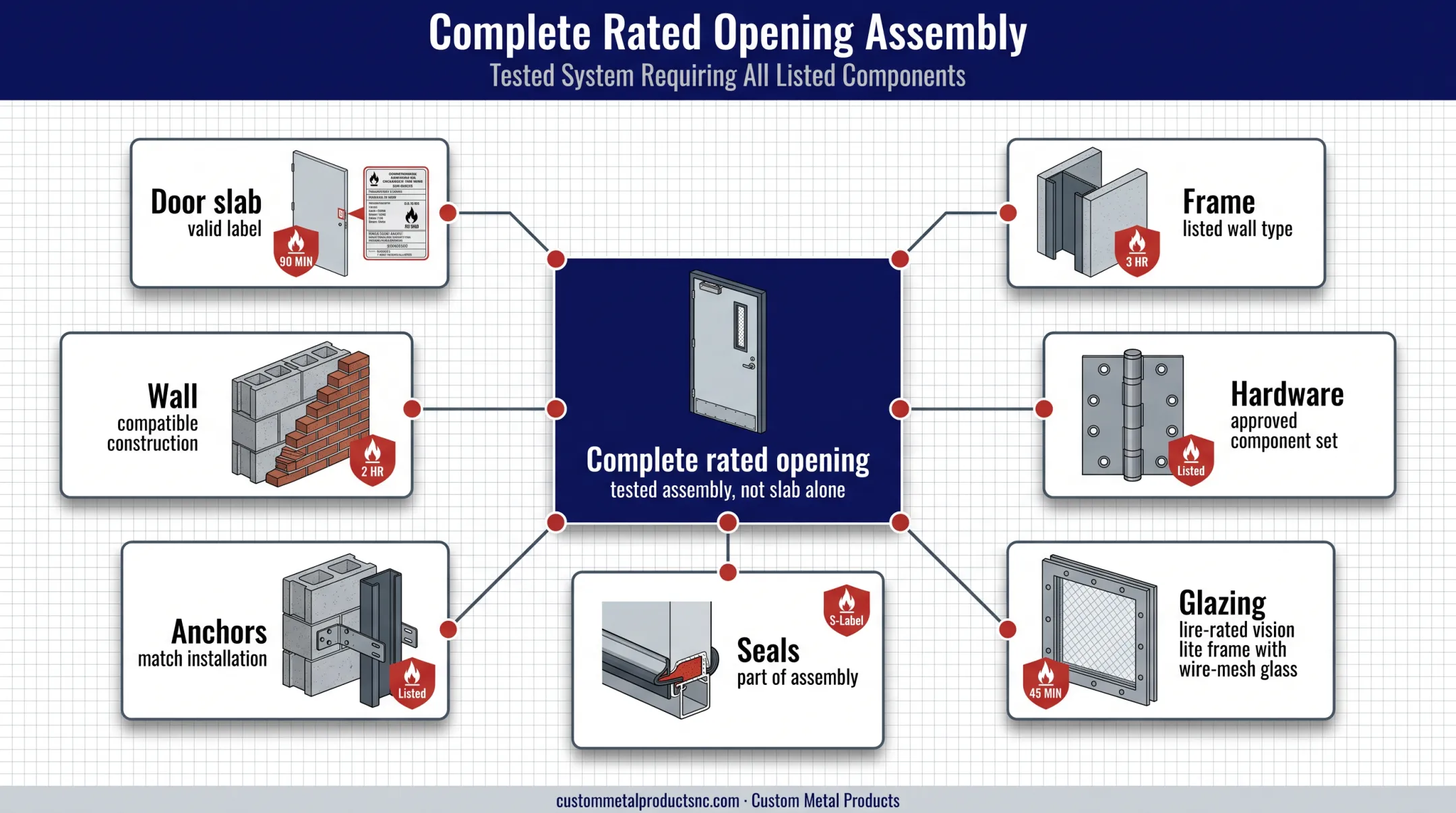

Property 3: Compatibility With the Complete Opening
A labeled door doesn't operate alone. It's rated as part of an assembly that includes the frame, hinges, closer, latch, exit hardware, glazing, seals, anchors, and the wall itself.
Here's a common scenario: a door arrives with a fully valid, legible label, and the slab checks out completely. But the frame anchors don't match the listed wall type, or someone installed a closer that isn't part of the tested hardware set. The door's label is still accurate—and the opening still fails inspection. The label validates one component, not the installation choices around it.
How Fire-Rated Doors Are Specified, Measured, and Validated
The label and rating serve two jobs: design documentation before installation, and a field-verification tool afterward. Keep manufacturer data, test evidence, listing records, and code requirements separated. They answer different questions.
Specification and Documentation
A door schedule or submittal should confirm, at minimum:
- Door and frame type, rating, size, and material
- Wall construction the opening sits in
- Hardware, glazing, anchors, clearances, and seals
- Finish and installation requirements
Specification writers should reference the actual adopted code provisions, NFPA 80 requirements, and the specific listing or certification documentation, not a generic line like "fire-rated door."
When project risk or inspection stakes are high, require label photographs, product data sheets, shop drawings, and traceable documentation as part of the submittal package. Custom Metal Products, for instance, provides full submittal packages with schedule sheets, construction-series specs, and special details tied to each project's approved drawings.
Measurement and Verification Methods

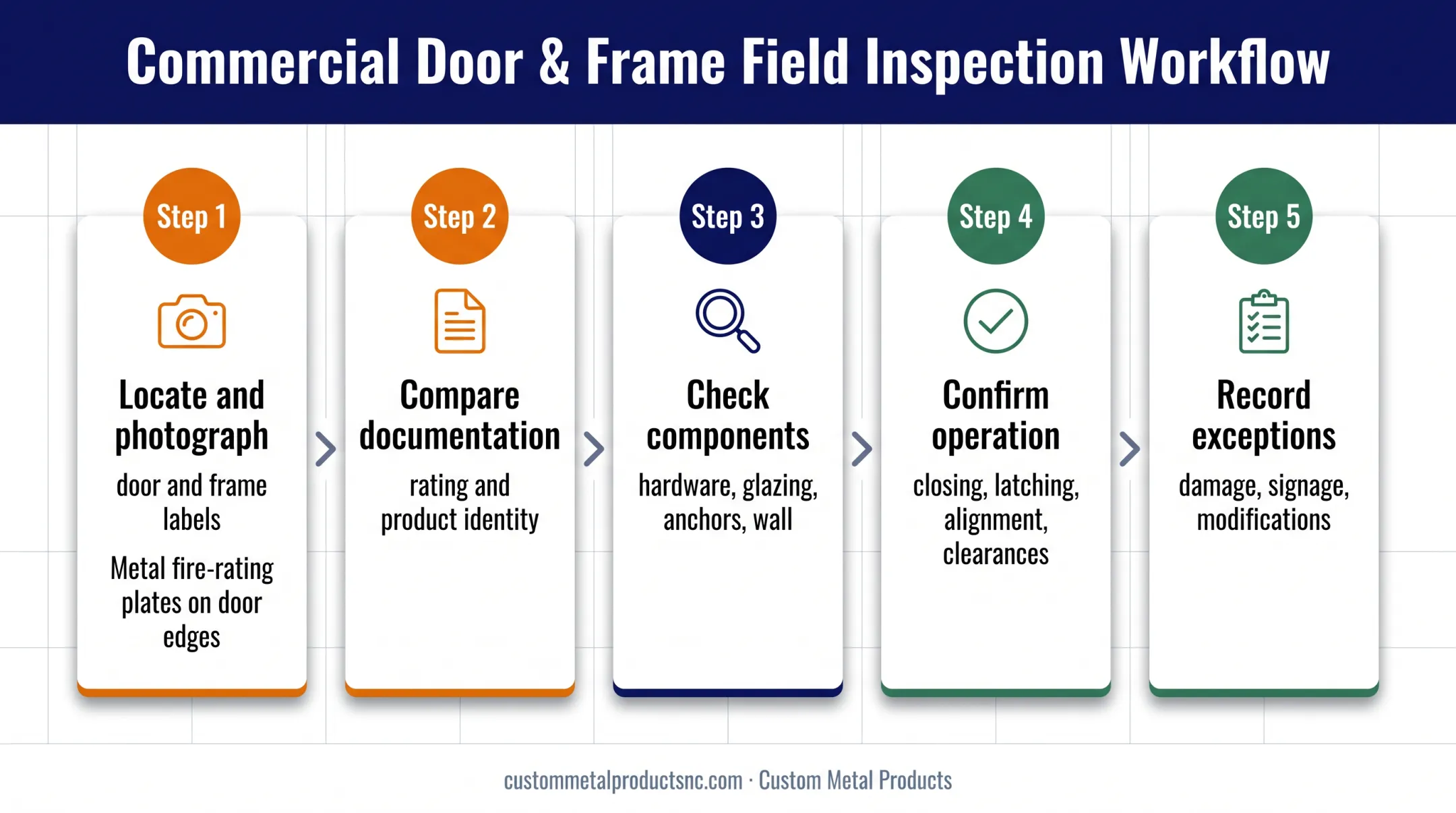

A practical field workflow looks like this:
- Locate the door and frame labels and photograph the markings.
- Compare the rating and product identity against the approved submittals.
- Check the surrounding components: hardware, glazing, anchors, wall type.
- Confirm self-closing and latching function, alignment, and clearances.
- Note any damage, missing signage, or field modifications outside the listing.
Inspectors shouldn't stop at reading the label. NFPA 80 calls for inspection and testing immediately after installation and at least annually after that, covering roughly a dozen items including labels, gaps, hardware condition, and closing behavior.
If a marking is illegible, painted over, missing, or inconsistent with the physical door, don't guess the rating from appearance. Go back to the manufacturer's listing and certification records.
Custom Metal Products manufactures UL-labeled fire-rated hollow metal doors and frames and can help commercial distributors, installers, and project teams coordinate custom configurations against product documentation. That said, no manufacturer replaces the authority having jurisdiction or the listing agency when a question needs a binding answer.
Field vs. Laboratory and Listing Differences
A laboratory test establishes performance under one set of defined conditions: a specific door, frame, hardware set, and wall assembly, tested together.
UL Solutions notes that certified fire doors are meant to follow the manufacturer's installation instructions exactly. Its field-evaluation process, distinct from an annual inspection, checks whether a modified or unusual assembly still performs as tested.
Field compliance depends on using the listed product, approved components, correct installation, and ongoing maintenance, not just an isolated lab result from years earlier. Don't transfer assumptions from one manufacturer's listing or certification program to another—research the exact requirements for the door and frame actually being installed.
Implications of Incorrect Ratings and Common Misinterpretations
An incorrect, missing, altered, or misread label creates problems that go well past a failed inspection. Design teams face redesign costs. Owners face insurance and warranty complications. In an actual fire, the stakes are life safety, not paperwork.
Common failure patterns worth watching for:
- Selecting a door rating without checking what the wall or opening actually requires
- Substituting hardware or glazing that isn't part of the tested listing
- Modifying a labeled door in the field without manufacturer or agency approval
- Installing a rated frame into a wall assembly it was never listed for
A label alone doesn't prove the whole opening is compliant. The door, frame, hardware, glazing, wall, anchors, clearances, and latching all have to work together. One valid label on the slab says nothing about whether the closer arm was swapped last year.
Labels also don't all look alike. Embossed marks, welded metal plates, and printed labels vary by product and certification program. The hourly rating won't always sit in the same spot from one manufacturer to the next. A label that looks unfamiliar isn't automatically wrong.
When a label is painted over or damaged, replacing it in the field isn't a simple fix. Contact the original manufacturer, the listing agency, or a qualified inspector for a documented determination rather than reapplying a generic sticker.
When sources appear to conflict, the applicable code edition, adopted local amendments, listing documents, and the AHJ's interpretation control the outcome.
Conclusion
A fire-rated door label is traceable proof of a listed product. The rating defines the performance and application boundaries that documentation actually supports—and no further.
Reliable compliance depends on coordinating the labeled door and frame with the complete rated opening. Every part of that opening has to match what was tested:
- Wall
- Hardware
- Glazing
- Clearances
- Closing behavior
Specification and field verification both matter. Skip either one, and gaps show up during inspection—or during an actual fire.
If a label looks unusual, a rating seems mismatched, or a substitution feels like it might fall outside the listing, don't guess. Resolve the question with the manufacturer, listing agency, qualified professional, or AHJ before the opening gets accepted.
Frequently Asked Questions
Does a fire door need a label?
Yes. Fire door assemblies required by code need labels from an approved agency, permanently attached and compliant with NFPA 80. Confirm the exact requirement against your adopted code edition, the product listing, and your AHJ.
What is the code for a fire-rated door?
In most US jurisdictions, the IBC sets rating requirements while NFPA 80 governs installation and maintenance. The required rating depends on the wall, occupancy, opening location, and the complete assembly, not one blanket number.
What is a 20-minute fire-rated door?
A 20-minute door carries a fire-protection rating tested without the hose-stream portion of the standard fire test. Its permitted use depends on the adopted code, the wall it's installed in, and the specific listing and hardware.
What are the key differences between Class A and Class B fire doors?
"Class A" and "Class B" are historical shorthand tied to wall type, not standardized rating categories in current codes. Compare the actual hourly rating and listing documentation instead of relying on class names alone.
What is an FCD door?
"FCD" isn't a standardized US fire-door rating term recognized in current code or major listing documentation. Confirm any abbreviation like this against the manufacturer's label, listing paperwork, project specs, or your AHJ.
