Many specifiers and distributors struggle with the same confusion: is a "rabbeted jamb" the same as a "flat jamb"? Does "double rabbet" mean a pair of doors? Frame tolerances in commercial hollow-metal work run as tight as ±1/32 inch on the rabbet and stop dimensions, so imprecise language creates real coordination risk.
This article defines what a rabbeted door jamb actually is, breaks down single versus double rabbet profiles, and compares rabbeted jambs to flat and split jamb terminology. You'll also get a practical framework for specifying the right profile for your opening.
Key Takeaways
- Rabbeted jambs use a stepped recess to seat and stop the door when closed
- Single vs. double rabbet is about stop placement, not door leaf count
- Match the profile to wall type, door thickness, hardware, and fire rating
- Confirm dimensions and terms on the manufacturer’s drawings before you order
What Is a Rabbeted Door Jamb?
A rabbet, in general carpentry and metal-fabrication terms, is a step-shaped recess cut or formed into a material. In hollow-metal frame construction, the rabbet is the area between the frame's stop and its face, the zone that accepts a door, panel, or glazing.
The Hollow Metal Manufacturers Association's glossary defines it exactly this way, distinguishing the rabbet from the door stop as a separate frame element against which the door closes.
That distinction matters. The jamb is the vertical side member of the frame. The rabbet is the recessed seating area within that jamb profile. The stop is the raised lip that halts the door's swing. On many hollow-metal frames, the stop is formed as part of the same profile as the rabbet, but it's still a functionally distinct feature.

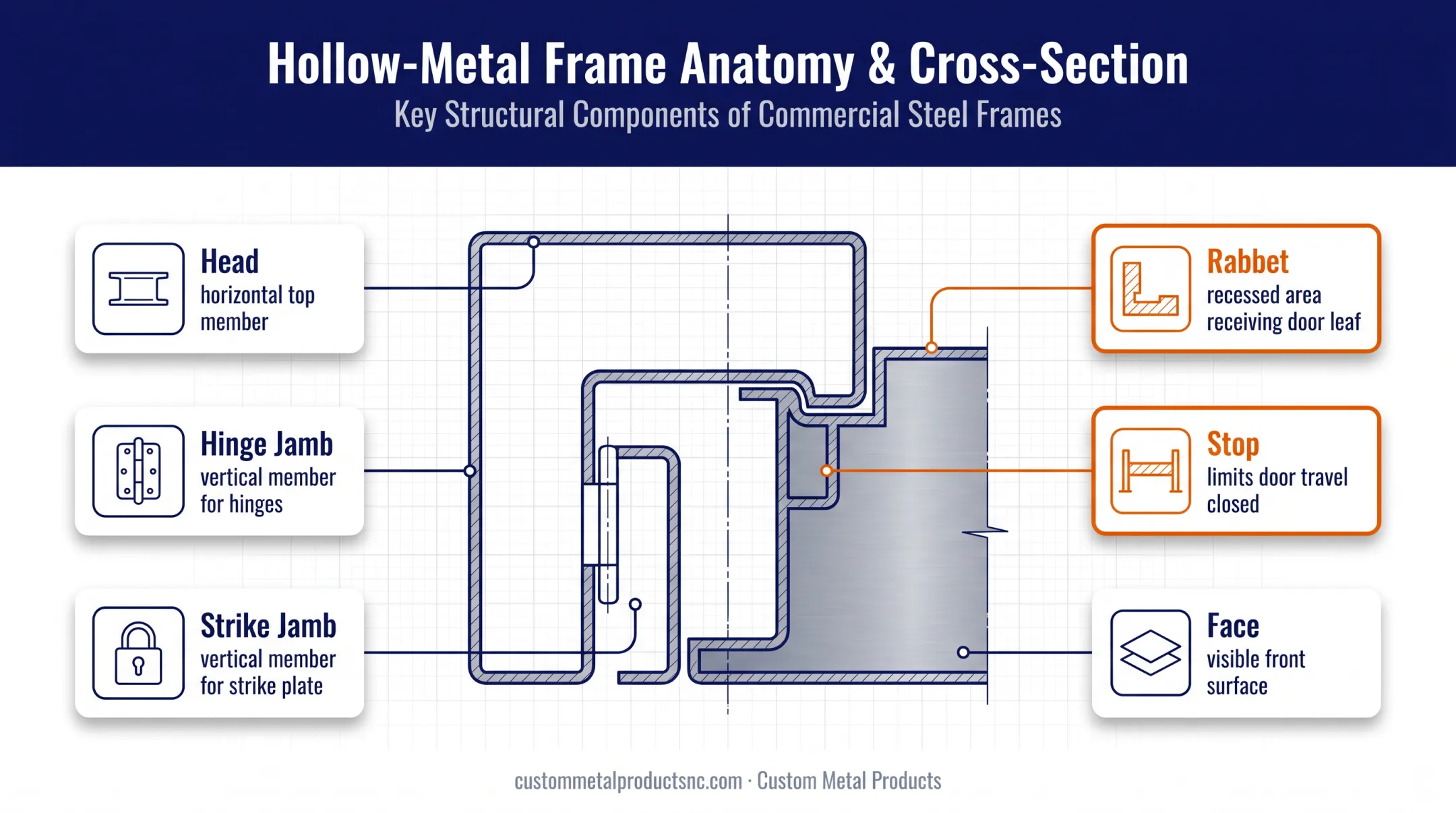

Frame Parts You'll See on a Drawing
A typical hollow-metal frame cross-section labels these components:
- Head — the horizontal top member spanning between jambs
- Hinge jamb — the vertical member prepared for hinges or pivots
- Strike jamb — the vertical member prepared for the strike plate
- Rabbet — the recessed area receiving the door leaf
- Stop — the feature limiting door travel in the closed position
- Face — the visible front surface of the frame
Typical commercial profiles use these minimum dimensions:
- Single-rabbet: 2-inch minimum throat, 2-1/8-inch jamb depth
- Double-rabbet (fire-rated): 2-1/4-inch minimum throat, 2-3/8-inch jamb depth
- Stop: 5/8 inch minimum on both profiles
Equal and unequal double-rabbet configurations exist across the industry, but don't assume a universal number applies. Manufacturer profile drawings, not general trade knowledge, should govern the exact dimensions on your project.
Single vs. Double Rabbeted Jambs
A single rabbeted jamb has one rabbet, sized for one primary door leaf. Specifiers usually choose it for limited jamb depth, shallower wall conditions, or a simpler face appearance.
A double rabbeted jamb has two rabbets arranged around a central stop area. This is the more common configuration in standard commercial catalogs, appearing as both Double Rabbet Masonry and Double Rabbet Drywall standard profiles.
Double Rabbet Does Not Mean Double Doors
Double rabbet does not mean double doors. A double-rabbet frame profile describes the cross-section geometry, not the number of leaves in the opening. You can have a single door in a double-rabbet frame just as easily as a pair.
| Feature | Single Rabbet | Double Rabbet |
|---|---|---|
| Minimum throat | 2" | 2-1/4" |
| Minimum jamb depth | 2-1/8" | 2-3/8" |
| Minimum stop | 5/8" | 5/8" |
| Typical use | Shallow wall, simpler appearance | Standard commercial, fire-rated openings |
Related terms often appear alongside these profiles:
- Cased openings — frames without a stop or soffit, typically used when there is no door leaf
- Double-egress frames — pairs that swing in opposite directions for two-way traffic

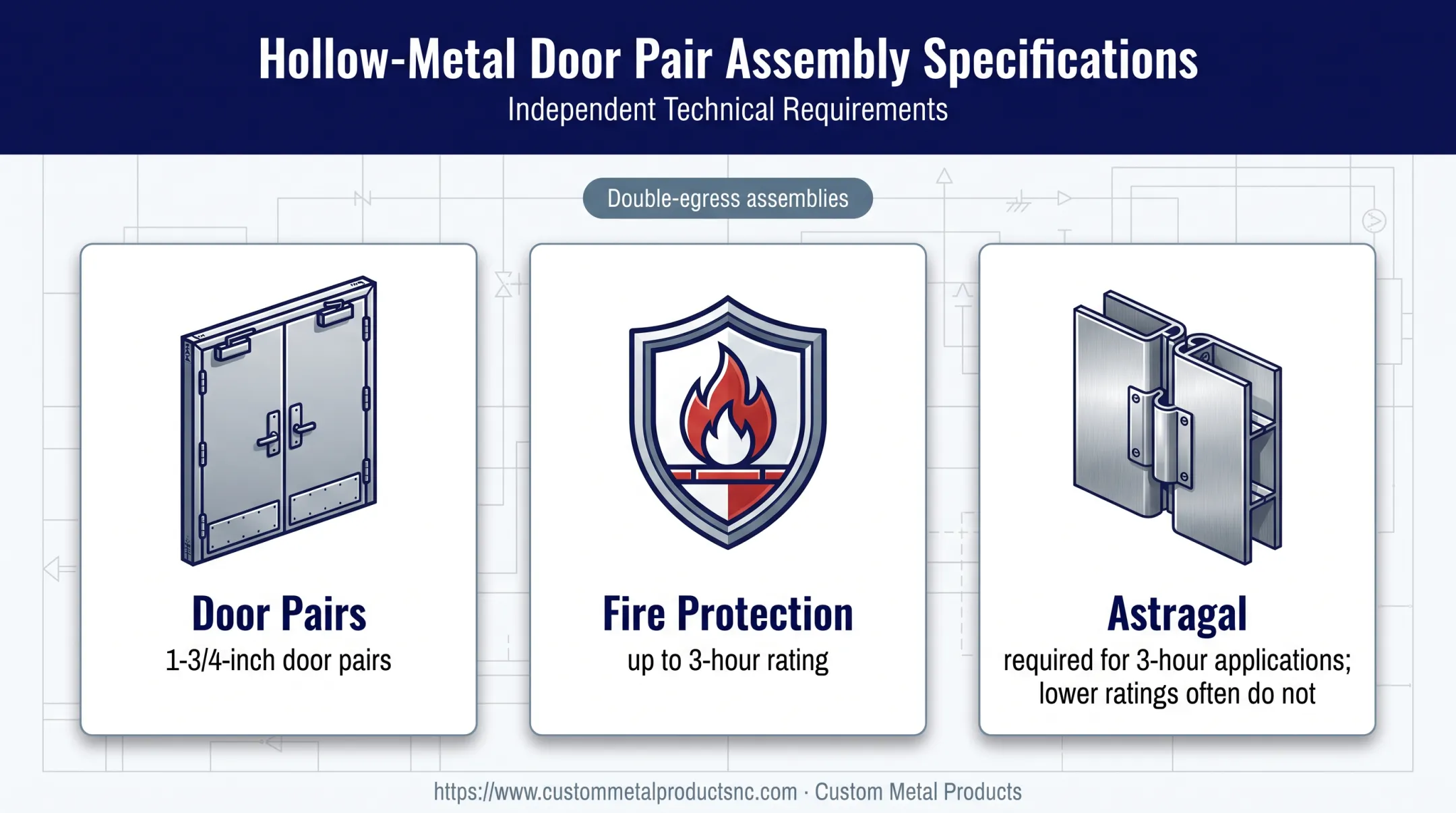

Double-egress assemblies typically use 1-3/4-inch door pairs and can be rated up to 3-hour fire protection. 3-hour applications require an overlapping astragal; lower ratings often do not.
Before finalizing a profile, confirm these details with the frame manufacturer:
- Door thickness
- Required clearances
- Handing and swing direction
- Hardware needs
Head and jamb clearances on commercial hollow-metal frames typically run to 3/16 inch maximum. Getting that wrong affects both function and appearance.
Rabbeted vs. Flat and Split Jambs
This is where a lot of specification language gets muddled, partly because "flat jamb" isn't a standardized industry term the way "single rabbet" or "double rabbet" are.
Rabbeted vs. flat: A rabbeted jamb has the visible stepped profile described above, with a distinct rabbet and stop. What's commonly called a "flat jamb" in the field generally refers to a simpler face condition without that same stepped geometry, though the term isn't formally defined in HMMA's published glossary.
If a project spec calls for a "flat jamb," get clarification or a profile drawing before assuming what that means.
Flat vs. split: A split jamb (sometimes called an adjustable or split frame) is a construction approach, not a profile shape. It's built in two or more pieces to accommodate varying wall thicknesses, often useful when wall dimensions aren't finalized at the time of order.
"Flat," by contrast, typically describes the face condition rather than the assembly method. These are two different categories entirely: one about geometry, one about construction sequence.
Quick Comparison
| Term | What It Describes | Typical Driver |
|---|---|---|
| Rabbeted | Stepped profile with rabbet and stop | Door-seating function |
| Flat (field term) | Simpler face condition | Appearance preference |
| Split/adjustable | Two-piece construction | Variable wall thickness |
Custom Metal Products' standard profile catalog includes:
- Double Rabbet Masonry and Double Rabbet Drywall
- Single Rabbet Masonry and Single Rabbet Drywall
- Cased Open Masonry and Cased Open Drywall
- Split Frame as a custom configuration
Because product names vary by manufacturer, always cross-check the selected frame system's own drawings and installation instructions rather than assuming a term means the same thing everywhere.
Where Rabbeted Jambs Are Used
Rabbeted hollow-metal jambs show up across most commercial building types: offices, schools, and institutional buildings, multifamily housing, hospitality projects, utility rooms, and corridors where a defined door stop and durable frame profile matter.
Selection shifts based on opening configuration:
- Single doors typically use single or double rabbet profiles depending on wall type
- Pairs often call for double rabbet with attention to meeting-stile hardware
- Double-egress openings need frames specifically listed for that swing configuration
- Narrow jamb depths may push toward single rabbet profiles to conserve wall space
Performance Requirements Go Beyond the Profile
A rabbet profile alone doesn't satisfy code. The 2024 International Building Code sets a minimum 32-inch clear opening for swinging doorways, measured between the open door face and the stop at 90 degrees. Accessibility, acoustic, security, and egress requirements apply independently and need to be verified against the specific project's applicable codes.
Fire-rated openings bring separate listing requirements. UL distinguishes a certified fire door's Classification Mark from a fire-door frame's separate Listing Mark. Fire doors are typically supplied and installed as complete tested assemblies under NFPA 80, not as a rabbet cross-section alone.
Custom Metal Products manufactures UL-labeled fire-rated hollow metal doors and frames built to NAAMM/HMMA specification procedures. Even with a labeled product, the complete assembly, hardware, and installation conditions still need verification against the listing.

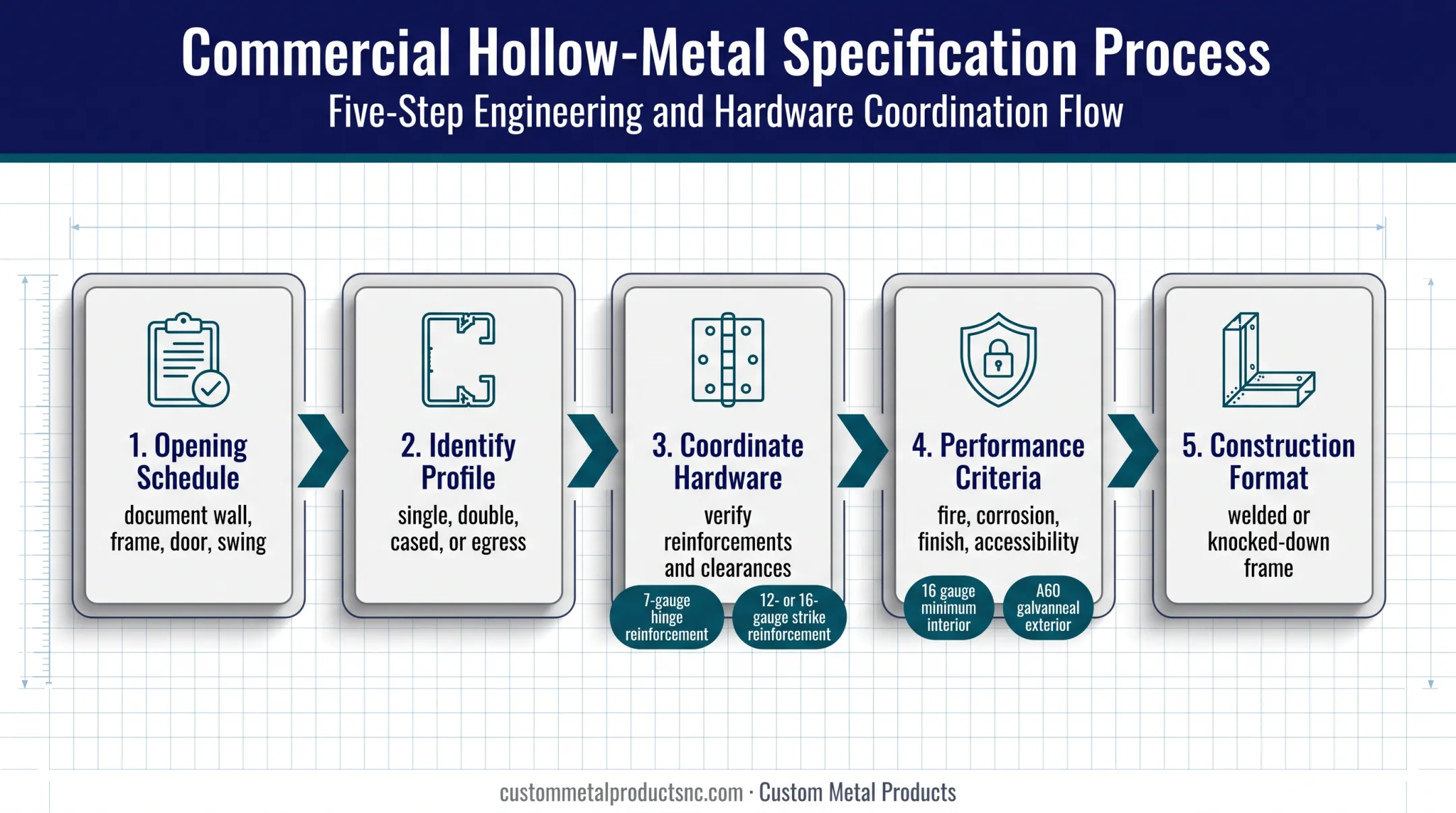

How to Specify a Rabbeted Door Jamb
Specifying the right jamb starts well before you pick a profile name.
- Build the opening schedule first. Document opening number, location, wall type and thickness, frame depth, door size and thickness, handing, swing, and opening type (single, paired, communicating, or double egress).
- Identify the profile. Single rabbet, double rabbet, cased opening, double egress, or a manufacturer-specific configuration. Note the functional reason, not just the appearance.
- Coordinate hardware. Hinges, locks, strikes, closers, exit devices, and electrified hardware need adequate frame face and reinforcement. Typical minimums: 7-gauge hinge reinforcement at 1-1/4 × 10 inches; 12- or 16-gauge strike reinforcement.
- Confirm performance criteria. Verify fire rating, corrosion resistance, finish, and accessibility for the project. Interior frames typically need 16 gauge minimum; exterior frames often use 16 gauge with A60 galvanneal coating.
- Specify construction and delivery format. Welded frames arrive pre-assembled; knocked-down (KD) frames are field-assembled, often in a sequence of jamb, head, jamb, then a removable spacer bar.
Pre-Order Checklist
Before releasing an order, confirm:
- Approved shop drawings and manufacturer profile drawings
- Clear opening dimensions and tolerances (frame width typically nominal +1/16"/−1/32", height ±3/64")
- Anchor type — masonry wall anchors typically run 16 gauge minimum
- Hardware templates and locations
- Finish, fire labeling, and delivery schedule
When an opening is custom, time-sensitive, fire-rated, or hit by a schedule change, working directly with a hollow-metal manufacturer helps resolve spec and schedule gaps quickly.
Custom Metal Products fabricates custom commercial hollow-metal doors and frames at its Wilmington, North Carolina facility. Standard frame lead times run five to seven business days, with expedited programs for distributors and job sites managing tight turnovers across the Eastern U.S.
Common Mistakes to Avoid
A few specification habits create most of the rework on rabbeted jambs:
- Treat "rabbeted," "flat," "split," and "double rabbet" as distinct profiles, and verify each against the manufacturer's actual drawings
- Match the frame to wall condition, door thickness, hardware, clearances, and installation sequence, not appearance alone
- Confirm stop depth, throat, and jamb depth for the specific product line; dimensions are not universal
- Read "double rabbet" as a frame profile, not a door-leaf count, and specify opening configuration (single, pair, double egress) separately
Frequently Asked Questions
What is a rabbeted door?
The term usually refers to a rabbeted door jamb, not the door leaf. The jamb has a stepped recess (the rabbet) that receives the door and a stop that limits its swing.
What is the difference between single rabbeted jambs and double rabbeted jambs?
Single-rabbet profiles use one rabbet and a shallower minimum throat (about 2 inches). Double-rabbet profiles use two rabbets and run a bit deeper (about 2-1/4 inches minimum). Choose based on wall type, door thickness, and hardware.
What is the difference between a rabbeted jamb and a flat jamb?
A rabbeted jamb has a stepped door-receiving profile with a distinct rabbet and stop. "Flat jamb" is informal field language for a simpler face condition—confirm the exact meaning on the manufacturer's drawings.
What is the difference between a flat jamb and a split jamb?
"Flat" typically describes a profile or face condition. "Split" (or adjustable) describes a two-piece frame construction built to accommodate variable wall thickness. They're answering different questions entirely.
What is the difference between a door jamb and a door stop?
The jamb is the vertical side member of the frame. The stop is the feature that halts the door's closing travel, often formed as part of the same frame profile as the rabbet but functionally distinct from it.
What is a double rabbet joint?
In hollow-metal frame terminology, a double-rabbet frame means two rabbets in the profile. That usage differs from general woodworking, so match the term to your manufacturer's definition.
