Introduction
A sliding door that looks compliant on a shop drawing can still fail an inspection. Inspectors measure the clearances around the opening, not just the door panel.
Users need room to approach the opening, reach the hardware, apply force to move the panel, and then pass through without obstruction. Many project teams size a sliding door to a nominal 32-inch or 34-inch reference and assume the job is done. It isn't.
Correct specification depends on clear opening width, approach direction, adjacent obstructions, hardware position, and finished-floor conditions working together.
This article breaks down clear width versus maneuvering clearance, walks through sliding-door approach conditions, and gives you a field-verification framework built on current U.S. Access Board standards.
Key Takeaways
- Clear opening width and maneuvering space—not nominal panel size—determine ADA compliance.
- Clearance changes with approach direction, door type (pocket, bypass, paired), and wall or recess conditions.
- Hardware reach, operating force, thresholds, and floor slopes complete the compliance check.
- Verify current ADA Standards, building codes, and project requirements before finalizing drawings or installation.
What ADA Sliding Door Maneuvering Clearances Represent
Maneuvering clearance is the unobstructed floor area a person using a wheelchair or mobility device needs to approach a door and operate it. Specifiers often confuse it with doorway width, but clearance is the floor space around the opening that makes the door operable.
Three separate measurements matter here, and mixing them up is where most specification errors start:
- Clear opening width: the actual unobstructed passage through the door
- Perpendicular approach dimension: the depth of floor space needed directly in front of the door
- Parallel or side clearance: the space needed beyond the stop, latch, pocket, or leading door edge
The U.S. Access Board measures clear opening from the sliding leaf's leading edge in the open position to the opposing stop or jamb. That figure is not taken from the nominal door-leaf width or the rough framed opening. This distinction shows up directly in Chapter 4 of the Access Board's guide to entrances, doors, and gates.
Sliding doors eliminate the swing arc, which is useful in tight corridors and small restrooms. But that's the only thing they eliminate. A user still has to reach the pull, generate enough force to slide the panel, then move through the resulting gap. If the maneuvering space around that gap is too tight, the door's operating mechanism becomes irrelevant.
Factors That Influence Sliding-Door Clearance in Real-World Operation
An opening can look wide enough on paper and still fail in the field. Several real-world conditions eat into usable clearance:
- Pocket depth and wall returns that shrink the usable throat
- Frame members, stops, and guides that project into the clear width
- Recessed openings and adjacent fixtures that crowd approach space
- Furniture placement and circulation routes that block the required clear floor area

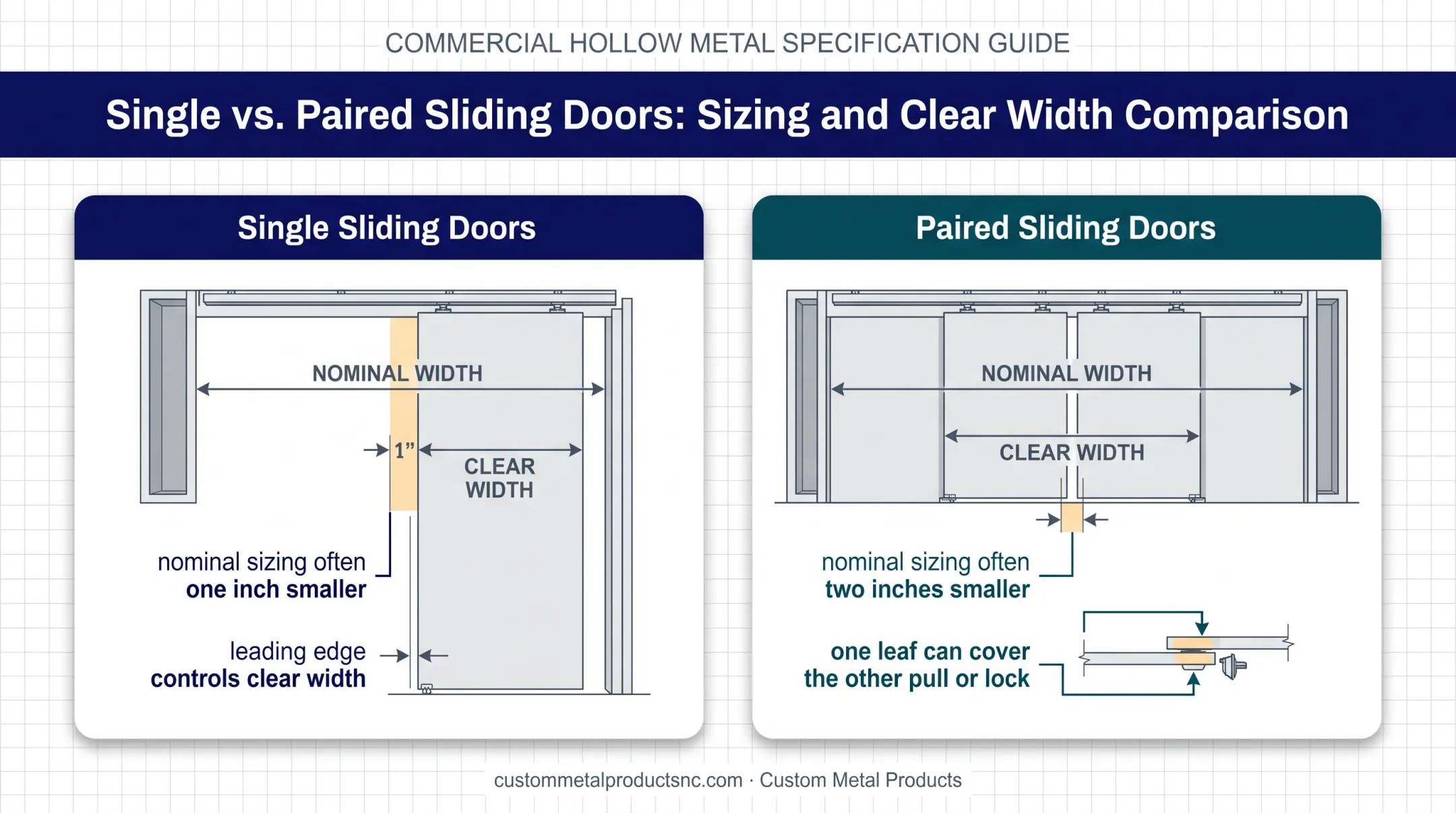

Single, Pocket, Bypass, and Paired Configurations
Each configuration behaves differently once the door is open:
- Single sliding doors leave the active leaf’s leading edge as the controlling clear-width point.
- Pocket doors hide the panel in the wall cavity, but the pocket frame and jamb still set the clear opening.
- Bypass doors overlap panels, so stacked leaf widths are not the clear passage and can block hardware.
- Paired sliding doors must be checked fully open; one leaf often covers the other’s pull or lock.
On welded trim packages, our fabrication data shows nominal door sizing often runs a full inch smaller for singles and two inches smaller for pairs once frame components are included. That gap shows up in the field if drawings assume catalog width equals clear width.
Floor conditions matter as much as the leaf layout. Finished-floor elevation, threshold details, and floor-track transitions need coordination before installation, not after the door is hung. Once concrete is poured and tile is set, a raised track becomes a change order, not a punch-list item.
Evaluate both sides of the opening and the door in its open and closed positions. The final layout should be checked against the applicable ADA and building-code provisions before fabrication drawings are approved.
Range of ADA Sliding-Door Maneuvering Clearances
There's no single universal number for sliding-door clearance. The 2010 ADA Standards set minimum dimensions tied to specific conditions, and every project should verify these against the current version of the 2010 ADA Standards for Accessible Design, Section 404.
Nominal and Minimum Clear Opening
Section 404.2.3 sets a 32-inch minimum clear opening, measured with the sliding panel fully open. If the doorway is more than 24 inches deep, that minimum jumps to 36 inches. Thick-wall assemblies, pocket-frame conditions, and deep recesses can all trigger this larger requirement.
Measure the actual passage — accounting for door stops, frame members, overlapping panels, and guides — not the labeled panel width.
Approach and Maneuvering Conditions

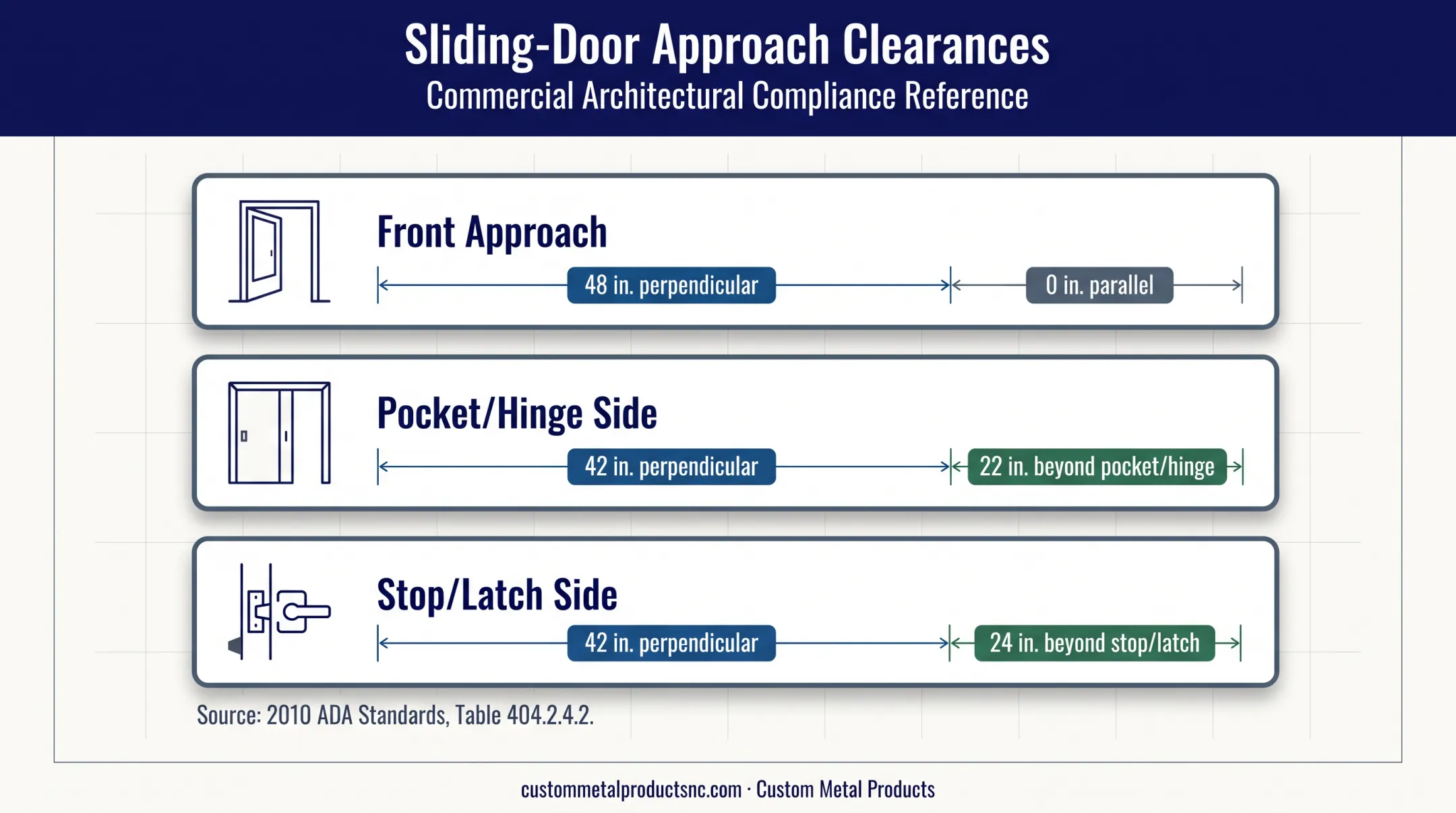

Sliding and folding doors fall under Table 404.2.4.2, a separate table from the one governing swinging doors. Don't borrow pull-side or push-side figures from swinging-door diagrams; they don't apply here.
| Approach | Minimum perpendicular clearance | Minimum parallel (side) clearance |
|---|---|---|
| Front approach | 48 in. | 0 in. |
| Pocket/hinge side | 42 in. | 22 in. beyond pocket/hinge side |
| Stop/latch side | 42 in. | 24 in. beyond stop/latch side |
Required maneuvering space spans the full doorway width plus the applicable side clearance. Confirm which approach actually occurs on the plan—front, pocket/hinge, or stop/latch—before locking dimensions.
Boundary Conditions and Safe Design Margin
Overlapping clearances are acceptable only when every route and door operation still functions correctly. If a corridor's turning space overlaps a door's maneuvering clearance, both still need to work independently.
Designers often build in margin beyond the minimum when:
- Traffic volume or occupancy type runs high
- Mobility-device mix is unpredictable (power chairs are heavier and wider than manual chairs)
- Door weight or hardware resistance sits on the high end
- Field conditions introduce more uncertainty than typical new construction
Key Technical Properties of ADA Sliding-Door Maneuvering Clearances
Accessible performance comes from how the opening, sliding mechanism, hardware, and surrounding construction work together.
Clear Width and Door Position
Document the actual clear width with the panel fully open. A nominal 34-inch door doesn't automatically produce a 32-inch usable passage once you subtract stops, overlapping leaves, and pocket-door protrusion.
For paired or bypassing panels, confirm:
- Hardware remains exposed and usable from the required side when the door is fully open
- Overlapping leaves don't cover pulls, locks, or privacy hardware
- Pocket-door protrusion into the opening is accounted for in the clear-width calculation
Hardware Reach and Operability
Accessible hardware must be usable with one hand, without tight grasping, pinching, or wrist twisting. Verify current height and force requirements against the standard, not a product label. Labels describe the hardware, not the installed condition.
Sliding-door pulls, recessed handles, privacy locks, guides, and soft-close devices each affect reachability and operating force differently. A soft-close mechanism that adds resistance, for example, can push a door over the force limit even if the hardware itself tests fine in isolation.
Thresholds, Tracks, and Floor Conditions
Raised tracks, abrupt level changes, and poorly coordinated floor transitions can block a mobility device even when horizontal maneuvering dimensions check out.
Confirm these conditions against the standard for your project:
- Threshold height and bevel
- Slope and floor-surface transitions
- Track profile at the clear opening
Distinguish federal ADA requirements from stricter state or local rules. Many jurisdictions add their own overlays.
Durability and Ongoing Compliance
A door that passes inspection on day one can fall out of compliance over time. Watch for:
- Settlement or wear that shifts track alignment
- Debris buildup in floor tracks
- Misaligned rollers or damaged guides
- Furniture layouts that creep into maneuvering space
- Hardware adjustments made without re-checking force limits
Document the as-built opening and test the door in normal use. Build these checks into the facility’s maintenance routine:
- Clear width
- Hardware usability and operating force
- Track condition
- Maneuvering-space obstructions
How to Specify, Measure, and Validate Compliance
ADA clearance is both a design specification and a field-verification requirement. Cite the current U.S. Access Board standards in your documentation, and identify which project professional holds final authority on code interpretation before drawings go final.
Specification and Documentation
The door schedule and drawings should identify:
- Clear opening dimension and panel configuration
- Pocket or wall dimensions
- Approach direction
- Finished-floor elevations and threshold details
- Hardware location
- Any fire, egress, or automatic-door requirements that apply
When fire or egress requirements appear on that schedule, the opening gets a second layer of scrutiny. Labeled doors and frames must be constructed as tested and approved by an accredited testing agency with factory inspection service. If a fire-rated configuration can't qualify for the labeling a project requires, the architect needs to know before fabrication starts, not after.

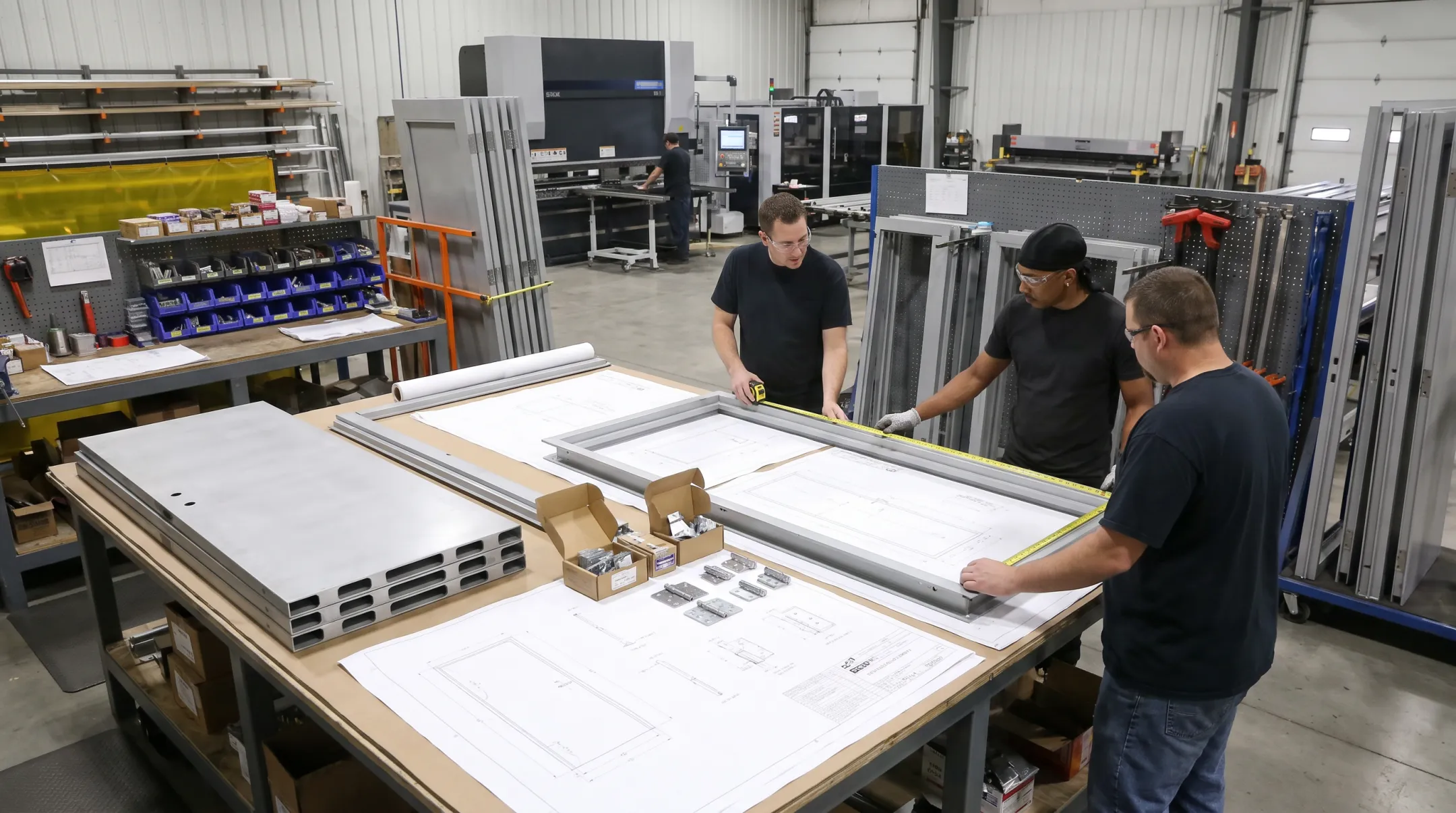

This is where early coordination with a fabricator pays off. Custom Metal Products builds commercial hollow metal doors and frames, including UL fire-rated assemblies, so verified opening dimensions and performance requirements can be locked in before anything is cut.
That early handoff lets the fabricator coordinate frames, panels, hardware, and adjacent construction—whether the assembly is a sliding opening or a standard swing frame.
Measurement and Field Verification
Use this field checklist:
- Measure the clear passage with the door fully open
- Confirm perpendicular and parallel maneuvering areas on both sides
- Inspect thresholds and slopes for compliant transitions
- Test hardware reach and operating force
- Confirm no furniture or equipment encroaches on the required space
Know the difference between rated, designed, tested, and field-measured values. A rated force number on a hardware spec sheet is not the same as the force you measure on an installed, adjusted door.
Each party should sign off only on the measurement type they own:
- Installer
- Inspector
- Accessibility professional
- Authority having jurisdiction
Implications of Operating Outside the Recommended Range
Insufficient maneuvering clearance can make a doorway inaccessible, even when the door width itself looks fine on paper.
Common failure points include:
- Pocket-frame interference that narrows the actual clear width
- Recessed pulls that become inaccessible once the door is open
- Excessive track or threshold height
- Door hardware hidden behind the open panel
- Furniture or equipment placed inside the required maneuvering area
The consequences compound quickly: failed inspections, redesign or rework, delayed occupancy, conflicts with egress or fire-rated requirements, accessibility complaints, and warranty disputes.
The DOJ's settlement agreement with the Wyndham Southbury Hotel is a documented example. Inspectors found noncompliant clear door widths across most guest rooms and required a full renovation of designated accessible units under the 2010 Standards.
Common Misinterpretations of Sliding-Door ADA Clearance
Three assumptions cause most of the trouble:
- "A 34-inch door is automatically compliant." Nominal size and measured clear width are different numbers. Only the measured clear width counts.
- "No swing arc means no clearance requirements." Sliding doors still need approach space, operable hardware, and unobstructed circulation. The swing arc was never the only variable.
- "A pocket-door rule of thumb covers it." A rule of thumb does not verify the full wall, frame, panel, hardware, and finished-floor setup against the standard that governs your project.
Conclusion
ADA sliding-door maneuvering clearance is a governing performance requirement. The opening must provide usable passage and enough surrounding space to approach and operate the door safely.
Reliable compliance comes from evaluating these elements together:
- Clear width and approach dimensions
- Hardware and thresholds
- Adjacent construction and field conditions
Before fabrication and final acceptance, coordinate with the architect, an accessibility professional, the manufacturer, the installer, and the authority having jurisdiction. Standards-based checks at those points keep the built opening as compliant as the drawing.
Frequently Asked Questions
What are the minimum ADA maneuvering clearances for sliding doors?
Requirements vary by clear opening width, approach direction, sliding-door type, and surrounding conditions. There is no single universal number. Check the current ADA maneuvering-clearance provisions in Section 404 for your specific approach condition.
Is a 34-inch door ADA-compliant?
Nominal door width alone doesn't establish compliance. You need to verify the actual clear opening, surrounding maneuvering space, hardware operability, and threshold conditions against project-specific requirements.
What is a rough opening for a pocket door?
A rough opening is the framed construction opening required for the selected pocket-door system. Exact dimensions vary by manufacturer, wall thickness, finished-floor conditions, required clear opening, and applicable accessibility requirements.
Can you do a pocket door on a 2x4 wall?
A pocket door can work in a nominal 2x4 wall with an appropriate frame system. Confirm wall thickness, structural or utility conflicts, pocket depth, hardware protrusion, and clear width against ADA maneuvering-clearance requirements.
