Introduction
Commercial construction teams run into this question constantly: does filling a hollow metal frame with grout make the opening stronger, or does it just create a problem nobody asked for?
The confusion is understandable. Specifications mention grout without context. Field crews assume "masonry wall" automatically means "grout the frame." And a fire rating gets treated as proof that grout is required, when it usually isn't.
If you specify, supply, or install commercial hollow metal openings in the United States, the details matter.
This guide covers what grouting actually does, how to install it correctly, where it commonly goes wrong, and when another material solves the problem better than grout.
Key Takeaways
- Grouting is not a default requirement for standard or fire-rated hollow metal frames.
- Do not grout drywall openings; moisture damages gypsum board, hardware, and steel.
- Hand-trowel approved grout at the specified consistency; never pump it as thin slurry.
- Verify fire, sound, and thermal needs separately before choosing grout or an alternative.
What Is Grouting and Why Is It Used?
Grouting a door frame means filling some or all of the hollow internal cavity of a steel frame with an approved grout or mortar, typically during masonry construction. It's a specific installation step, not a type of wall system.
This is different from other frame-related work you'll see on a job:
- Sealing the perimeter gap between the frame and the surrounding wall
- Installing backer rod or sealant at the opening's edge
- Filling the rough opening around the frame before drywall goes up
Each of these uses different materials for different purposes. Confusing them with cavity grouting leads to the wrong product going into the wrong place.
Why Projects Specify Grout

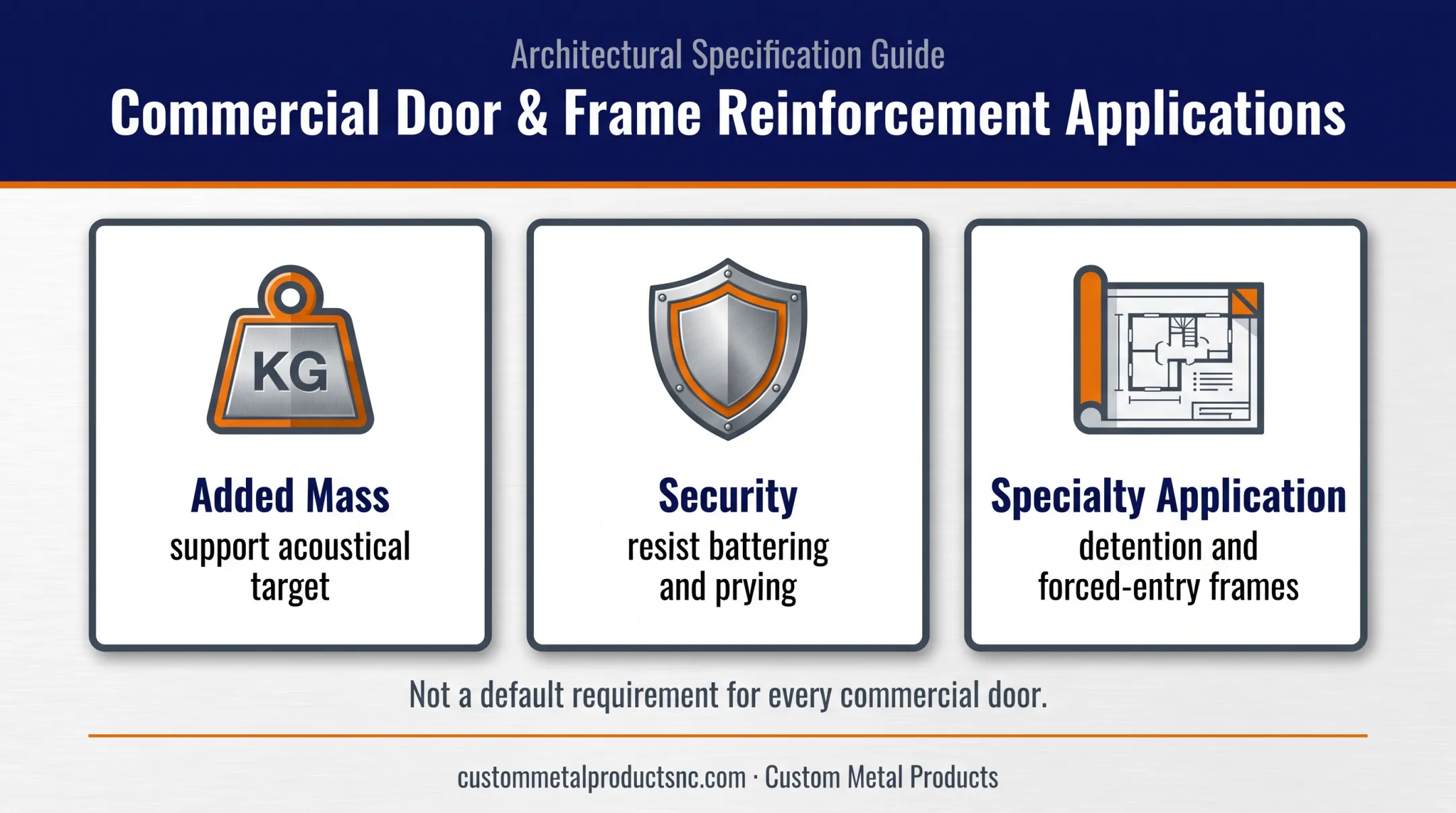

When grout is called for, it's usually to add mass, support an acoustical target, or meet a security requirement. Detention and forced-entry-rated hollow metal specifications, for example, often call for fully grouted jambs specifically to resist battering and prying. That's a specialty application, not a default rule for every commercial door.
Here's the part that trips people up: a properly anchored frame doesn't become inherently stronger just because someone pumps grout into it. The Steel Door Institute has stated plainly that grout does not meaningfully add structural rigidity to a standard frame. SDI's grouting guidance makes this distinction directly, warning installers away from treating grout as a strength upgrade.
Fire rating is the other myth worth killing. A UL label on a frame doesn't mean grout is required in masonry or drywall construction at any hourly rating. Unless the manufacturer's certification specifically calls for it, filler isn't part of the tested assembly.
Custom Metal Products fabricates its fire-rated frames as complete assemblies tested under UL 10B (ASTM E 152) and inspected by Underwriters Laboratories or another recognized agency. The rating stands on the frame's own construction, not on whether someone fills it afterward.
How Grouting Works and Where It Is Applied
When grout is genuinely called for, there's a sequence to follow:
- Confirm approval — check the specification and manufacturer instructions before doing anything.
- Install and anchor the frame, then verify plumb, level, and square.
- Protect sensitive components — hinges, silencers, hardware preps.
- Brace the frame against the pressure wet grout will exert.
- Place the approved grout by hand, at the correct consistency.
- Inspect after curing to confirm alignment held.
Protecting hardware and bracing the frame matter more than most crews realize. Wet grout has weight and hydraulic pressure. An unbraced frame can bow at the jambs or sag at the header before the grout sets—and door fit, hardware alignment, and clearances all suffer downstream.
The Consistency Question
There's a real difference between hand-troweled grout placed as masonry courses go up, and pumpable slurry pushed through access holes after the wall is built. The second method introduces excess water and uncontrolled pressure, both of which create corrosion risk and distortion risk.

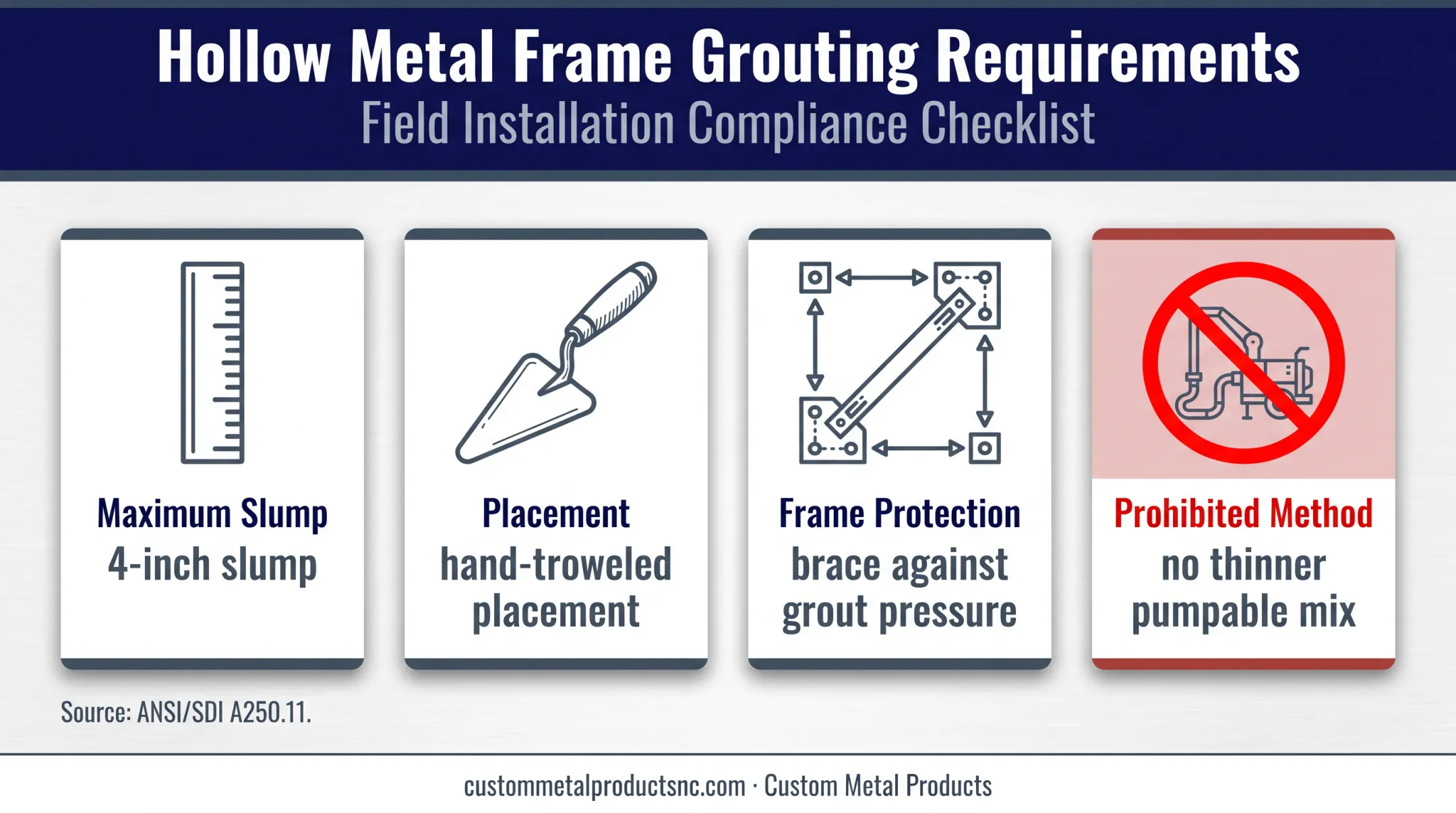

ANSI/SDI A250.11 addresses this directly: it specifies a maximum 4-inch slump for grout used in steel frame installation, requires hand-troweled placement, and requires bracing or fastening against grout pressure. It explicitly prohibits a thinner, pumpable mix for standard frame installation. That 4-inch limit comes from the frame-installation standard itself, not from a generic concrete specification.
Custom Metal Products builds masonry-application frames with hardware that stands up to grout placement:
- Adjustable jamb anchors of at least 16-gauge steel or 0.156-inch wire
- Stirrup straps no smaller than 2 by 10 inches
- Welded plaster guards of at least 26-gauge steel at every hardware mortise
Those guards keep grout out of tapped holes and mortise preps during placement.
Masonry Construction
Grout shows up most often in masonry openings, but it's frequently unnecessary when the frame is anchored correctly. If the specification does call for it, place it alongside the masonry as the wall is built, following the frame manufacturer's instructions rather than a generic mix.
Before any grout goes near the frame:
- Confirm hardware, hinges, and silencers are protected or installed with guards in place
- Verify any required corrosion-resistant coating is intact
- Check that anchors are embedded in mortar joints, not just resting against block
Antifreeze additives used in cold-weather mortar can corrode steel surfaces they contact, so any frame going into a masonry cavity with additives present needs confirmed corrosion protection before grout placement begins.
Drywall and Steel-Stud Construction
Standard drywall openings generally should not be grouted. This isn't a gray area. ANSI/SDI A250.8 states grouting shall not be used for frames installed in drywall walls, with one narrow exception: acoustical STC-rated frames that were pre-grouted and cured before installation, not filled in place after the wall exists.
Moisture from wet grout in a drywall cavity migrates into gypsum board, weakening its cohesive strength and its ability to hold anchors. It can also travel down and sit against the frame's base and stud connections, where rust starts.
If a specialty acoustical drywall system genuinely calls for a pre-grouted frame, that detail has to come from the tested assembly's documentation—not a generalized field method.
Acoustical or Specialty Applications
Grout sometimes gets specified purely to add mass for sound control. Before defaulting to it, compare it against approved insulation or acoustical sealant systems that don't carry the same moisture risk.
Custom Metal Products' Steel Stiffened SB Series door construction uses R-11 batt insulation between stiffeners to reach roughly STC 24, without introducing wet material into the assembly. Any acoustical claim—grout or alternative—should trace back to laboratory testing under ASTM E90 with STC calculated per ASTM E413, plus project-specific documentation.
Key Factors, Common Issues, and When Grouting Is Not Appropriate
Use this checklist before anyone touches a bag of grout on site:
| Factor | Check Before Proceeding |
|---|---|
| Wall construction | Masonry, drywall, or steel stud? |
| Frame type | Standard, fire-rated, acoustical, or security? |
| Manufacturer instructions | Does the frame's documentation call for grout? |
| Project specification | Is grout explicitly required or explicitly excluded? |
| Corrosion protection | Are coatings and guards adequate for wet material contact? |
| Grout material | Approved cement-based mix, correct slump? |
| Installation access | Hand-trowel access available, or would pumping be required? |
| Frame condition | Plumb, level, square, and undamaged before filling? |
Common Mistakes to Avoid
- Pumping thin slurry through access holes instead of hand-troweling
- Substituting plaster-based fill (it can stay wet at the frame center with no air exposure)
- Grouting closed mullion sections or drywall frames without documented approval
- Assuming any fire rating automatically requires grout
- Skipping bracing because "the frame will hold"
Warning Signs Something Went Wrong
Stop and call the frame manufacturer or a qualified professional if you see:
- Rust developing at hinges or inside the frame cavity
- Moisture escaping at the bottom of the jamb
- Bowed jambs or a sagging header
- Damaged or softened drywall around the opening
- Binding doors or misaligned hardware after grout cures
Grout is usually the wrong call when any of these apply:
- Standard drywall construction
- Properly anchored standard frames with no documented performance requirement
- Thermally broken frames (grout bridges the thermal break)
- Any condition that would conflict with a tested fire or acoustical listing
When to Choose an Alternative

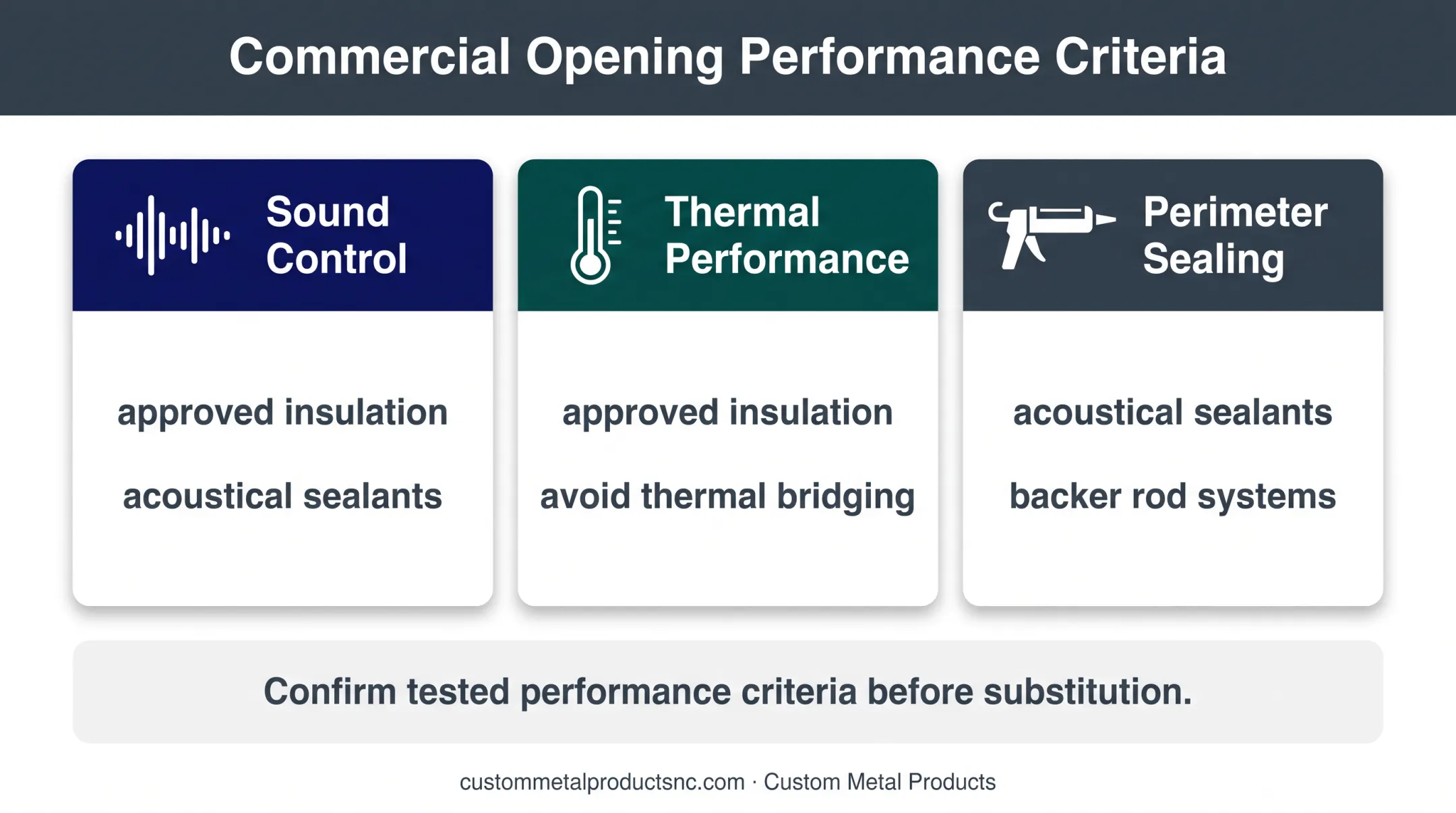

If the real goal is sound control, thermal performance, or sealing the perimeter gap, specify approved insulation, acoustical sealants, or backer rod systems instead of grout. Confirm the alternative meets the project's tested performance criteria before you substitute it.
Before changing anything in the field:
- Review the submittal and frame instructions
- Confirm what the specification actually requires or excludes
- Identify who can approve a deviation
- Get that clarification in writing
A phone call before the frame goes in costs far less than one after the wall is closed up.
Conclusion
Grouting a hollow metal frame is a project-specific decision, not a blanket requirement. Fire ratings do not trigger it on their own. Standard drywall openings usually exclude it. Masonry may require it only when the specification and manufacturer instructions say so.
The right call depends on a short checklist:
- Wall construction and opening type
- Tested listing and fire-rating documentation
- Manufacturer approval for grout
- Grout consistency and placement method
- Moisture control, bracing, and post-cure inspection
Match those items before you pour—or skip grout entirely when the listing and wall type do not support it.
Custom Metal Products fabricates standard and custom hollow metal frames, including UL-labeled fire-rated assemblies, for masonry, drywall, and steel-stud applications throughout the eastern United States. If you need to confirm a frame configuration before you order or change a field detail, our sales and engineering team can review the specification with you.
Frequently Asked Questions
What is a masonry door frame?
A masonry door frame is a hollow metal frame designed for installation in a masonry wall opening, typically anchored with straps embedded in mortar joints. This describes the wall condition, not whether the frame's internal cavity needs to be grouted.
What is the best way to fill gaps around a door frame?
Perimeter gaps and hollow frame cavities need different solutions. Match the fix to the wall system and any fire or acoustical requirement, using approved sealant or backer material rather than defaulting to grout.
Which type of door frame is best?
The best frame depends on wall construction, opening size, exposure, and fire, security, or acoustical needs. Select a compatible hollow metal frame from the project specs and manufacturer guidance.
