A hollow metal frame looks simple: two jambs, a head, a handful of anchors. But the correct detail depends on the wall it's going into, the fire rating required, the hardware being installed, and how the rough opening was framed. Get one of those wrong and you end up with a frame that won't anchor properly, a door that won't close flush, or a rated opening that fails inspection.
This guide covers frame anatomy, the anchor details that change by wall condition, schedule coordination before fabrication, material and finish selection, and the installation checks that catch problems before they turn into change orders.
Key Takeaways
- Hollow metal door frames, light-gauge studs, and structural steel frames are separate systems—use the right details for each.
- Wall type and install condition set the anchor and attachment method, not preference.
- Match door, frame, and hardware schedules before any frame goes to fabrication.
- Verify fire ratings, rough openings, and clearances against project documents and code.
Understanding Metal Frame Details
A metal frame detail is a drawing or spec section that shows how a frame is shaped, supported, anchored, dimensioned, and tied into the surrounding wall and door hardware. Installers use it to confirm the opening is built correctly; estimators use it to price the work.
Those details drive field results in five practical ways:
- Structural support: the frame carries the door's weight and daily operation without racking
- Alignment: an out-of-square frame binds the door or leaves visible gaps
- Fire and life safety: rated openings depend on the exact tested assembly
- Finish continuity: the frame return has to match the wall finish it sits against
- Installation efficiency: the wrong anchor type means a field fix instead of a quick set
Hollow Metal vs. Light-Gauge Steel vs. Structural Steel
These three get lumped together under "metal frame," but they're not interchangeable:
- Hollow metal door frames are formed steel units, typically 12 to 18 gauge, built to receive a door and its hardware.
- Light-gauge steel stud framing builds the wall itself; hollow metal frames anchor into it.
- Structural steel building frames carry building loads and have nothing to do with door openings directly.
This guide covers hollow metal door and frame details only.

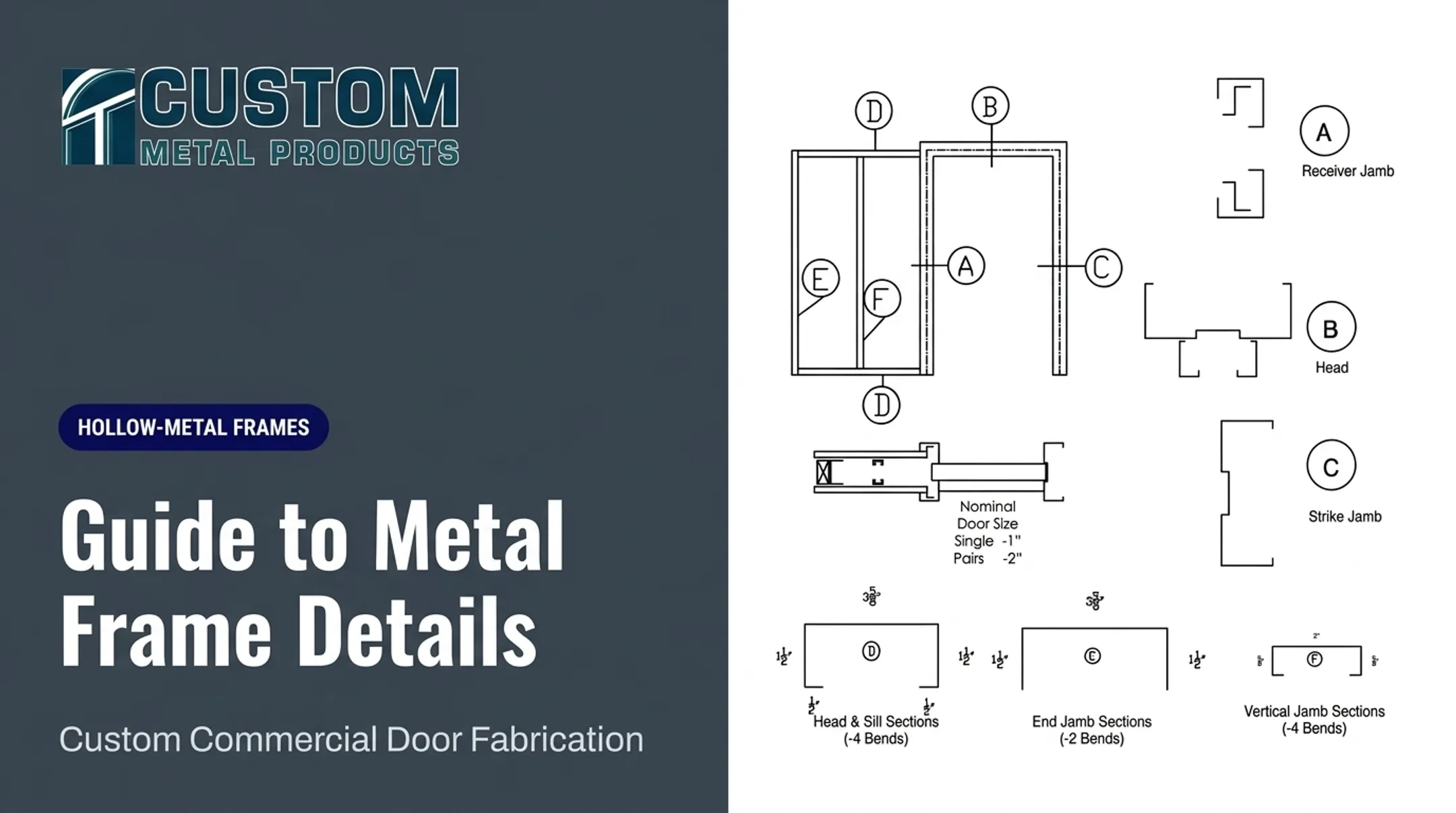

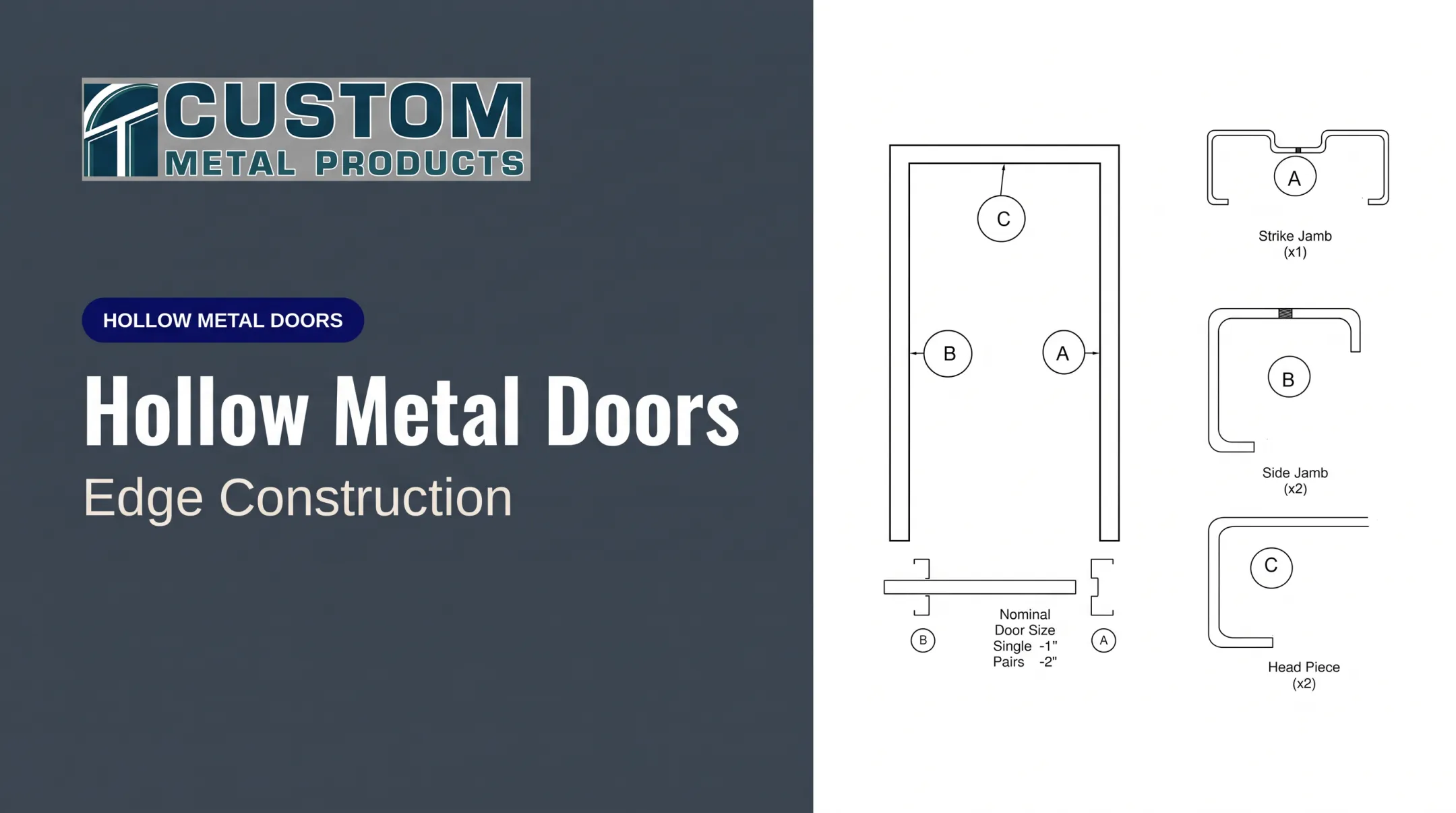

Primary Frame Components
Every typical detail shows the same core elements:
- Jambs and head
- Soffit or throat
- Stops and rabbets
- Anchors
- Hardware preparations for hinges and strikes
- Sill or floor conditions, where applicable
Profile matters as much as the component list. Throat depth, material gauge, and whether the frame is welded or knocked-down (KD) all change how the detail reads. A welded frame arrives as one rigid unit; a KD frame ships flat and assembles on site.

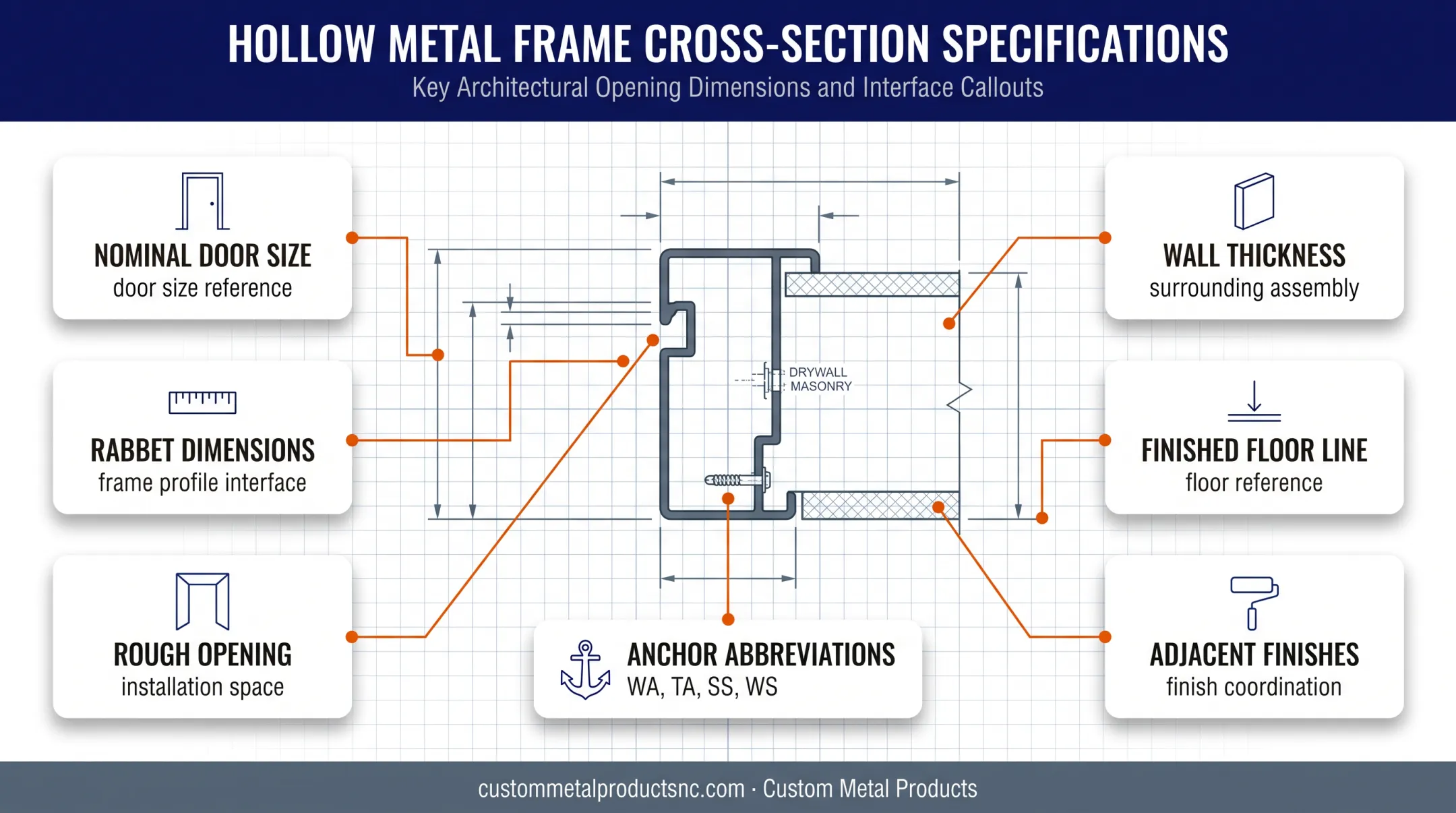

Reading Dimensions and Interfaces
A usable detail ties the nominal door size to the frame's rabbet dimensions, the rough opening, wall thickness, finished floor line, and adjacent finishes, all in one drawing. Don't rely on abbreviations without a legend. If a detail labels anchors as WA, TA, SS, or WS, spell them out (for example, wall anchor, T-anchor, steel-stud anchor, wire/masonry anchor) for anyone who isn't reading that sheet daily.
When You Need an Engineered Detail
Standard frame details work for standard openings. A project-specific or engineered detail becomes necessary when openings involve:
- Fire ratings beyond a basic label
- Unusual wall assemblies or thicknesses
- High-traffic or high-abuse locations
- Security requirements
- Oversized doors or unusual hardware
- Structural movement or unusual loading
In any of these cases, a qualified design professional needs to verify the requirement. A generic detail sheet is a starting point, not a substitute for project-specific engineering.
Common Hollow Metal Frame Details by Wall Condition
The same frame profile can require completely different anchors depending on what it's being set into. Wood stud, steel stud, new masonry, and existing masonry openings each call for a different attachment method, and mixing them up is a common ordering mistake.
| Wall condition | Typical anchor | Key coordination point |
|---|---|---|
| Wood stud | Wood stud (WS) anchor | Confirm stud type before fabrication |
| Steel stud | Steel stud (SS) anchor | Match anchor to stud gauge and position |
| New masonry | T-strap, stirrup, or wire (WA) anchor | Embed in mortar joints as the wall is built |
| Existing masonry | Expansion-bolt or existing masonry (EM) anchor | Confirm substrate condition before drilling |
Stud-Wall Frames
Welded frames set in stud partitions use steel jamb anchors, at least 18 gauge, secured inside each jamb. Whether the anchor is a wood stud, steel stud, or universal type depends on what the stud is made of, which needs confirming before fabrication, not after the frame shows up on site.
Jamb depth, stud layout, wall thickness, and the number of finish layers on each side all affect throat dimensions. A frame overlapping a wall needs a throat 1/8 inch greater than the dimensioned wall thickness to absorb minor irregularities.
New Masonry Frames
Masonry-wall frames use adjustable T-strap, stirrup, or wire jamb anchors, at least 16 gauge steel or 0.156-inch steel wire. Stirrup straps run at least 2 by 10 inches.
These anchors embed in mortar joints as the wall goes up. The frame has to be set, plumbed, and braced before masonry reaches it, then rechecked as coursing progresses.
Existing Masonry Frames
Where the wall is already built, frames rely on expansion-bolt or mechanical fasteners driven through the frame into the existing substrate. Field verification isn't optional. Before drilling, check:
- Wall cavity contents
- Substrate strength for mechanical anchors
- Concealed services or reinforcing steel in the drill path
Special and Replacement Conditions
Retrofit frames, slip-on units, and drywall-return conditions come up when the opening already exists and full wall-cavity access isn't available. Field verification matters even more, since an irregular existing opening or a wall thickness that doesn't match the original plans will throw off a frame ordered from drawings alone.
Welded vs. Knocked-Down Frames
Wall condition also drives whether a welded or knocked-down (KD) frame is the better fit. Welded frames arrive as one rigid, fully assembled unit, useful where durability and a finished look matter most. Knocked-down frames ship flat and get assembled on site, which can simplify handling on tight job sites.
At drywall partitions, KD frames are typically pressure-fit into place after the partition goes up, anchored at the base of each jamb with additional anchors at the mitered corners. Which type fits your opening comes down to product data and project spec, not a blanket rule.
How to Read, Specify, and Coordinate a Metal Frame Detail
Read a frame detail from the outside in:
- Wall assembly
- Opening dimensions
- Frame profile
- Anchor locations
- Door relationship
- Hardware preps
- Finish interfaces
Skip any one of those steps and you risk ordering a frame for the wrong wall.
Coordinating Door, Frame, and Hardware Schedules
Before a frame goes to fabrication, verify these fields match across all three schedules:
- Opening number
- Door size, handing, and swing
- Frame type and wall type
- Hardware group
- Glazing or louver requirements
- Fire rating and finish
A mismatch here doesn't just cause paperwork headaches. It causes incorrect hinge, strike, closer, or electrified-hardware preparation, usually discovered only after the door's already on site.
Information Needed Before Requesting a Quote
Pull these dimensions from approved architectural drawings, and field-verify anything the drawings don't confirm:
- Nominal door size
- Frame throat or wall thickness
- Rough opening and elevation
- Floor condition and anchor type
- Material, gauge, and finish
- Handing, hardware preps, and delivery sequence
Rough Openings and Tolerances
The rough opening has to allow for the frame itself plus shimming, plumbing, anchoring, and finish coordination. There's no single universal allowance here.
HMMA 840-24 notes that varied anchoring methods across wall types prevent a single definitive rough-opening standard, which is why the manufacturer's specified installation detail—not a rule of thumb—should drive the number.

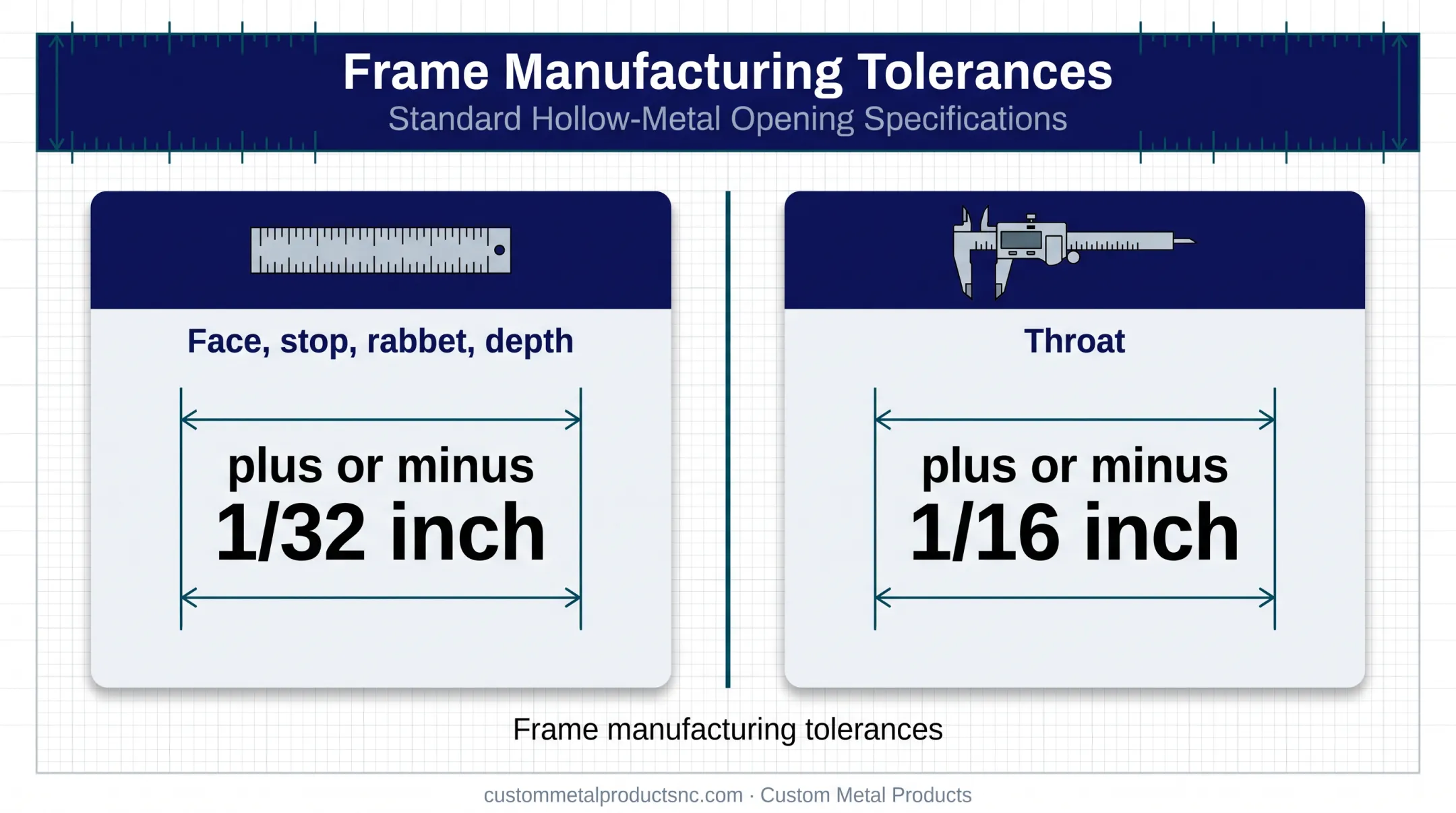

Frame manufacturing tolerances still run tight: face, stop, rabbet, and depth typically hold to ±1/32 inch, with throat at ±1/16 inch.
Fire-Rated Details
A rated opening is the door, frame, glazing, hardware, wall construction, and labels acting as one tested assembly—not a rated door bolted into any frame.
Custom Metal Products manufactures UL-labeled fire-rated hollow metal doors and frames tested to NAAMM/HMMA procedures. The label and the tested configuration have to match; not every door-and-frame pairing carries the same rating.
Pre-Submittal Checklist
Before fabrication starts, confirm these documents and conditions all agree:
- Architectural details
- Door and hardware schedules
- Specifications
- Shop drawings and product data
- Field conditions
Route any discrepancy to the architect, engineer, hardware consultant, or manufacturer for written clarification before the order is released.
Selecting Materials, Ratings, Finishes, and Frame Configurations
Frame selection starts with how the opening gets used. These factors drive material and gauge choice:
- Traffic level and abuse exposure
- Security needs
- Moisture or coastal exposure
- Cleaning chemicals
- Adjacent wall finish
Material and Finish Decisions

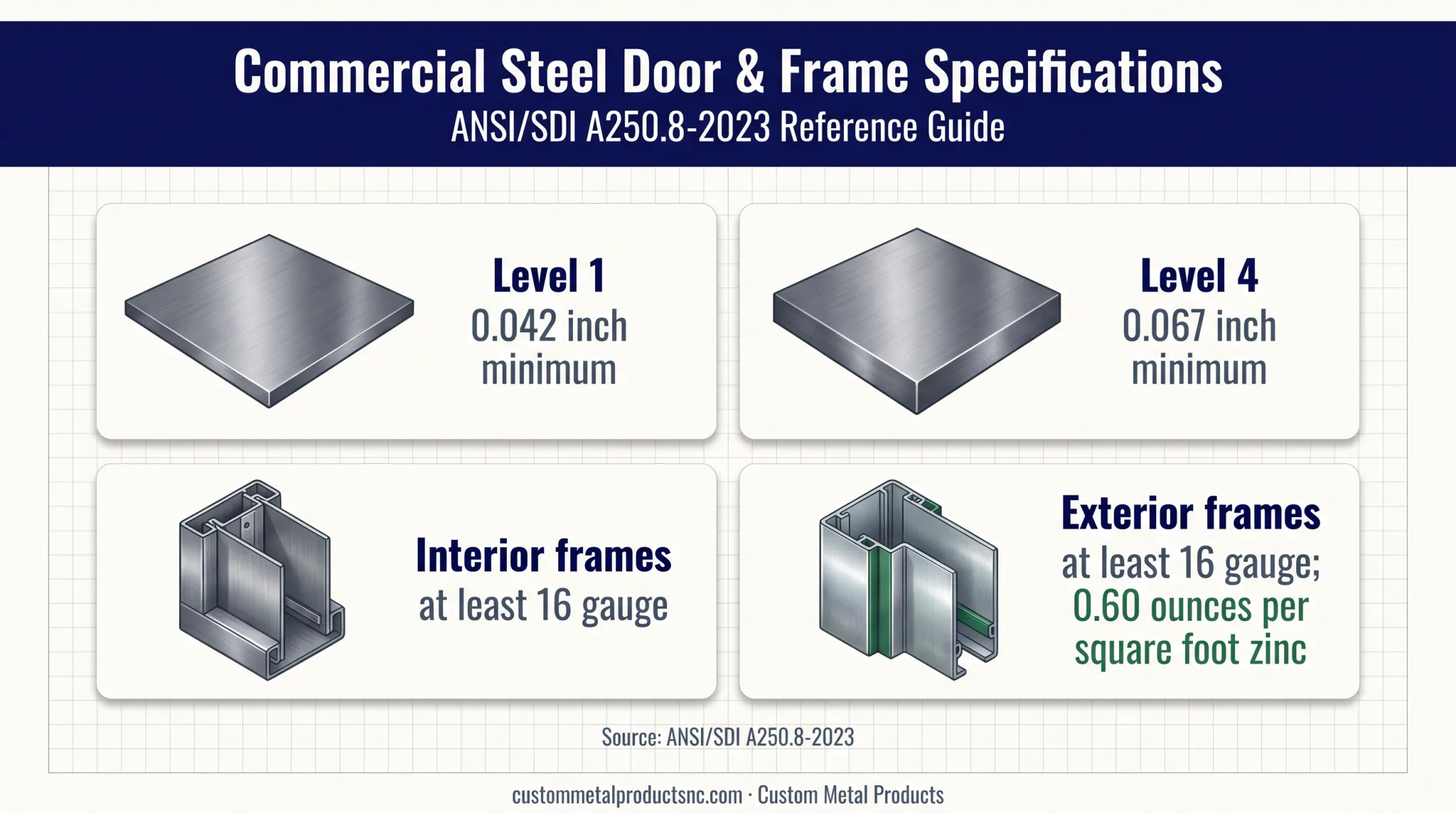

Steel thickness is specified by minimum decimal thickness and performance level, not just a gauge number. ANSI/SDI A250.8-2023 sets minimum frame steel thickness from 0.042 inch at Level 1 up to 0.067 inch at Level 4, with MSG gauge callouts serving only as a reference.
Interior frames typically run at least 16 gauge. Exterior frames need at least 16 gauge with a hot-dip zinc coating of at least 0.60 ounces per square foot. Common commercial paths also include A60 galvannealed steel and stainless where corrosion or hygiene demands are higher.
Check the current project spec and manufacturer data before assuming a durability claim applies. Coating and thickness requirements shift by exposure and application.
Matching Configuration to the Opening
Single openings, pairs, borrowed lites, sidelites, transoms, and corner conditions each need a different frame configuration and hardware reinforcement. Custom fabrication earns its keep when:
- The opening is nonstandard
- A schedule changes late in the project
- The frame needs a cut-and-notch assembly instead of a standard weld
Custom Metal Products fabricates both stock and custom welded frames, along with custom hollow metal doors and engineered opening assemblies like sidelites and transoms, for commercial customers and distributors. Its estimating team works from project specs and schedules to translate those requirements into an order. That support matters when a late change leaves little time to get a frame right.
Installation, Inspection, and Common Coordination Mistakes

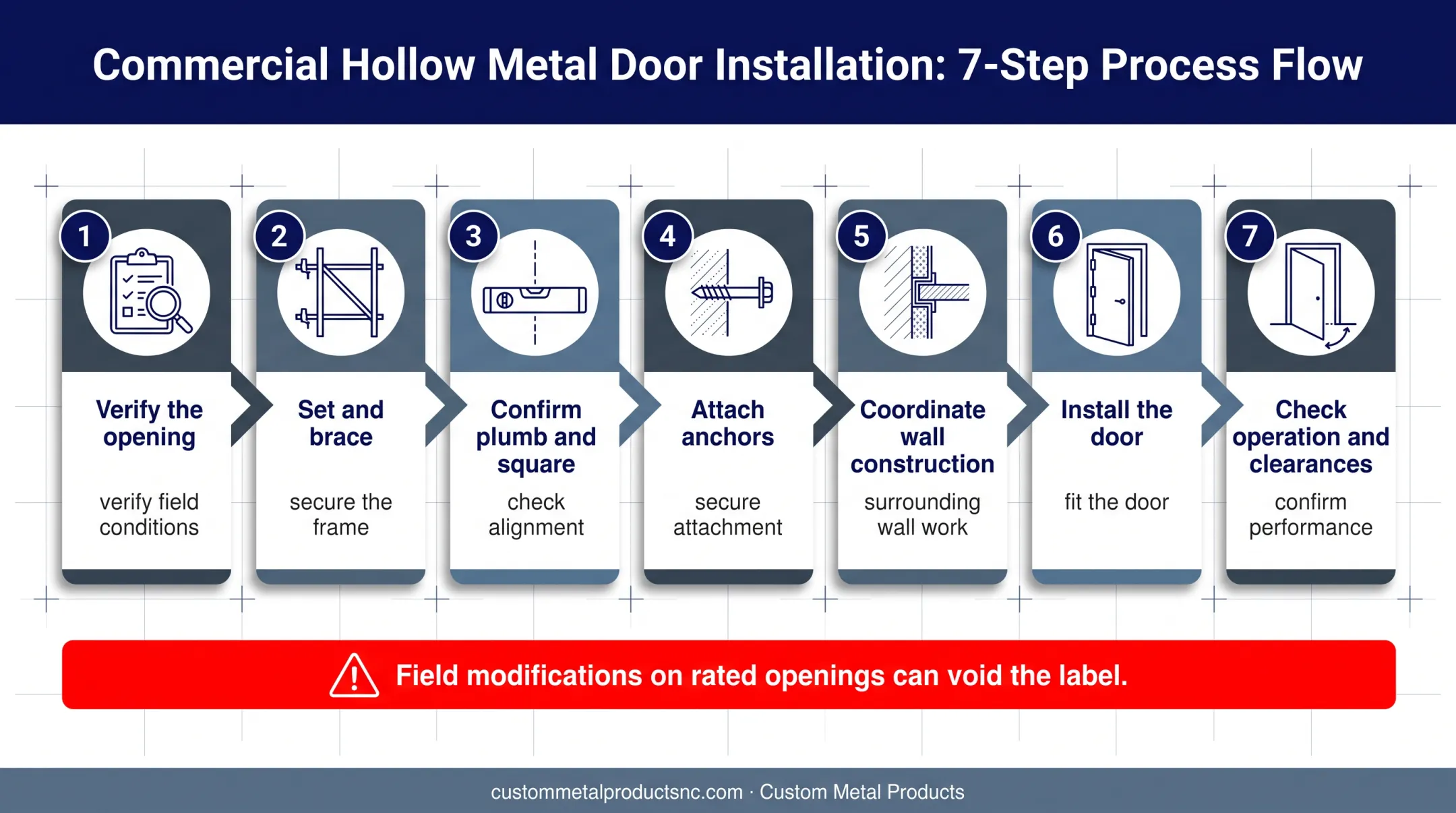

Installation follows the same sequence regardless of wall type:
- Verify the opening
- Set and brace the frame
- Confirm plumb and square
- Attach anchors
- Coordinate the surrounding wall construction
- Install the door
- Check operation and clearances
Errors That Cause Rework
Most frame problems trace back to one of these:
- Selecting anchors before confirming wall type
- Using the wrong throat depth for the finished wall thickness
- Overlooking floor elevation or threshold condition
- Failing to coordinate hardware reinforcements with the actual hardware set
- Omitting fire-rating requirements from the order
- Relying on field dimensions that were never actually verified
Any one of these can turn a straightforward install into a field modification, and field modifications on a rated opening can void the label.
Quality-Control Checks Before Close-In
Before the wall closes around the frame or the project moves to turnover, check:
- Frame alignment and squareness
- Anchor engagement and weld or fastener condition
- Door-to-frame clearances (commonly held to 3/16 inch at head and jambs)
- Hinge and strike operation
- Label visibility on rated openings
- Finish damage and hardware-package compatibility
Document any deviation and get written approval for field modifications that could affect performance or rating. Verbal sign-off doesn't hold up when an inspector asks for paperwork.
Delivery and Job-Site Coordination
Packaging, storage, and delivery sequencing affect both damage prevention and installation timing. Doors and frames that sit unprotected on a job site pick up dings before they're ever installed. Custom Metal Products runs a dedicated truck fleet with quick-ship and direct-to-job-site delivery on routes from the Carolina coast through Detroit, the Ohio Valley, and Nashville. Standard frame lead times run 5 to 7 business days. Confirm current lead times directly, since production schedules shift with order volume and specification complexity.
Frequently Asked Questions
What is a metal frame detail?
A metal frame detail is a drawing or spec section showing a frame's dimensions, components, anchorage, wall interface, and installation requirements. It's what installers and estimators use to confirm the frame matches its opening.
What are the main parts of a hollow metal frame?
The core parts are jambs, head, soffit or throat, stops, and rabbets, plus anchors and hardware reinforcements for hinges and strikes. Some openings add sill or floor conditions and project-specific preparations.
What types of anchors are used for hollow metal frames?
Common types include wood stud, steel stud, universal stud, wire or strap masonry anchors, and existing masonry expansion-bolt anchors. The wall condition, not preference, determines which one is correct.
How do you determine the rough opening for a hollow metal frame?
The rough opening comes from the approved frame and door data, the wall construction, installation tolerances, and the manufacturer's installation instructions. No single universal formula applies across every wall type.
Are hollow metal frames fire-rated?
Some frames are listed and labeled as part of a tested, rated opening assembly. The actual rating depends on the complete combination of door, frame, hardware, glazing, wall construction, and installation, not the frame alone.
What information is needed to order a custom hollow metal frame?
You'll need opening size, wall type and thickness, frame profile, handing, hardware preparations, fire rating, finish, anchor condition, quantity, and required delivery timing. Missing any of these usually means a revised quote.
