Introduction
Mortise lock door prep isn't a quick drill-and-go task. It's a coordinated fit between the lock case, the door edge pocket, trim openings, the frame strike, internal reinforcement, and door handing.
Get one dimension wrong and the whole opening suffers. Many project teams underestimate this, treating mortise prep like any other hole in a door.
Have a qualified commercial door and hardware installer, hollow metal fabricator, locksmith, or trained team member complete or verify prep for the specific lock system.
Incorrect prep causes:
- Binding locks and misaligned trim
- Weak latch engagement
- Damaged doors or frames
On labeled fire-rated openings, incorrect prep can also void a warranty or violate the listing entirely.
This guide walks through the full workflow: hardware selection, template review, door and frame preparation, installation, and final validation before an opening is accepted.
Key Takeaways
- Mortise prep cuts a rectangular pocket in the door edge; it's not interchangeable with 161 cylindrical or bored lock prep.
- Always work from the exact current template for the selected lock model, not a generic mortise dimension.
- Treat the door and frame as one coordinated assembly, especially on hollow metal and fire-rated openings.
- Confirm latch, deadbolt, trim, strike engagement, and egress function before the opening is signed off.
Prerequisites, Safety, and Tools Required
Before any cutting or drilling starts, lock down the specifics: manufacturer, model, function, handing, trim style, cylinder type, door material, door thickness, and intended use. Skipping this step is where most prep failures start.
"Mortise prep" isn't one universal spec. Pocket length, width, depth, faceplate size, lock centerline, backset, spindle location, and mounting holes vary by manufacturer and product line.

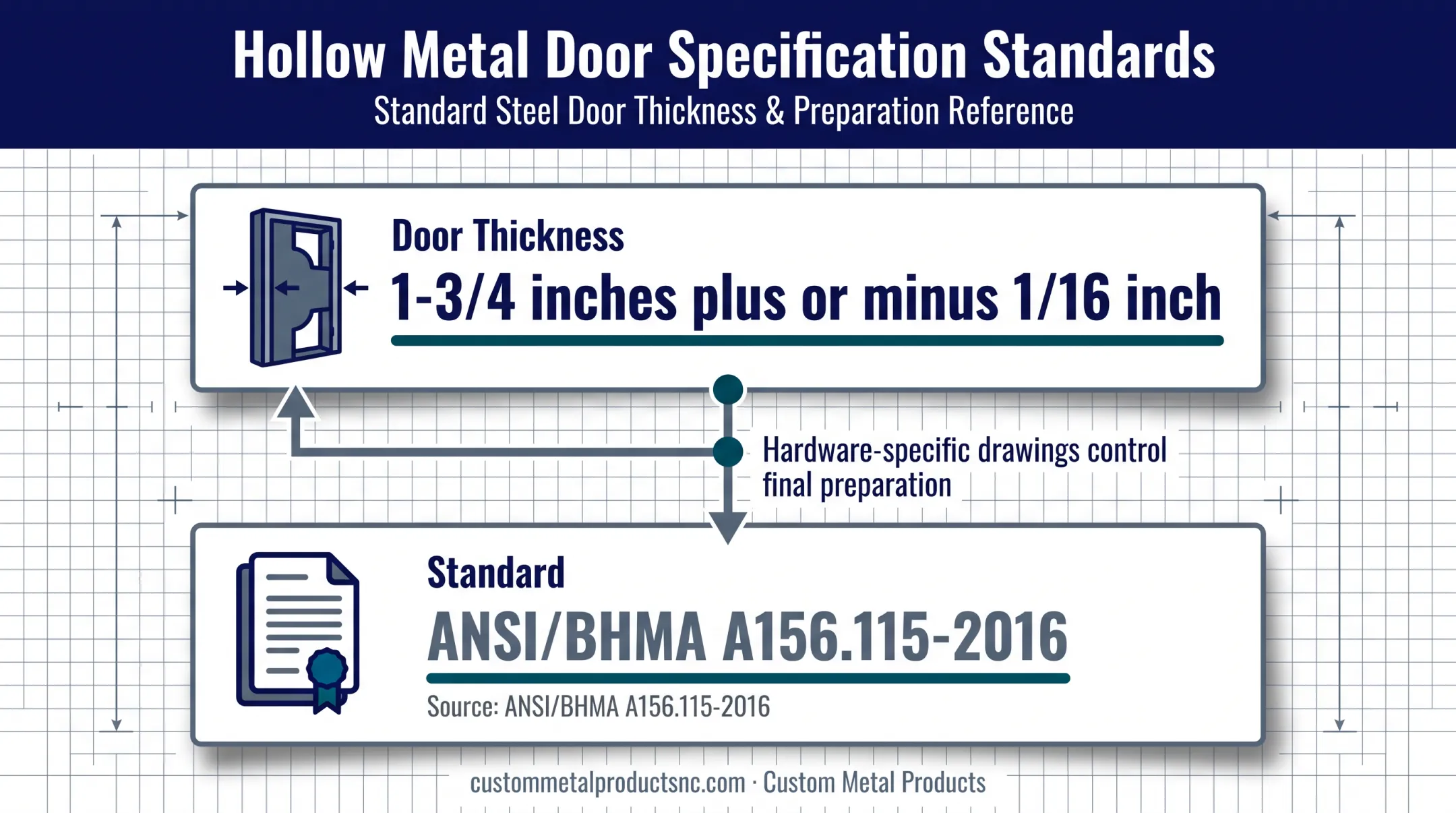

ANSI/BHMA A156.115-2016 standardizes many steel-door and frame hardware preparation dimensions, but those drawings are tied to the specific hardware—not one blanket cutout for every mortise lock. Hardware Preparation in Steel Doors and Frames covers doors 1-3/4 inches thick, plus or minus 1/16 inch, unless the hardware manufacturer specifies otherwise.
Confirm Construction and Reinforcement
- Verify door material (wood, hollow metal, or other) and confirm the lock’s required internal reinforcement is present
- Coordinate frame prep with the selected strike: pocket, faceplate, tap pattern, plaster guard, reinforcement, silencers, and gasketing clearance
- On fire-rated or labeled openings, follow the listing, project specs, manufacturer instructions, and the authority having jurisdiction
UL's fire door guidance sends modifications outside NFPA 80's permitted provisions to the listing laboratory for review before a code authority can approve them. UL's Doors, Windows and Related Hardware guide covers this process.
Do not proceed if:
- The hardware model is unknown or the template is unavailable
- Door thickness does not match the hardware
- Prep conflicts with glazing or reinforcement
- The modification could compromise a labeled assembly
Safety before cutting:
- Wear eye and hearing protection; use dust control suited to the door material
- Secure the door or leaf so it cannot shift while cutting or drilling
- Follow manufacturer instructions for power tools, jigs, and hole saws
- Stop if the planned cut falls outside the listing or NFPA 80 allowances
Tools and Supporting Components
Field verification and limited installation work call for:
- The approved lock template and manufacturer installation instructions
- Tape measure, combination square, and marking tools
- Mortising equipment or router jigs suited to the door material
- Drills, bits, hole saws, or punches as specified
- Correct fasteners for the door and frame construction
Confirm these components are on hand before cutting:
- Mortise lock case, armor front, and trim set
- Cylinder, matching strike, and screws
- Frame reinforcement, silencers, and any electrified or access-control hardware
Hollow metal preparation often needs shop-grade equipment a field crew simply doesn't carry. Factory-prepped openings save that rework later.
How to Prepare a Door and Frame for a Mortise Lock (Step-by-Step)
Shortcuts here create problems you can't undo. Every step below should be checked against the approved hardware template, not a generic mortise-lock measurement pulled from memory.

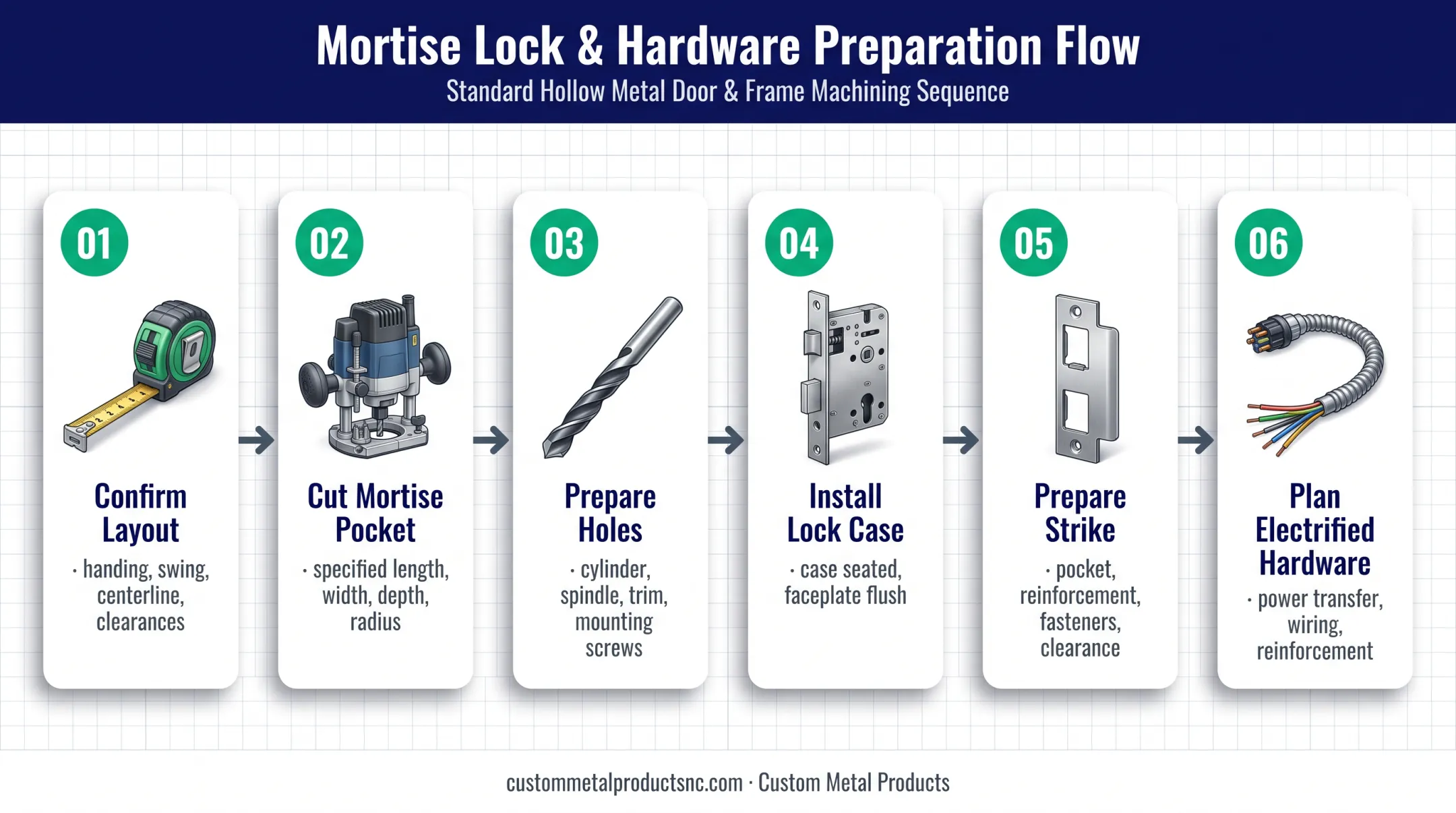

- Confirm the opening layout. Verify door handing and swing, lock centerline, door thickness, backset, edge clearances, glazing location, and clearance from hinges, exit devices, or closers.
- Lay out and cut the mortise pocket. Match the manufacturer's specified length, width, depth, and radius exactly. Keep it square and clean so the lock case seats fully without forcing.
- Prepare face and edge holes. Cut openings for the cylinder, spindle, escutcheon, lever, thumb turn, and mounting screws using the exact template center-to-center dimensions.
- Install the lock case and armor front. The case should seat without distortion. The faceplate must sit flush with the door edge, and fasteners must suit the door construction.
- Prepare the frame strike. Include the strike pocket, reinforcement, tapped holes or through-fasteners, plaster guard, silencers, and gasketing clearance where required.
- Address electrified hardware upfront. If the opening includes access control, plan power transfer routing, wiring paths, and reinforcement before fabrication. Improvising this mid-installation almost always creates a redo.
On factory-built openings, hardware cutout dimensions typically run to template dimensions plus 0.015 inches (no minus tolerance), with hardware location held to plus or minus 1/32 inch. That precision matters. A pocket that's a hair too tight forces the lock case; one that's too loose lets it rack under use.
Working with hollow metal fabrication? When ordering custom commercial doors or frames, send Custom Metal Products the selected mortise lock model and current template before production starts.
Doors are mortised and reinforced at the factory only for fully templated hardware, following the approved hardware schedule and supplier-provided templates. That upfront coordination avoids field modifications on an opening that's already built.
Post-Installation Checks and Validation
Once components are in, don't call it done until you've run through a full validation pass.
Visual and dimensional check:
- Lock case fully seated, faceplate and trim flush
- Fasteners secure and appropriate for the material
- Frame strike positioned correctly
- No cutting damage to reinforcement, finishes, or fire labels
Function check:
- Cycle the latchbolt, deadbolt, cylinder, lever, and thumb turn per the manufacturer's instructions
- Test privacy or classroom function if applicable
- Verify any electrified release or access-control function
Operation check:
- Close the door slowly; the latch should enter the strike on its own
- Confirm no pushing, pulling, lifting, or slamming is needed
- Verify the deadbolt throws fully and retracts without binding
- If either fails, stop and recheck alignment before forcing anything
Confirm the opening still meets egress, accessibility, and fire-door requirements for its application. The 2024 IBC generally limits egress-door unlatching to one motion in a single direction, with specific exceptions for certain occupancy types.
Check those rules against your opening in 2024 IBC Chapter 10, Means of Egress—do not assume compliance.
Record the final hardware model, function, handing, template used, installer checks, and any approved deviations. That record keeps the next maintenance tech from redoing your coordination work.
Common Installation Problems and Fixes
Three issues show up more than any others in the field. In each case, the manufacturer's template and a qualified commercial hardware source should control the correction, not a field guess.
| Problem | Likely Cause | High-Level Fix |
|---|---|---|
| Lock case won't seat, armor front stands proud, or case binds | Pocket laid out from a generic dimension instead of the template, wrong depth, or off the specified centerline | Stop forcing the case. Compare the opening to the approved template and have a qualified fabricator make an approved correction. |
| Latchbolt rubs strike, deadbolt won't enter, door must be pulled shut | Incorrect backset or centerline, missing silencer or gasketing clearance, wrong strike model, or frame movement | Check the door-frame relationship, strike template, plumb and square conditions, and reinforcement before removing any metal. |
| Escutcheon won't fit, fasteners can't engage, or field cutting hits a labeled assembly | Hardware changed after fabrication, trim differs from the template, or reinforcement is missing | Pause work. Consult the door, frame, and hardware manufacturers and get approval for a listed correction rather than an undocumented modification. |

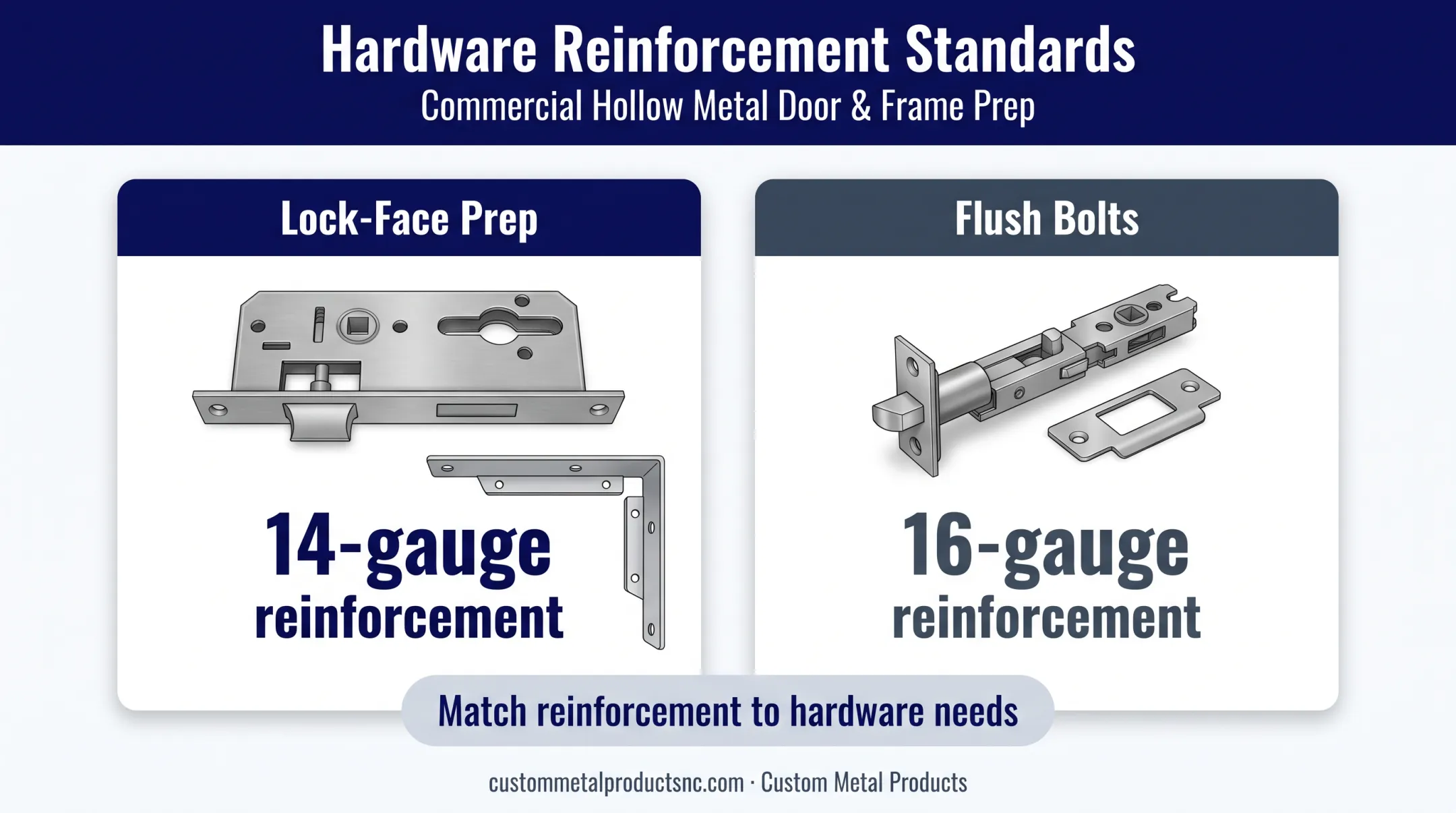

Two reinforcement mismatches often sit behind binding or misalignment:
- Lock-face prep typically needs 14-gauge reinforcement
- Flush bolts and other surface-mounted hardware typically use 16-gauge
If the reinforcement does not match what the lock needs, correct that first before chasing the visible symptom.
Pro Tips for Preparing a Mortise Lock Door Effectively
A few habits separate smooth installations from constant rework:
- Lock the hardware schedule early. Issue exact lock templates before fabrication; a late substitution is a full compatibility review, not a minor tweak.
- Document existing openings first. Photograph and measure the lock case, faceplate, trim, strike, thickness, handing, and markings before ordering.
- Coordinate related hardware together. Hinges, closers, exit devices, access control, glazing, and gasketing compete for space around the mortise case.
- Protect the opening. Cover it during fabrication and installation so weld spatter, grout, compound, and paint cannot obstruct the pocket or strike.
- Call a specialist for unusual work. Fire-rated, electrified, narrow, lead-lined, high-security, or unclear openings need expert review.
If you're ordering custom hollow metal doors or frames for a project with specific mortise hardware, send the lock model and current template to Custom Metal Products before releasing the order. That single step lets the fabrication team confirm the prep will work before the opening reaches the job site.
Conclusion
Successful mortise lock prep comes down to treating the door and frame as one assembly, not just cutting a rectangular pocket in an edge. It succeeds when you:
- Identify the exact hardware
- Follow the manufacturer's current template
- Coordinate door and frame prep together
- Protect labeled assemblies
- Test every function before turnover
Resolve hardware compatibility questions before fabrication or field modification, not after. Custom Metal Products, based in Wilmington, North Carolina, fabricates commercial hollow metal doors and frames to order and can review mortise lock coordination when the hardware information is available upfront.
Frequently Asked Questions
What is the minimum door thickness required for a mortise lock?
Most commercial mortise preparations are built for 1-3/4 inch doors, though the exact minimum depends on the lock and door construction. Always match the cut to the selected manufacturer's template before fabrication.
What is 161 door prep?
161 door prep is a cylindrical or bored lock prep with round face and edge bores—not a mortise pocket. Use the hardware schedule and manufacturer template to confirm which prep the opening actually needs.
What is a mortise in a door?
A mortise is a recessed pocket cut into the door edge to receive the lock case. It's distinct from the armor front or faceplate, which is the visible plate covering the pocket once the lock is installed.
What are the two types of mortise locks?
Mortise locks are typically grouped as mechanical or electrified, with functions and trim varying widely in each group. Prep depth, strike, and any wiring path still follow the specific product documentation.
