Embossed Panel Hollow Metal Doors

An embossed veneer refers to an outer surface layer that has been mechanically textured or patterned with raised contours. In hollow metal door manufacturing, exterior steel face sheets are embossed with panel patterns to resemble classic paneled millwork while maintaining core commercial performance, internal insulation, and available life-safety fire ratings.

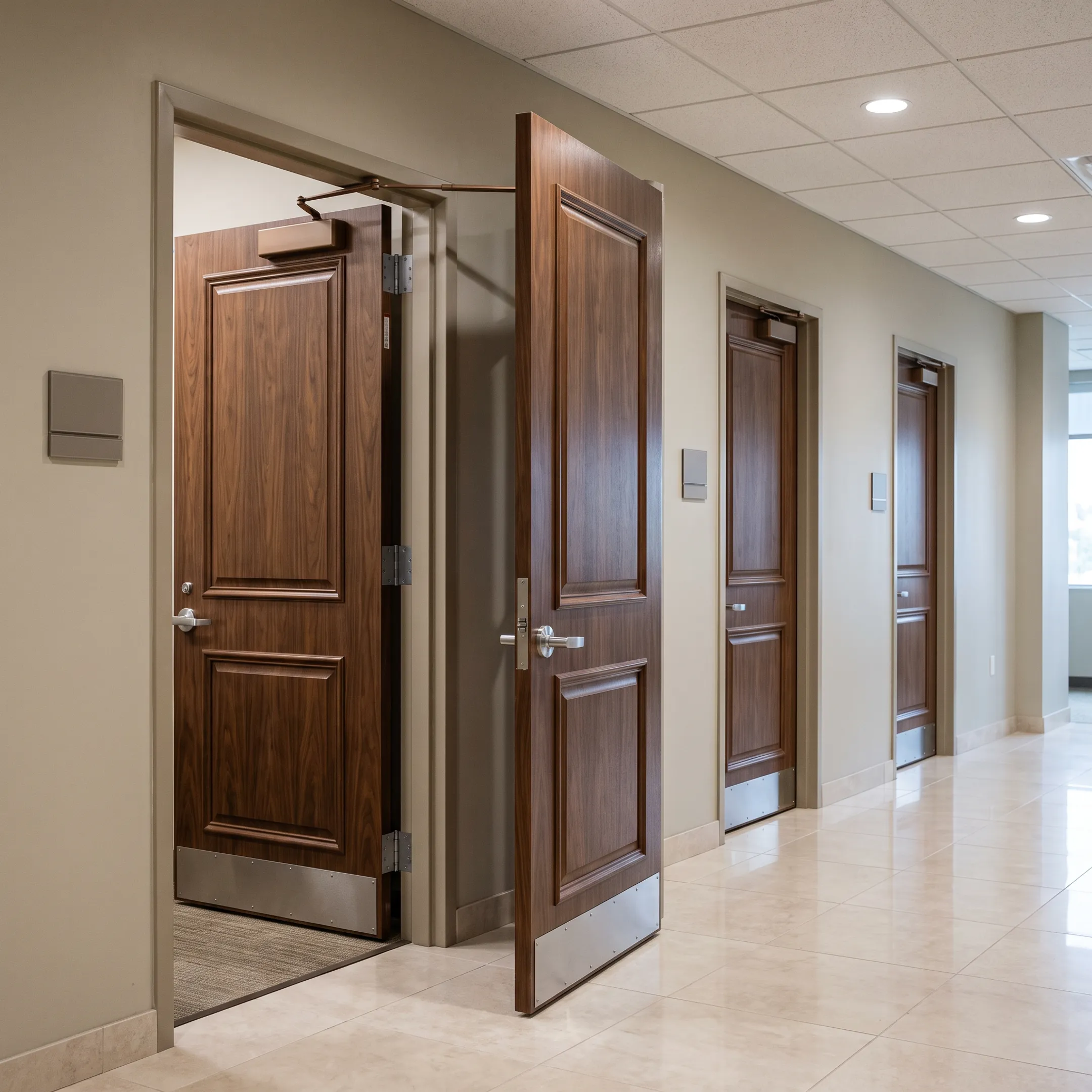

Embossed panel hollow metal doors are available in 1, 2, 4, and 6 panel configurations. These options allow commercial builders and distributors to coordinate opening aesthetics across a facility while matching architectural specifications. Doors can be ordered in 18-gauge to 12-gauge steel to accommodate varying requirements for interior or exterior heavy-traffic commercial openings.

Yes, embossed panel hollow metal doors are available with UL fire-rated certifications. These assemblies comply with NAAMM and HMMA standards, providing dependable life-safety protection for commercial egress, stairwells, and corridor openings. Fire-rated options can be built using appropriate cores such as temperature rise or steel-stiffened cores based on specific building code requirements.

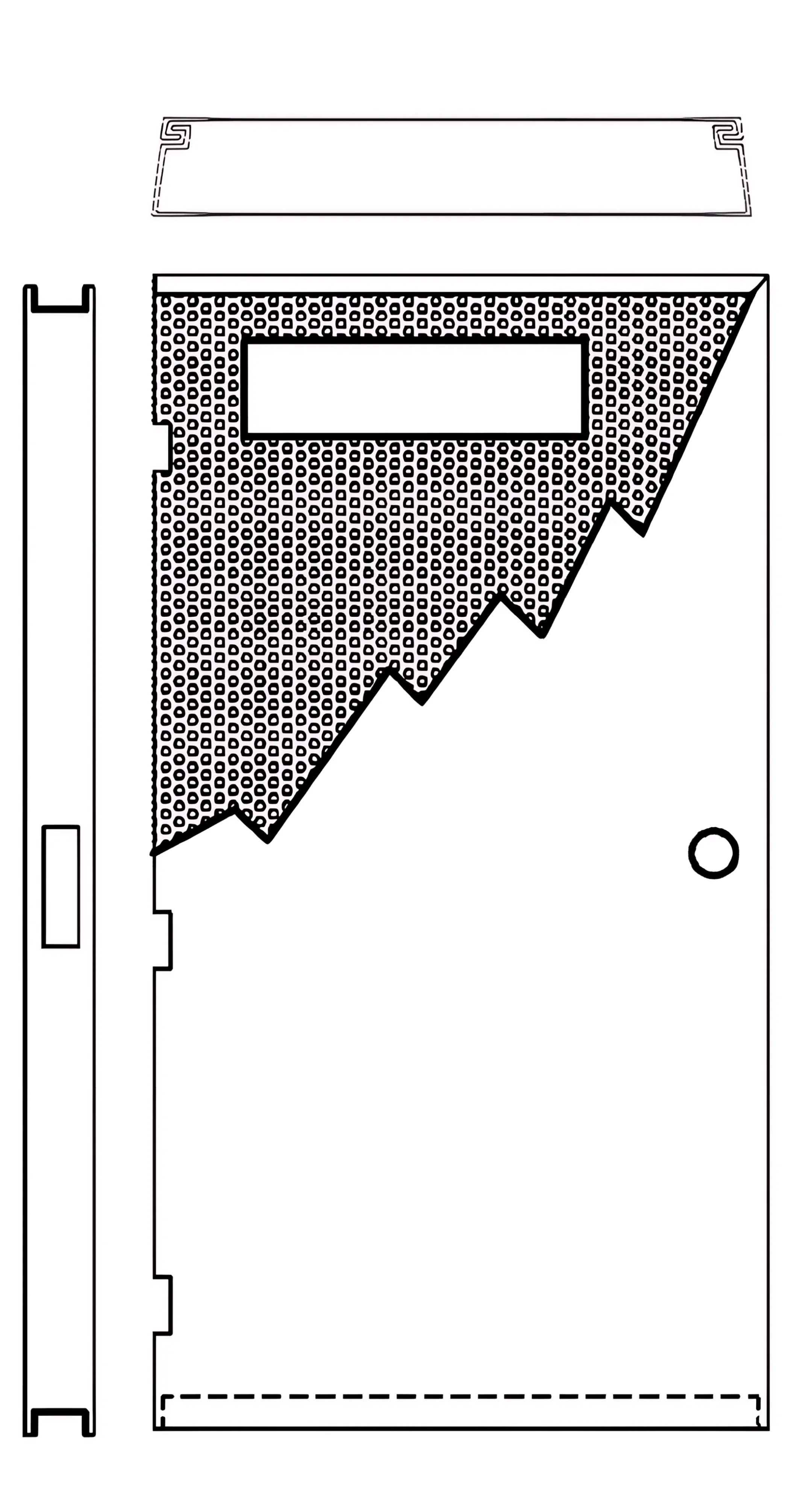

Embossed hollow metal doors can be configured with multiple internal core materials to satisfy performance specifications. Options include polystyrene, polyurethane, temperature rise, and steel-stiffened cores. The choice of core influences thermal performance, rigidity, impact resistance, and life-safety compliance, allowing doors to be tailored to standard commercial construction or fire-rated applications.

Doors are fabricated from high-grade materials including A60 galvannealed steel and stainless steel for enhanced corrosion resistance. They are manufactured in steel thickness options ranging from 18 gauge to 12 gauge, giving project managers the flexibility to specify lighter gauges for standard commercial use or heavy-gauge steel for demanding applications.

Standard door orders carry lead times of 7 to 10 business days. For urgent job site schedule changes or missed openings, quick-ship programs are available with lead times ranging from 1 to 5 business days for select products. Orders are supported by direct-to-job-site delivery options.
