Introduction
Order a hollow metal frame based on a door's nominal label alone, and you're gambling with the install. A door scheduled as "3'-0" x 7'-0" doesn't guarantee a 36-inch clear passage once hardware, stops, and the frame itself are factored in.
The 2024 International Building Code sets a general minimum clear width of 32 inches for egress doorways, measured with the leaf open 90 degrees. That's a different number than the nominal door size, the frame opening, or the rough opening in the wall.
This guide breaks down what "standard" actually means for commercial hollow metal frames: nominal sizing, frame and rough openings, jamb depth, installation tolerances, and when a project needs a custom frame instead of a stock one.
Key Takeaways
- Four dimensions matter, not one: nominal door size, frame opening, clear opening, and rough opening.
- Rough opening requirements come from the manufacturer, not a generic rule of thumb.
- Commercial frames require full coordination with the door schedule, hardware, wall type, and fire rating.
- Jamb depth depends on the full wall build-up, including sheathing, drywall, and finishes.
- Review unusual and fire-rated openings with the manufacturer before fabrication.
What Standard Door Frame Sizes Represent
A "standard door frame size" isn't a single number. It's the relationship between four measurements: the nominal door leaf, the frame opening that receives it, the clear passage once installed, and the rough opening framed into the wall.
How those terms differ:
| Term | What it means |
|---|---|
| Nominal door size | The width/height used to identify the door on a schedule (e.g., 3'-0" x 7'-0") |
| Frame opening | The opening within the frame, measured rabbet to rabbet, that receives the door |
| Clear opening | The usable passage width, measured with the door open at 90 degrees, accounting for stops and hinges |
| Rough opening | The framed wall opening needed to install and adjust the frame before finishes go on |
Standard means a commonly manufactured dimension—not a promise that your opening will match it. Two frames with the same nominal size can still need different rough openings based on face width, jamb depth, and wall type.
You can't select a frame from door-panel dimensions alone. These factors all shape the real specification:
- Wall type and jamb depth
- Frame profile and face width
- Hardware preparations
- Threshold condition and floor tolerance
- Finish build-up
That is where commercial hollow metal diverges from residential prehung units. Residential doors usually ship as a complete assembly—door, frame, and casing—built for a standard rough opening.

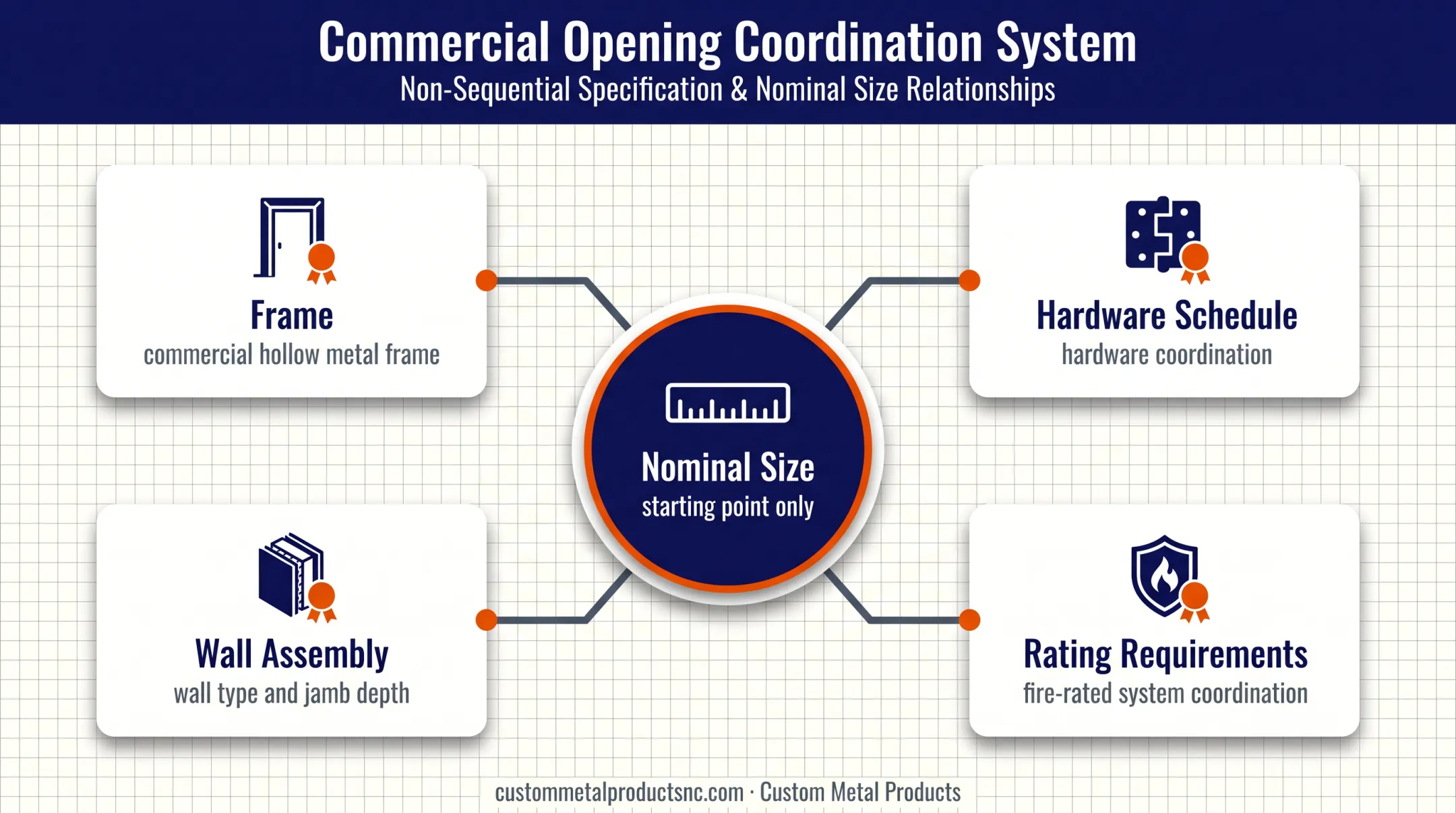

Commercial hollow metal frames are specified separately, often before the door leaf. The frame, hardware schedule, wall assembly, and rating requirements are coordinated as one system, so the nominal size is only the starting point.
The Range of Standard Frame Dimensions and Configurations

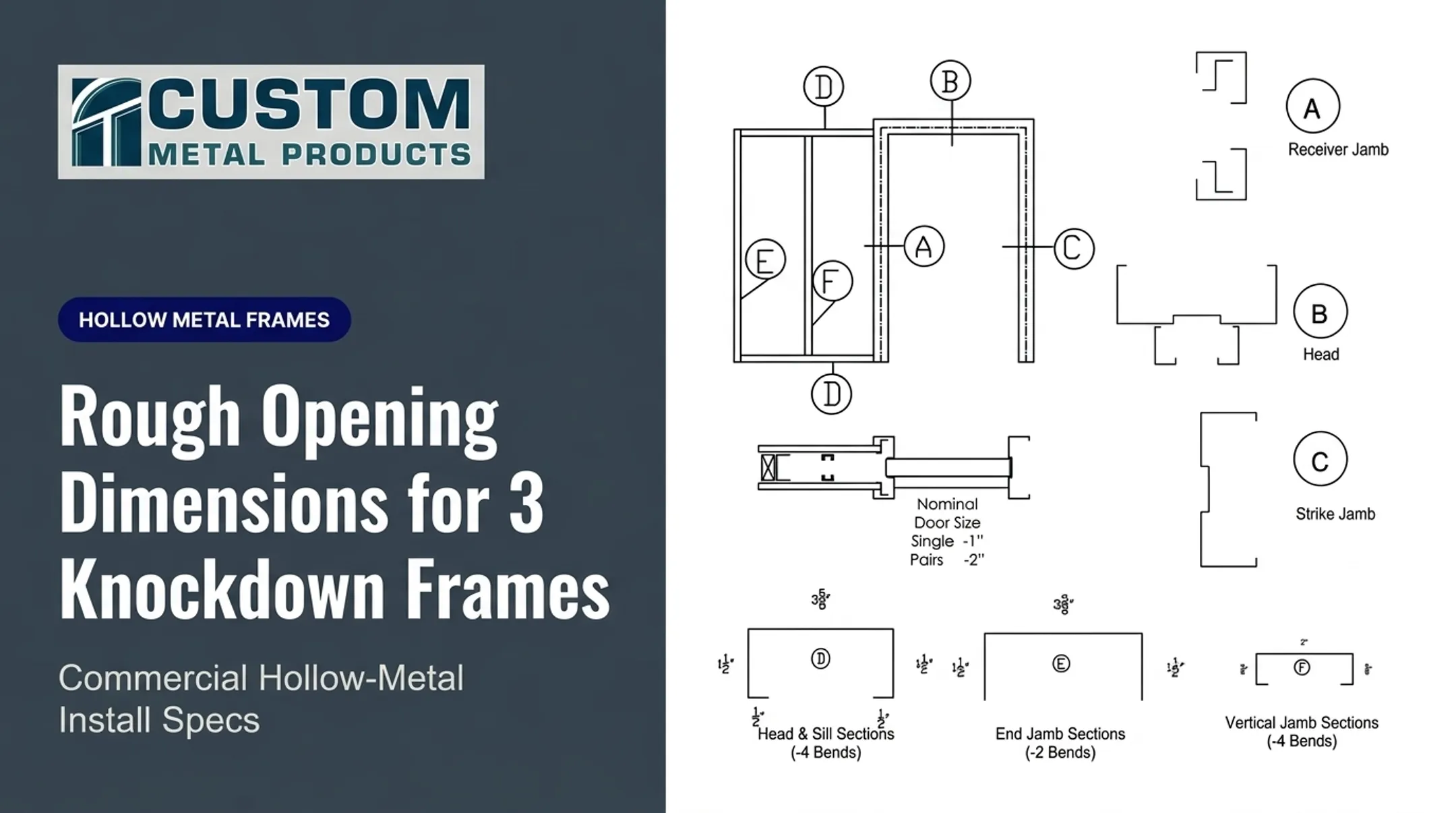

Common frame sizes are expressed by nominal door width and height. The actual frame opening and rough opening still vary by manufacturer, frame profile, and wall condition.
Nominal Door and Frame Size Relationships
Manufacturer installation data for a typical 2-inch face frame shows how the numbers stack up:
- Rough opening (2" face) = opening width + 2" to 2-3/8"
- Rough opening (1-3/4" or 1-1/2" face) = opening width + up to 2"
- Rough opening height = finished opening height + 3/4" to 1" max
- Frame width tolerance = nominal opening width +1/16", −1/32"
- Frame height tolerance = nominal opening height ±3/64"
None of these allowances are universal. They come from a specific frame's installation instructions; another manufacturer may publish different figures.
Pairs, unequal pairs, and lites change the math. A pair is not one nominal width split in half. Confirm each leaf, the active leaf, and any astragal condition on its own. Borrowed lites, sidelites, and transoms need the full frame elevation and rated-listing limits on overall size, not a scaled-up single-door example.
Frame Types and Their Dimensional Differences
Hollow metal frames come in a few distinct construction types, and each affects how the opening gets measured and installed:
- Welded frames: Factory-assembled as one unit; sized to the prepared masonry, concrete, or framed-wall opening and specified anchors.
- Knock-down (KD) frames: Shipped disassembled and joined on site; check plumb, level, square, and twist during assembly.
- Slip-on drywall (over-the-wall) frames: Installed after the finished wall is built, using corner clips and compression bars.
Custom Metal Products' over-the-wall KD drywall frames call for four No. 8 x 1/2" screws at each head corner on UL-rated units. Do not over-tighten the compression bars, or the frame can bow.
Welded frames typically go into masonry or existing-wall conditions where field assembly isn't practical. KD and slip-on frames are more common in steel or wood stud walls built out with the frame install.
Wall Thickness, Jamb Depth, and Frame Profile
Jamb depth runs from one frame face to the other. Throat size is the distance between the frame's returns. Neither is determined by the stud size alone.

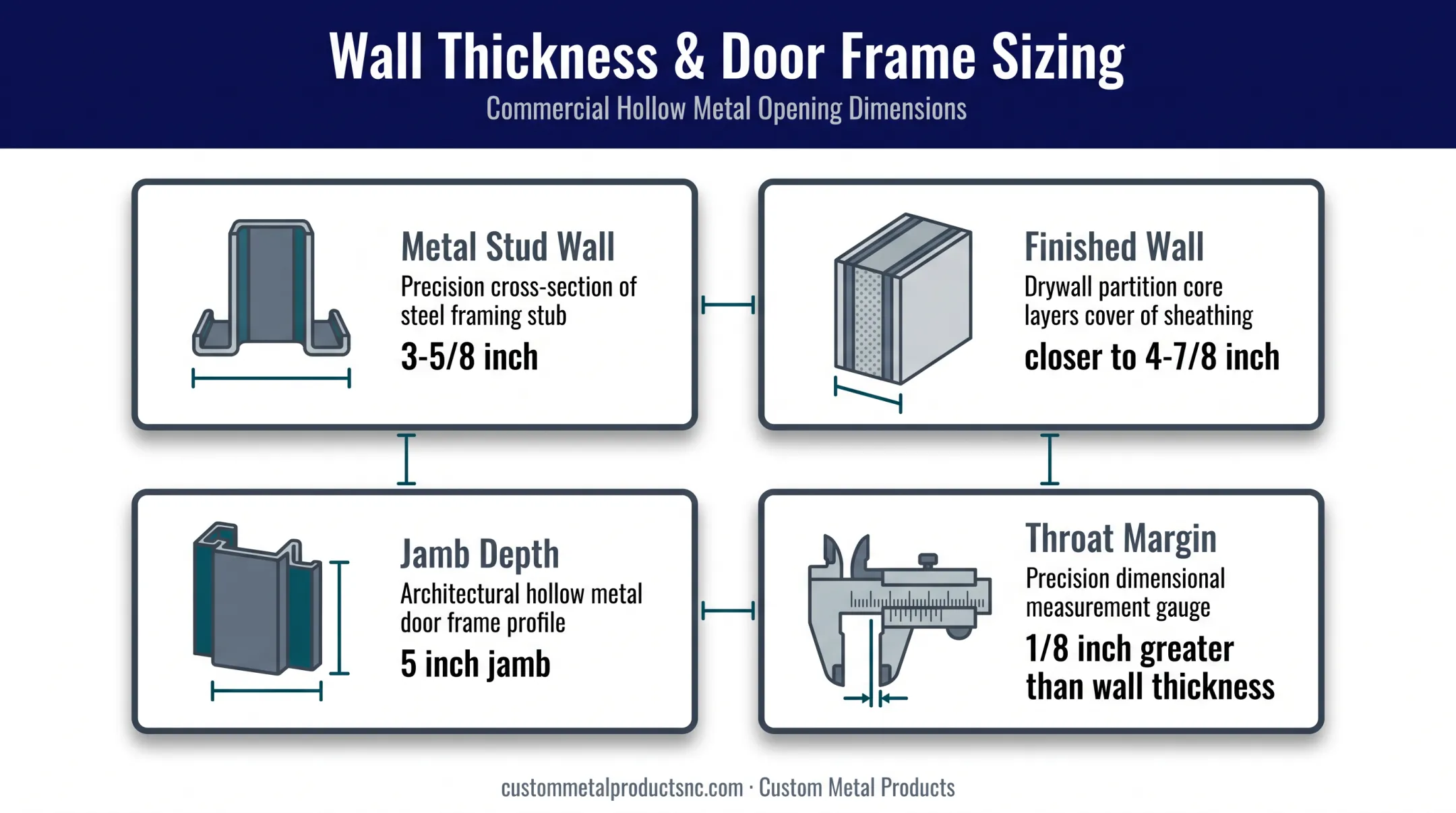

A 3-5/8" metal stud wall doesn't mean a 3-5/8" jamb. Add sheathing and drywall on both sides, and that wall may finish closer to 4-7/8", which then needs a 5" jamb depth to wrap the finished surface.
Single-rabbet jamb profiles from Custom Metal Products' frame data range from 2-1/8" minimum to 14-1/2" maximum, with throats from 2" to 13". That range covers most finished wall conditions without forcing a custom profile.
For frames that overlap a wall rather than sit flush, the throat should run 1/8" greater than the dimensioned wall thickness to absorb normal construction irregularities. That extra margin is intentional, not a fabrication error.
Fire-Rated and Accessibility-Related Dimensions
Fire-rated openings and accessible routes are complete assembly reviews, not single-dimension checks.
- Fire ratings: Listed as full door-frame-hardware systems. Custom Metal Products' fire-rated double-rabbet frames run 2-3/8" to 14-1/2" jamb depth, with max openings near 4'0" x 10'0" (singles) and 8'0" x 10'0" (pairs), by rating category.
- Accessible clear width: Under the 2010 ADA Standards, provide 32 inches minimum between the open leaf face and the stop at 90 degrees, plus required approach-side maneuvering clearance.
Do not assume either figure from a general door-width label. Verify both against the manufacturer's listing and the project's adopted code edition.
Key Technical Properties That Affect Frame Selection
Frame size alone does not determine the right opening. The frame also needs to suit the wall system, the door's weight, the hardware being installed, and the environment it will sit in.
Frame Material, Thickness, and Durability

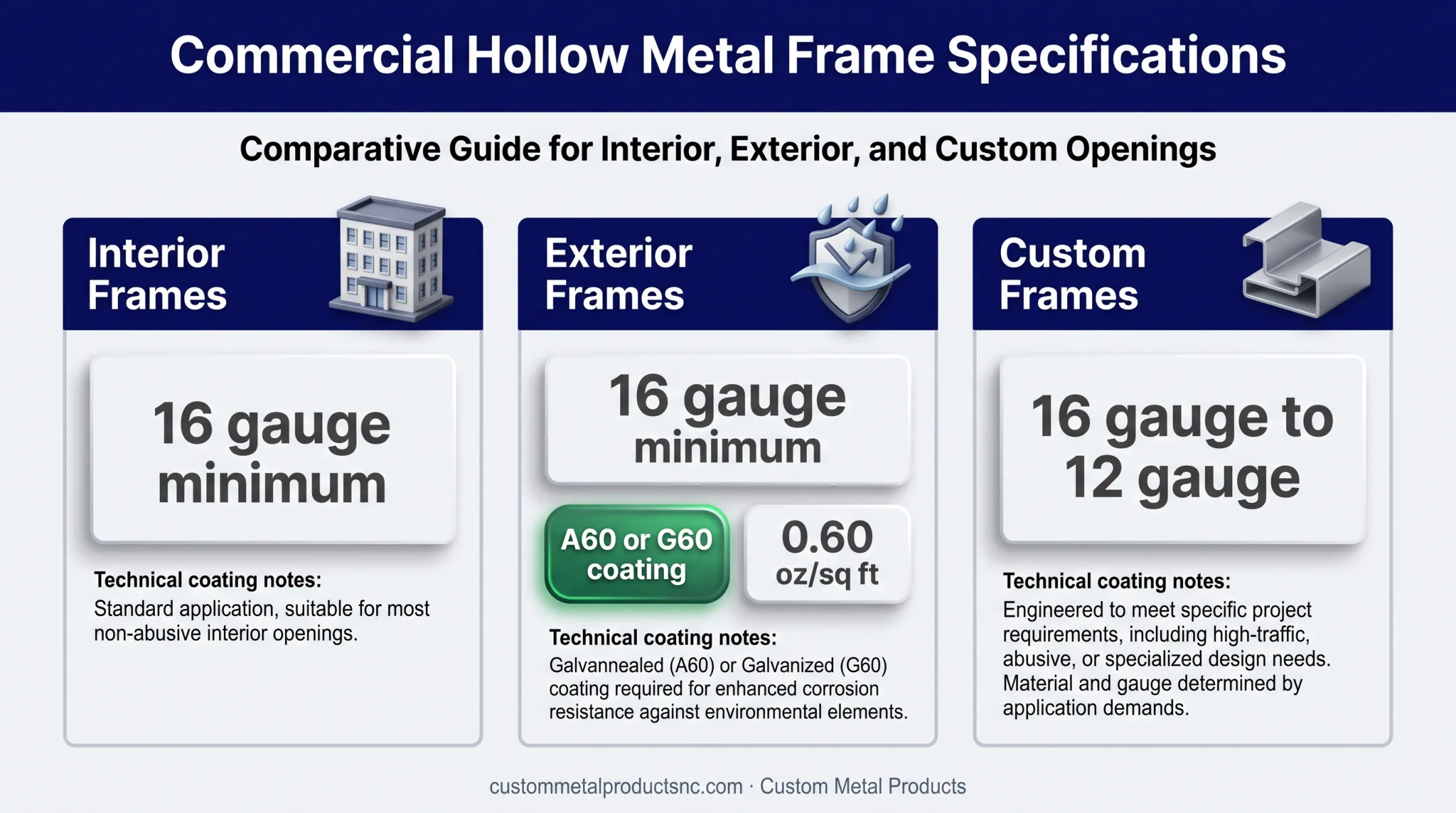

Interior hollow metal frames typically run 16 gauge minimum for metal doors. Exterior frames use the same minimum gauge but add zinc coating, commonly A60 or G60 at 0.60 oz/sq ft, for corrosion resistance. Custom Metal Products fabricates frames from 16 gauge down to heavier 12 gauge stock depending on the application, with fire-rated and standard profile options built to the same base material standards.
Hardware Preparation and Door Coordination
Hinge, strike, and closer locations directly affect how a frame gets reinforced. Typical minimums include:
- Hinge reinforcement: 7 gauge, 1-1/4" x 10"
- Strike reinforcement: 12 or 16 gauge
- Flush bolt and closer reinforcement: 12 gauge
Frames are mortised, drilled, and tapped only for fully templated mortised hardware, matched against the hardware contractor's templates. Surface-mounted hardware gets reinforcing plates instead, with drilling and tapping handled separately. Coordinate the frame schedule, door schedule, and hardware schedule before fabrication starts. Catching a mismatch after the frame ships costs far more than catching it on paper.
Manufacturing Tolerances and Field Conditions
A frame can hit every nominal dimension on the shop drawing and still perform poorly if the wall opening is out of tolerance. Standard fabrication tolerances include:
- Frame face, stop, rabbet, and depth: ±1/32"
- Frame throat: ±1/16"
- Door width and height: ±3/64"
- Door-to-frame edge clearance: maximum 3/16" at head, jambs, and between paired leaves
These figures apply to the product as manufactured. Field conditions (plumb, level, square, and floor elevation) get checked separately during installation, and both sets of tolerances need to line up for the door to operate correctly.
Finish, Environment, and Service Conditions
Coastal exposure, moisture, and heavy traffic all affect what finish makes sense. Standard practice includes a rust-inhibitive primer rated for salt spray and water fog exposure, cured before shipment. For frames headed to marine or high-humidity environments, confirm the coating spec and any additional galvanizing requirements with the manufacturer before ordering.
How to Measure and Specify a Door Frame
Treat this as a pre-order verification checklist — not a substitute for approved shop drawings or a field verification visit.
Measure the Existing Opening or Rough Opening
- Measure width at the head, middle, and sill/floor.
- Measure height at both jambs.
- Measure wall thickness at multiple points.
- Check diagonals to catch out-of-square conditions.
Record whether measurements were taken between finished surfaces or between framing/masonry — the two aren't interchangeable. If tile, base, or drywall haven't gone in yet, document the planned finish build-up separately.
Confirm the Door and Frame Schedule
Before ordering, verify:
- Nominal door width, height, and handing
- Single or pair configuration
- Frame type, jamb depth, profile, material, and finish
- Hardware preparations, glazing, and threshold
- Fire rating requirements

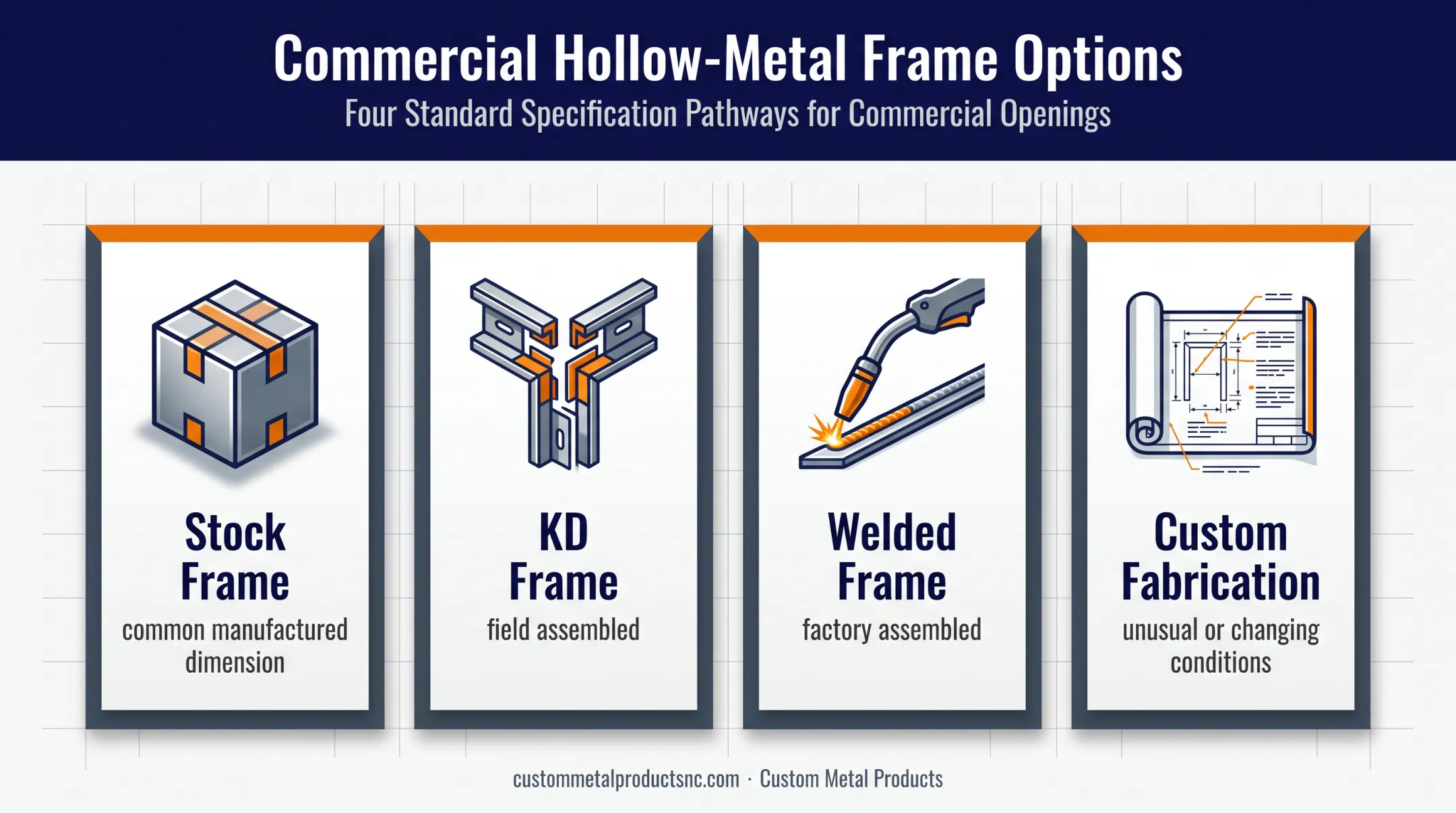

Then confirm whether the opening calls for a stock frame, field-assembled KD frame, welded frame, or custom fabrication — and check every dimension against the actual manufacturer's product data, not a generic assumption.
Account for Installation and Clearance Requirements
The installer needs room to shim, anchor, plumb, and square the frame without the door binding once it's hung. Factor in:
- Floor slope and uneven substrates
- Adjacent walls, trim, and base
- Hardware projection and door-swing clearance
- Accessible maneuvering clearance where applicable
When to Request a Custom Frame Review
Some conditions call for manufacturer input before you order anything:
- Historic or irregular openings
- Unusual wall thicknesses
- Oversized doors or special profiles
- Rated assemblies with tight listing requirements
- Last-minute schedule changes that don't match the drawings
Custom Metal Products fabricates stock and custom welded frames, including cut-and-notch (KD) assemblies, for these conditions. That includes jobs where a distributor's regular mill is backed up or a door schedule changed after the walls were framed.
Have this ready when you request a quote:
- Opening dimensions and wall construction
- Door schedule and hardware requirements
- Rating needs, quantity, and delivery timeline
Complete details speed up the manufacturer review significantly.
Implications of Using the Wrong Frame Size
Getting the frame size wrong doesn't just create a cosmetic gap. It cascades into installation, safety, and schedule problems.
Installation and Operation Problems
An undersized rough opening forces installers to compress or modify the frame, which can throw off anchorage and alignment. An oversized opening leaves too much play for shimming, which can leave the frame out of square even after it looks "installed." Either way, you end up with:
- Binding doors
- Excessive or uneven gaps
- Poor latching
- Misaligned hinges
Safety, Compliance, and Performance Risks
Frame size mistakes can affect more than daily operation. Fire-rated assemblies depend on the exact tested configuration. Altering a rated frame in the field without manufacturer or listing-agency approval can void the rating.
Other requirements also hinge on installed dimensions, not just the nominal label on the schedule:
- Accessibility clearances
- Egress width
- Weather sealing

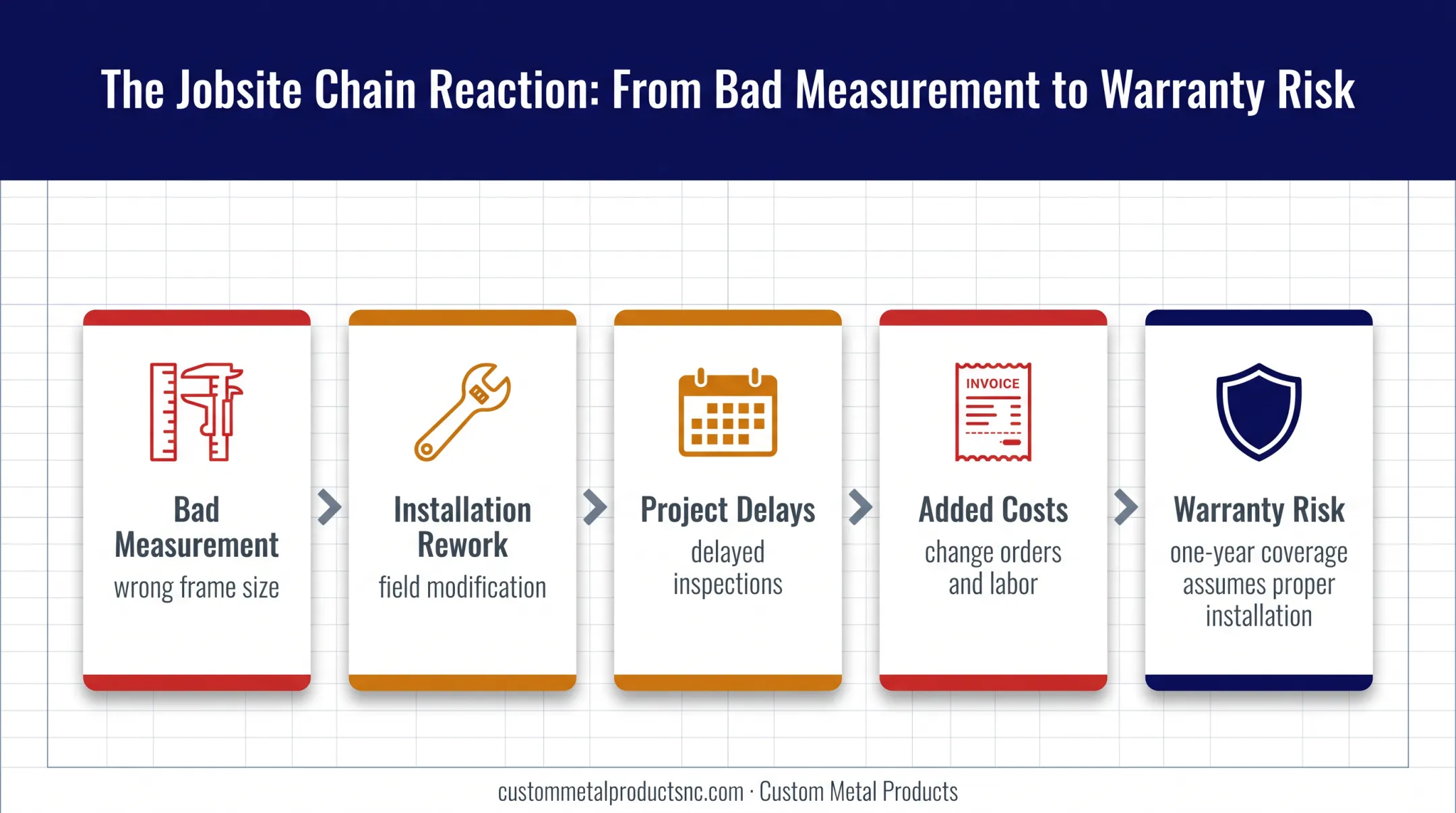

Schedule, Cost, and Warranty Consequences
Wrong measurements upstream mean rework downstream:
- Re-fabrication or field modification
- Delayed inspections
- Replacement hardware and change orders
- Additional labor hours
Field-modified rated or reinforced frames can also affect the manufacturer's warranty coverage. Custom Metal Products backs its hollow metal doors with a one-year warranty against defects in workmanship, but that coverage assumes the product was installed and stored according to the manufacturer's instructions, not altered on site to fit a bad measurement.
Common Misinterpretations of Standard Door Frame Sizes
A handful of assumptions cause most frame-sizing errors on commercial jobs:
- Treating nominal size as clear opening. A "3-0" door isn't a guaranteed 36-inch clear passage once stops and hinges are factored in.
- Applying one rough-opening allowance to every frame. Face width, frame type, and wall condition all change the required allowance.
- Measuring over trim or unfinished surfaces. This misses the actual structural or finished dimension you need.
- Assuming a "2x4 wall" sets the jamb depth. Sheathing, drywall, masonry, and tile all add to that number.
- Selecting a frame before confirming handing, hardware, and rating. These details change the frame's reinforcement and preparation, not just its size.
- Applying residential sizing logic to commercial hollow metal. The two systems are specified differently and shouldn't be treated as interchangeable.
Conclusion
Standard door frame sizes are a coordinated set of dimensions. Nominal door size, frame opening, clear opening, rough opening, jamb depth, and wall assembly all have to line up for a door to install and operate correctly.
Accurate field measurements, a coordinated door and hardware schedule, and manufacturer-specific data keep openings on track and reduce rework after delivery.
For unusual openings, custom hollow metal requirements, fire-rated assemblies, or tight delivery windows, an early technical review beats discovering the mismatch on install day.
Frequently Asked Questions
How wide should the rough opening be for a door?
There is no single industry-wide rough opening allowance. Width depends on the door, frame type, and wall construction, so use the figure in the approved product's installation instructions before framing.
Are doors labeled 32 or 36 inches actually the stated width?
No. The label is the nominal door size, not the slab width or clear passage. Stops, hinges, and frame construction trim the usable opening slightly below the labeled width.
What are the standard sizes of door frames?
Frames are usually ordered to common nominal door sizes such as 2'6", 2'8", 3'0", and 3'6" wide, with 6'8" or 7'0" heights. Final frame dimensions still depend on jamb depth, frame type, and manufacturer—confirm against the product you order.
What is a standard commercial door size?
A frequently scheduled commercial size is 3'0" × 7'0", but the right size still depends on occupancy, accessibility, and hardware. A common schedule size is not automatically the code-required size for every opening.
Is my door jamb 2x4 or 2x6?
Stud size alone does not set jamb depth. Choose depth from the finished wall assembly, including sheathing, drywall, masonry, or tile, then confirm the matching jamb.
