Introduction
A commercial opening does more than swing shut. It's a thermal boundary between conditioned and unconditioned space, and how well it holds that line comes down to one number: U-factor.
Many architects, distributors, and installers still confuse a door's insulation-core rating with its actual assembly performance. That gap matters. According to the U.S. Department of Energy, U-factor measures the rate of nonsolar heat flow through an assembly, meaning a lower number always signals better resistance to heat transfer.
This article breaks down what U-factor actually measures in steel and hollow metal doors, what pushes the number up or down in the field, how ratings get tested and verified, and why U-factor and R-value aren't interchangeable.
Key Takeaways
- Lower U-factor means less heat transfer through a door assembly — but "low" depends on climate and code.
- Whole-assembly ratings (door, frame, seals, glazing) beat core-only or center-of-panel figures.
- Steel conductivity, insulation type, thermal breaks, and installation quality all shift real-world performance.
- No universal "good" U-factor exists across door categories; compare like-for-like tested values.
- R-value and U-factor measure different properties; don't convert one into the other without checking test scope.
What U-Factor Represents in Steel Doors
U-factor expresses the rate of heat flow through a complete door assembly per unit of area and temperature difference. In U.S. technical documentation, that rate is shown in Btu/(h·ft²·°F); always match the unit string on the governing test report.
A lower U-factor means less heat moves through the assembly. A higher figure means the opening loses or gains heat faster—and that direction is what specs and energy models actually use.

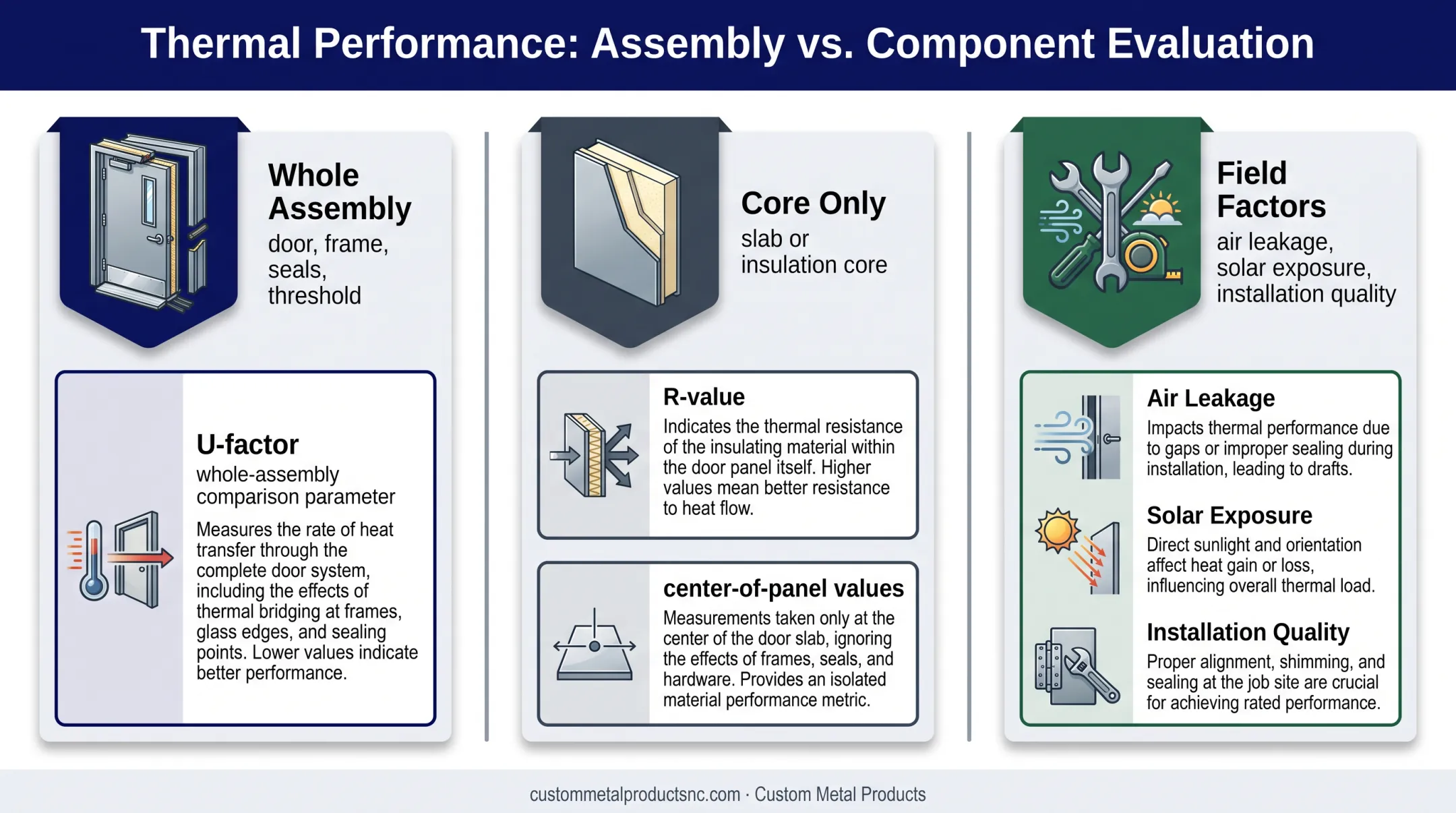

U-Factor vs. R-Value vs. Center-of-Panel Values
These terms get used loosely, and that causes real specification errors.
- U-factor measures heat transmittance through the whole tested assembly.
- R-value measures resistance, and is the mathematical inverse of U (U = 1/R) only when both describe the same thermal boundary.
- Center-of-panel values isolate the door slab or insulation core alone, ignoring the frame, seals, and edge construction.
A polystyrene-core door may show a manufacturer-published R-factor near 6.87 (about U-0.146) in Custom Metal Products' PH Series construction data. That figure is strong for the core alone—and it is approximate performance data, not a certified whole-assembly result that includes frame and seals.
Why Assembly-Level Testing Matters for Steel
Steel is strong and durable, but it's also conductive. An insulated core can perform beautifully in isolation and still lose ground once you factor in steel skins, stiffeners, and an uninsulated frame. Treat published U-factor as a comparison and design parameter, then read it next to air-leakage data, weatherstripping, solar exposure, and installation quality before you call any opening efficient.
Factors That Influence U-Factor in Real-World Operation
A declared U-factor comes from a laboratory. Field performance comes from everything else.
Assembly components that shape the rating:
- Steel face gauge and stiffener pattern (Custom Metal Products' SB Series, for example, uses 22-gauge hat-shaped stiffeners spot-welded six inches on center)
- Core material: polystyrene, polyurethane, or mineral wool batt insulation between stiffeners
- Thermal breaks in the frame, which interrupt the direct steel-to-steel conductive path
- Glazing, louvers, and hardware penetrations through the slab
- Threshold design and perimeter seal condition
The Steel Door Institute notes that thermal-break frames interrupt the conductive path between exterior and interior steel. That's one reason two doors with identical cores can still test differently once the frame is included.
Where Installation Enters the Picture
Laboratory hot-box testing, per SDI 113 procedure, seals the specimen against air leakage before measuring conductive heat transfer. That's useful for isolating the assembly's design performance. A pristine lab number still won't capture:
- Gasket wear from years of daily traffic
- Misaligned hinges that compress weatherstripping unevenly
- Threshold gaps from settling or poor shimming
- Field damage to seals or door edges during construction
Climate and Use Patterns
A door separating a loading dock from unconditioned storage behaves nothing like one separating a lobby from a Minnesota winter. Orientation, indoor-outdoor temperature swing, and how often the door cycles open all affect the practical thermal load, even though none of those factors change the tested rating printed on the label.
Range and Key Technical Properties of U-Factor
There is no single U-factor that fits every steel door. Performance depends on the tested assembly design, boundary conditions, and the environment where the door will operate.
Nominal Operating Range

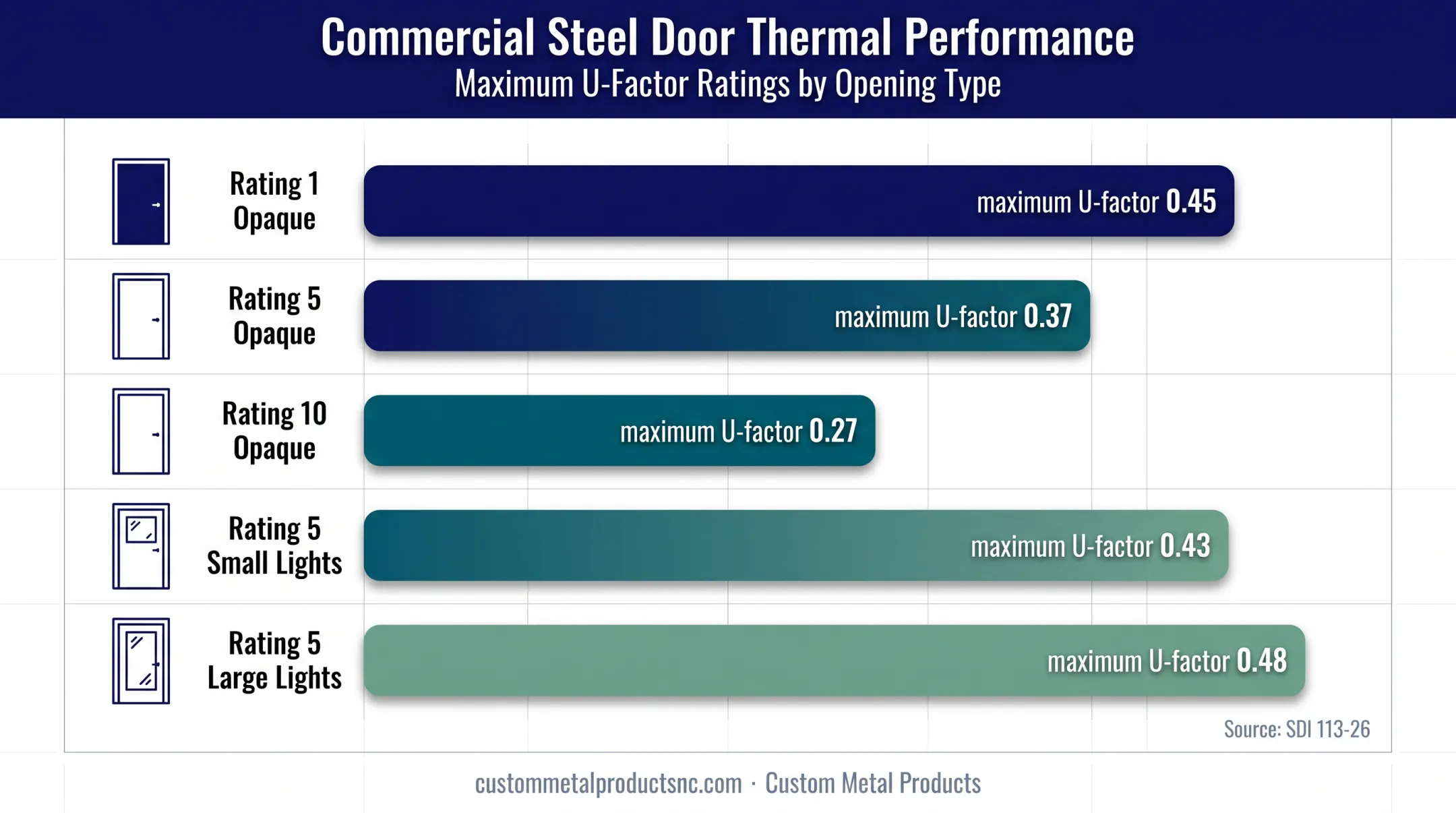

SDI 113-26 sets classification ceilings for operable steel door-and-frame assemblies, tested as a complete unit including hardware and any glazing:
| Door Configuration (SDI Rating) | Maximum Assembly U-factor |
|---|---|
| Flush/opaque, Rating 1 | 0.45 |
| Flush/opaque, Rating 5 | 0.37 |
| Flush/opaque, Rating 10 | 0.27 |
| With lights, Rating 5 (≤775 in² glazing) | 0.43 |
| With lights, Rating 5 (>775 in² glazing) | 0.48 |
These are classification ceilings from SDI 113-26, not a population average — an assembly can test well below its rating's maximum.
For comparison, Custom Metal Products' internal construction documentation lists approximate performance figures for its own product lines:
- PH Series (polystyrene core, 18-gauge skins): U-factor ≈ 0.146
- SB Series (steel-stiffened core, R-11 batt insulation): U-factor ≈ 0.855
Both are manufacturer-published as approximate performance data, not certified assembly test results. The gap still shows how insulation type and steel stiffener density change outcomes dramatically, even within the same door category.
Allowable Tolerance and Boundary Limits
Published ratings depend heavily on how they were tested. SDI 113 standard openings assume a single door at 3 ft by 7 ft or a pair at 6 ft by 7 ft, tested vertically with no solar gain or air-leakage effects included.
Keep these distinctions clear:
- A tested rating comes from physical hot-box measurement.
- A calculated or simulated value comes from modeling software following a defined method.
- A code-required maximum is a compliance ceiling, not a performance target.
Never borrow a U-factor from a rolling door, garage door, or residential entry door for a commercial hollow metal specification. ANSI/DASMA 105 (used for sectional garage doors) applies different boundary conditions than SDI 113 for swinging steel doors, so the numbers are not comparable.
Safe Operating Margin
Designers often specify better than the code minimum to buffer against aging seals, climate variability, or future building-use changes. That safety margin has a cost. Chasing a lower U-factor typically brings:
- Thicker insulation cores or added steel gauge
- Thermal-break frame hardware
- Higher material and fabrication cost
- Longer lead times for non-stock configurations
- Added door weight, which can affect hardware selection
Key Technical Properties
U-factor isn't a fixed property of "steel" — it shifts with opening size, edge detailing, frame design, and seal condition. It's also an assembly interaction, not a single-component number: the slab, frame, threshold, hardware, and air-leakage pathways all work together.
Specifiers often miss this point: improving U-factor does not automatically improve fire resistance, acoustics, or security. Each performance property—thermal, acoustic (STC), and fire rating—needs its own documentation. A PH Series door, for instance, carries a separate STC 32 acoustic rating alongside its thermal figure; one does not guarantee the other.
How U-Factor Is Specified, Measured, and Validated
Before approving any door assembly, a project team needs documentation that answers the thermal question being asked.
Specification and Documentation
Start by pinning down the exact configuration before comparing any ratings:
- Door category (swinging hollow metal, rolling, sectional)
- Core type, gauge, and insulation
- Frame profile and whether it includes a thermal break
- Threshold, seal type, and glazing (if any)
- Installation condition relative to the surrounding wall
Then request the supporting paperwork: manufacturer data sheets, test reports, UL or NAAMM/HMMA certification documents, and the applicable energy-code reference for your climate zone. Make sure the source states its test method and which components were included in the boundary.
Measurement and Verification Methods

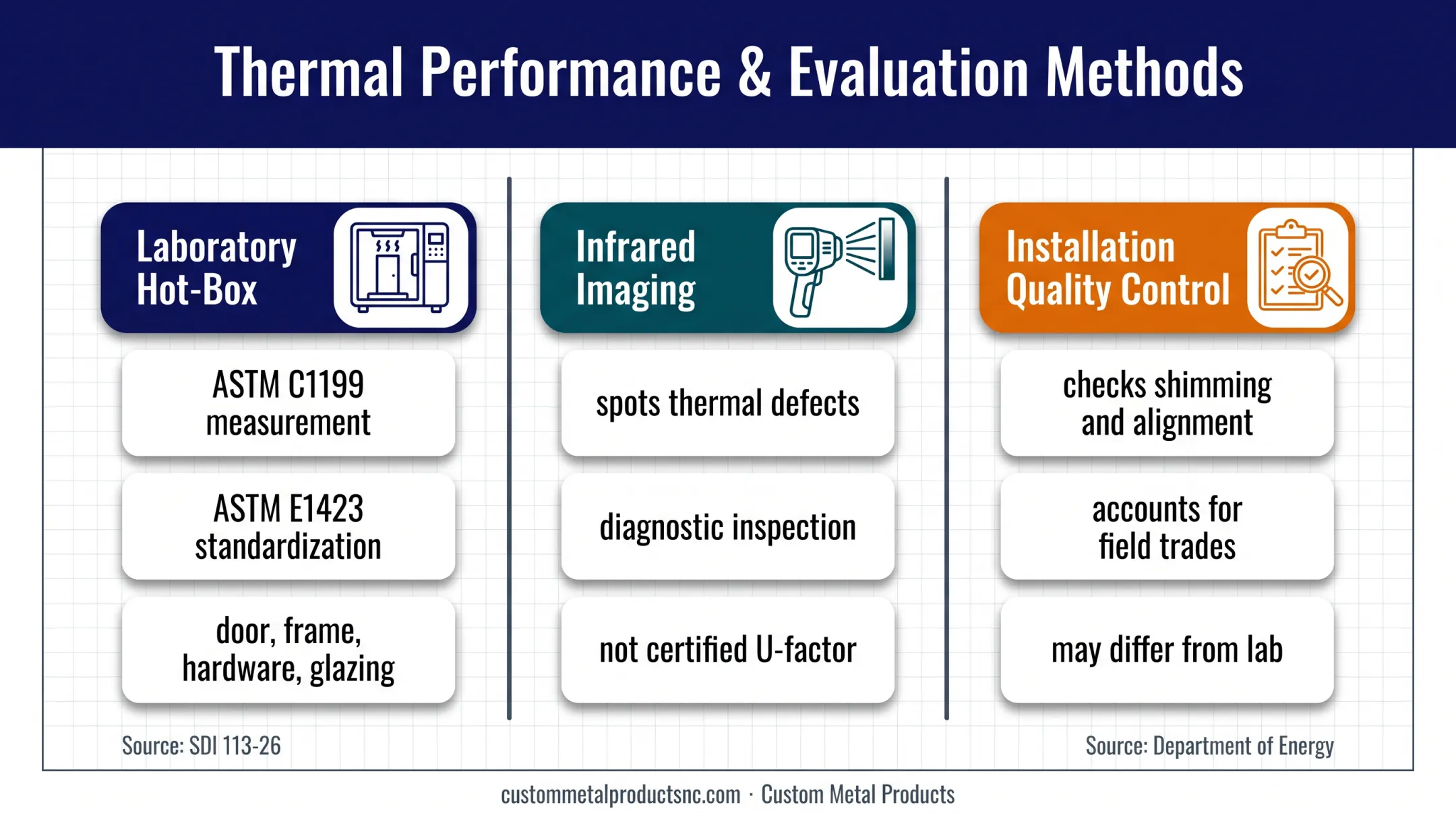

Commercial steel door assemblies are typically evaluated using ASTM C1199 hot-box measurement standardized under ASTM E1423, as referenced in SDI 113-26. This method tests the door, frame, hardware, and any glazing as one operable unit.
Field infrared imaging is useful for spotting thermal defects and air leaks after installation, but the Department of Energy is clear that thermographic inspection is diagnostic, not a substitute for a certified assembly U-factor. Don't confuse a surface-temperature scan with a lab-tested rating.
A manufacturer's published U-factor reflects a controlled lab specimen. An on-site opening—affected by shimming, alignment, and field trades—may not match it exactly. Installation quality control matters as much as product selection.
Practical Specification Checklist
Before signing off on a door assembly, confirm:
- The required U-factor or energy-performance target for the project's climate zone
- Whether the opening separates conditioned from unconditioned space
- Fire-rating requirements and how they interact with thermal specs
- Air-leakage expectations (a separate metric from U-factor)
- What documentation the authority having jurisdiction will accept
Thermal requirements rarely exist in isolation. Coordinate them with dimensions, hardware, and fire-rating needs long before fabrication starts.
Custom Metal Products' sales and engineering teams work with distributors and commercial customers to evaluate custom hollow metal door and frame configurations and pull the product documentation for a specific opening—not a generic figure applied project-wide.
Implications and Common Misinterpretations of U-Factor
Specifying or installing outside the intended performance range has real consequences: higher HVAC load, comfort complaints near the opening, and condensation risk on interior metal surfaces. Condensation shows up when a steel frame runs cold enough to drop below the indoor dew point.

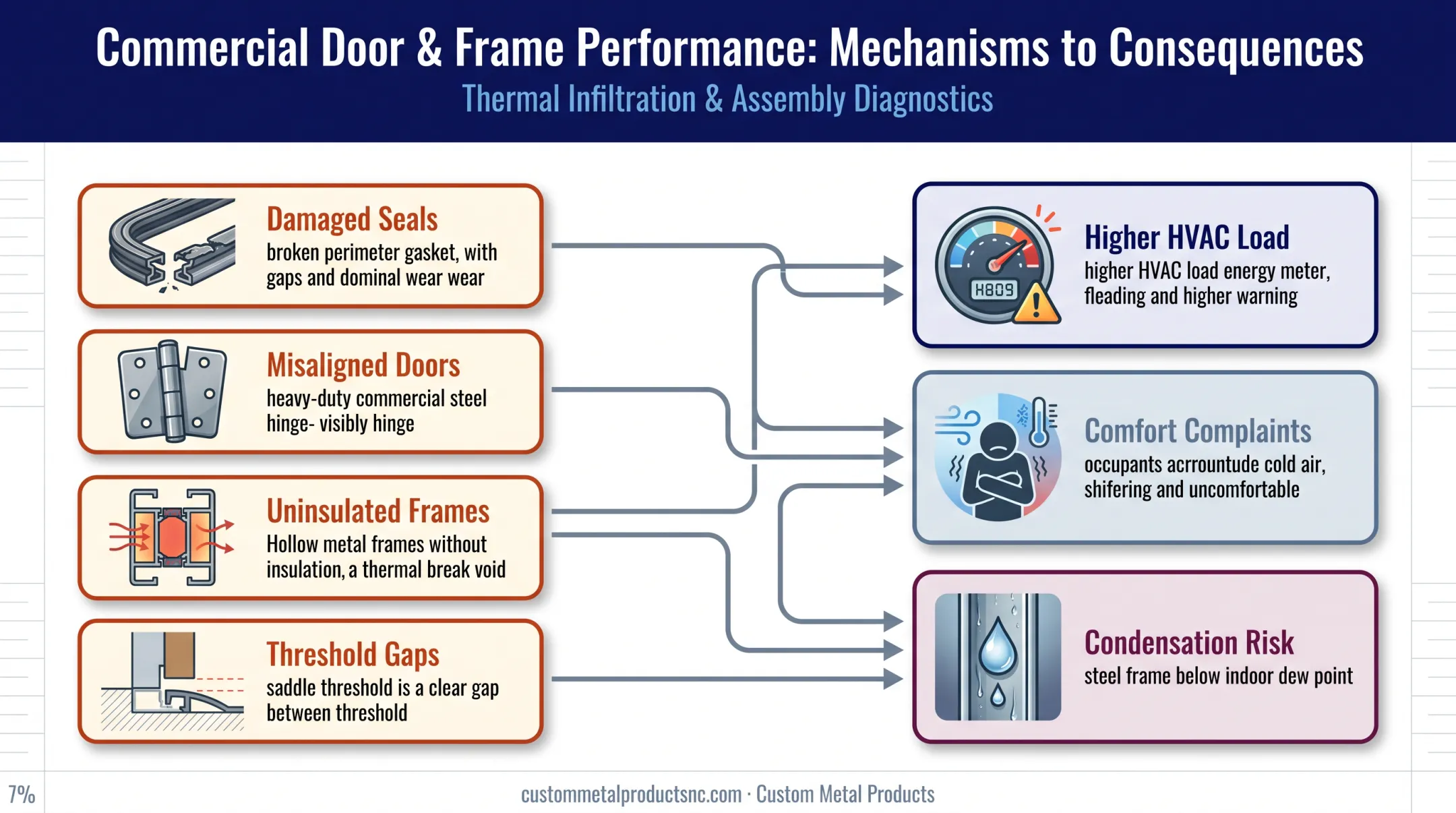

Common failure mechanisms:
- Compressed or damaged perimeter seals
- Misaligned doors that break contact at the threshold
- Uninsulated frames creating a conductive bridge around an insulated slab
- Gaps at thresholds or perimeter joints from poor installation
Substituting an assembly that doesn't match the documented specification can also create downstream problems: energy-code compliance failures, inspection delays, or warranty disputes. Custom Metal Products' standard warranty covers defects in workmanship and materials for one year from invoice. That coverage assumes proper installation for the door's intended purpose; it doesn't extend to performance gaps caused by field modification or improper fit.
Four Misunderstandings Worth Correcting
- A high insulation-core R-value doesn't prove a low whole-door U-factor. The SB Series (R-11 batt) lists about U-0.855, versus the foam-core PH Series at 0.146. Core insulation alone doesn't set assembly performance.
- Nominal U-factor figures aren't universal limits. A rating from one manufacturer's product line, tested under one method, shouldn't be applied to a different door category without checking test conditions.
- Insulation doesn't fix air leakage. Thermal bridging, frame losses, and installation gaps are separate problems that a better core won't solve.
- Chasing an extremely low U-factor has costs. Weight, hardware compatibility, fire-rating limits, and lead time all move when you push thermal performance to the extreme end.
Conclusion
U-factor is a governing performance parameter for the whole opening, not a passive trait of steel or insulation on its own. Reliable specification means:
- Comparing tested values from compatible door categories
- Understanding what boundary conditions were used in testing
- Evaluating the slab, frame, seals, threshold, and installation together, not any one piece in isolation
If your project has specific thermal targets tied to climate zone or energy code, loop in a manufacturer early. Coordinating U-factor with fire ratings, security requirements, dimensions, and delivery schedule up front avoids costly rework later.
Custom Metal Products' sales and engineering teams work through those requirements with distributors and commercial customers before fabrication begins.
Frequently Asked Questions
What is a good U-factor for an insulated metal door?
There's no single "good" number; it depends on door type, climate zone, applicable energy code, and project goals. Always compare tested whole-assembly documentation rather than chasing a generic target.
What is the typical U-factor range for insulated metal doors?
For commercial swinging steel door assemblies, SDI 113-26 sets classification ceilings from 0.27 to 0.45 depending on configuration and glazing. Rolling, sectional, and garage doors use entirely different test standards, so their figures shouldn't be mixed with swinging-door ratings.
What is the U-factor of an insulated garage door?
It varies by product, construction, size, and seal design, and is tested under a separate standard (ANSI/DASMA 105) than swinging steel doors. Always use the manufacturer's whole-assembly rating rather than a core or R-value figure.
Can hollow metal or steel doors be insulated to improve their U-factor?
Yes. Insulation type, thermal breaks, improved edge construction, and better perimeter seals can all improve thermal performance. The final result still needs to be verified for the complete assembly, not just the core.
What is the R-value of an insulated metal door?
R-value may describe just the core or a single component, while U-factor describes heat transfer through the full tested assembly. Don't convert or compare the two figures without confirming they cover the same test scope.
