Recessed Drywall Door Frames

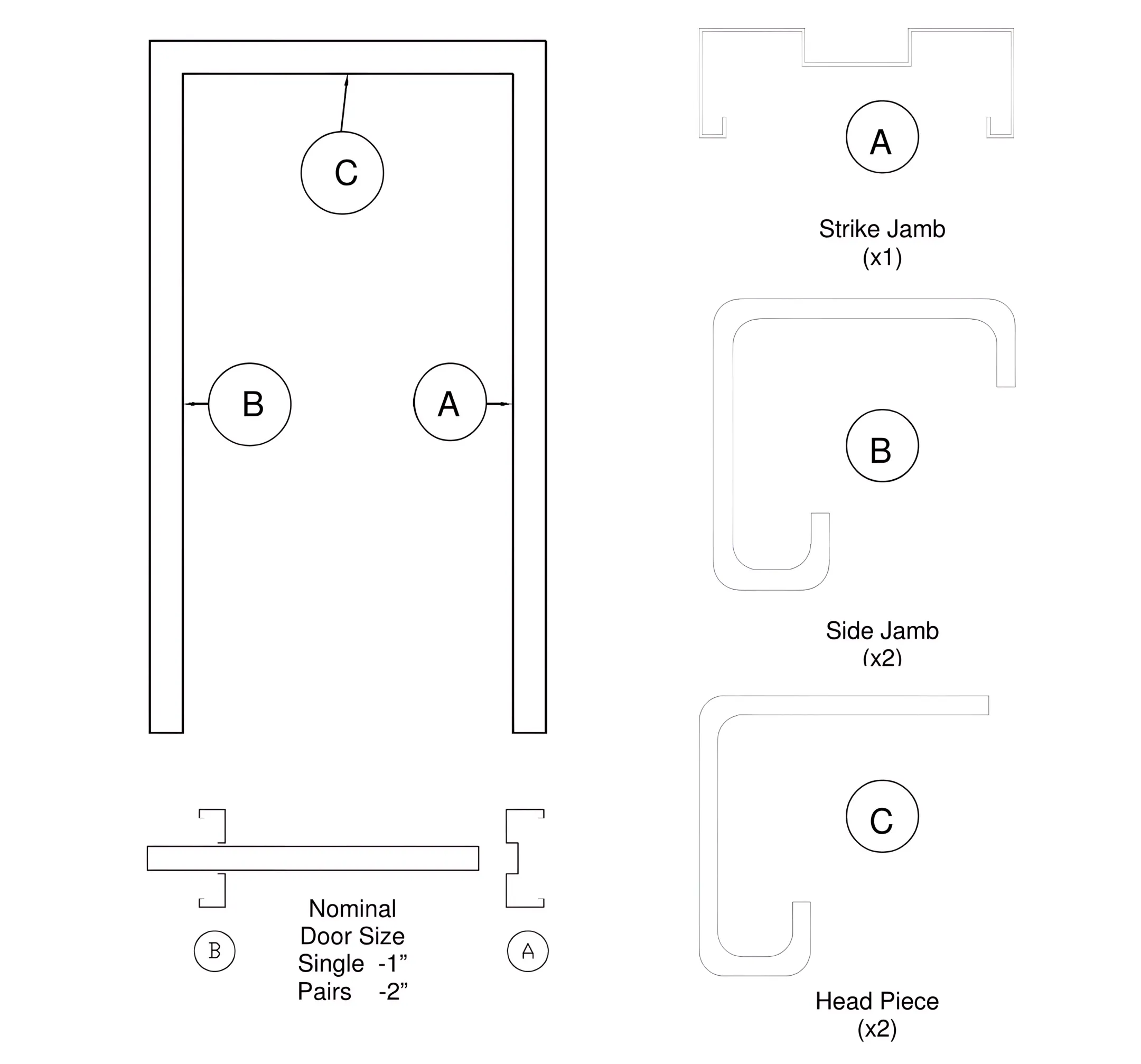

The frame around a door is commonly called a door frame or door jamb assembly. It supports the door, hinges and hardware while forming the perimeter of the opening. Commercial hollow metal frames may be welded, cut-and-notch or supplied for specialty applications such as pocket doors, double egress, sidelites, transoms and borrowed-light openings.

Available assembly options include fully welded and cut-and-notch, also called KD, frames. The appropriate choice depends on project specifications, delivery requirements, installation conditions and whether the frame needs a specialised configuration. Custom Metal Products also offers standard and custom profiles for commercial openings.

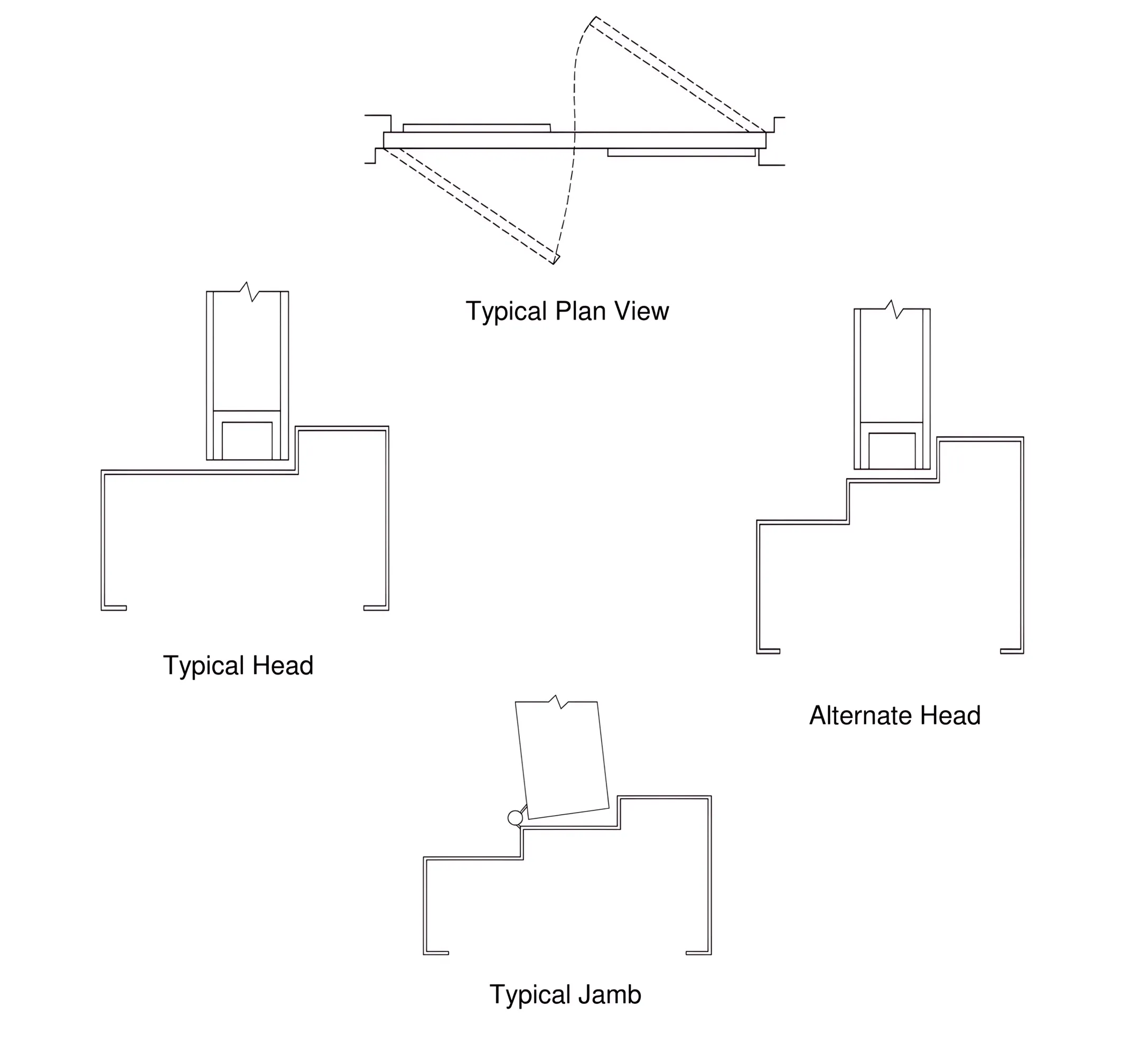

Yes. The product range includes UL-labeled fire-rated hollow metal doors and frames for commercial fire-rated and life-safety applications. Fire-rated openings should be specified according to the project requirements, the complete opening assembly and applicable code documentation. Product selection can also include sidelite, transom and double-egress configurations where available.

Gauge options vary by product and include configurations from 18 gauge through 12 gauge. Specific availability depends on the selected frame type, assembly method, application and configuration. The product range includes 16 gauge to 12 gauge options for several frame products, while the UL fire-rated door and frame offering includes 18 gauge to 12 gauge choices.

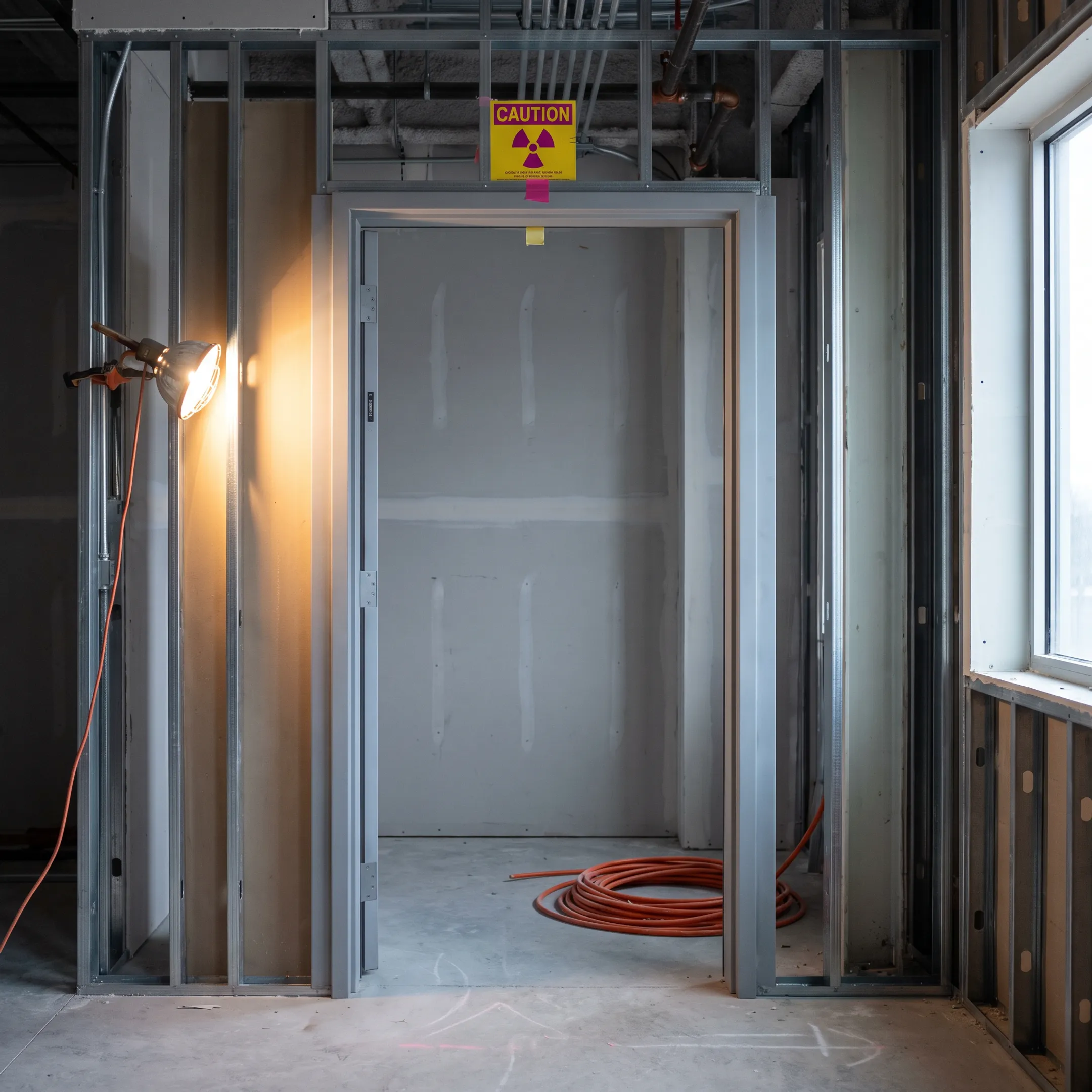

Yes. Lead-lined frames are available for healthcare and radiation-shielding applications, including medical facilities, X-ray rooms and CT scan installations. These frames are offered in standard or custom profiles and may be supplied fully finished or cut-and-notch. Project teams should provide shielding and opening requirements for accurate selection.

Yes. Engineered opening assemblies include sidelite, transom and window frame configurations, with glazed or paneled options. These assemblies are available in standard and custom profiles and may support commercial and fire-rated opening requirements. The final configuration should reflect the glazing, panel, opening and project specification details.
